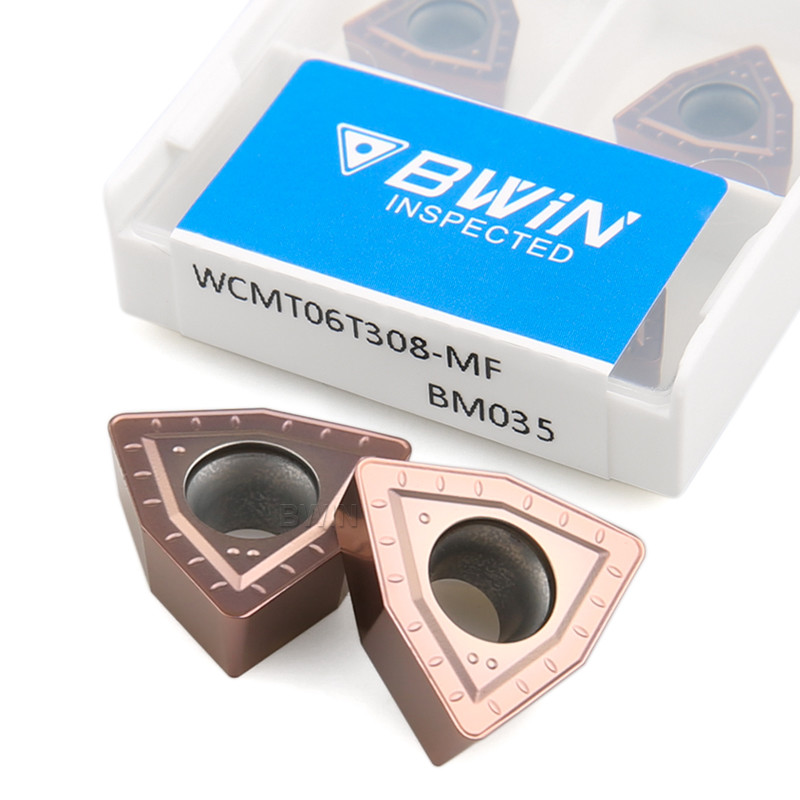

Wcmt 050308 Cnc Carbide Inserts U Drill Indexable Cutting Stainless Bits
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | Wcmt06t308 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | Wcmt Carbide U Drill Insert | Material: | Tungsten Indexable Drilling Insert |
|---|---|---|---|
| Workpiece: | Steel/Stainless Steel | Usage: | CNC |
| Color: | Fuchsia/Black | Coating: | PVD CVD |
| Hardness: | HRC40-60 | Feature: | Strong Universality |
| Application: | CNC Drilling Insert | Package: | 10pcs/Box |
| High Light: | Wcmt 050308 Cnc Carbide Inserts,Cnc Carbide Inserts U Drill,Indexable Cutting Inserts Stainless Bits |
||
Product Description
Wcmt 050308 06t308 080412 Cnc Carbide Inserts U Drill Indexable Cutting Stainless Bits
Quick Detail:
- High quality materials
- High efficiency earthquake resistance
- Stable performance
- Hardening by quenching
- Smooth chip removal
- Easy milling
Description:
- The cnc carbide inserts made of cemented carbide raw materials commonly used for steel, stainless steel and cast iron, combined with excellent heat resistance and damage resistance cemented carbide matrix, and has the characteristics of high toughness, high wear resistance and high temperature resistance. It can adapt to different working conditions, and can machine plane holes, inclined holes, semicircle holes, overlapping holes, concave holes, pre drilled holes, etc; It is widely used for processing low carbon steel, mild steel, high carbon steel, alloy tool steel, stainless steel and heat-resistant metal materials.
Specifications:
| Brand | BWIN |
| Model | Wcmt050308 Wcmt06t308 Wcmt080412 |
| Color | Fuchsia/Black |
| Workpiece | Steel/Stainless steel |
| Type | U Drill CNC Carbide Inserts |
| Material | Tungsten Carbide U Drilling Insert |
| Processing | Medium Cutting |
| Feature | High quality materials |
| High efficiency earthquake resistance | |
| Stable performance | |
| Smooth chip removal | |
| Hardening by quenching | |
| Standard | ISO |
| Quantity | 10pcs/box |
| Weight | 0.015kg |
| Package | Plastic Box |
| Customized | OEM, ODM |
Lead Time:
| antity(pieces) | 1 - 3000 | >3000 |
| Lead time (days) | 7 | To be negotiated |
Notice:
- The cnc carbide inserts shall not be collided or dropped on the ground and must be handled with care.
- Before installing the cnc carbide inserts, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
- After installation, it is necessary to confirm whether the central hole of the cnc carbide inserts are firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
- When using, do not exceed the specified high speed
- When the cnc carbide inserts are not used, hang the blade vertically on the dry shelf.
Applications:
Our cnc carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
Advantage
1. Distribution and wholesale, complete in variety
Large quantity is preferred, product specifications are complete, and the pattern is subdivided into processing technology levels to meet your processing needs for different angles and different workpieces;
2. Carefully selected materials with reliable quality
Every detail has been strictly checked, and better products have been meticulously created. They are cheap, stable, durable and have a long service life
3. Sufficient supply and large inventory
We have our own factory, with a large amount of inventory to provide you with sufficient supply, so you don't need to worry about the shortage crisis, so that you can use it with confidence. Support customization, large quantity and price can be discussed, welcome to consult.
4. After sales service
We have a complete after-sales system. Cooperation is not the end, it is the beginning. If you have after-sales problems, please contact us at any time, and we will solve them for you as soon as possible.
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material.
Increase cutting speed,Increase rake angle,Select small sticking force.
