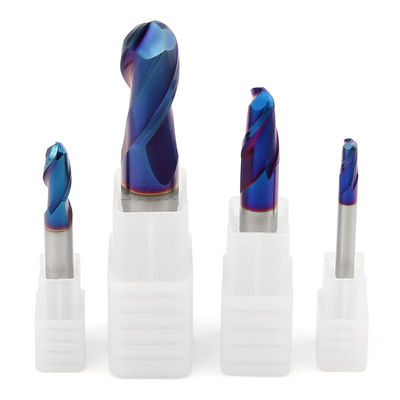

4mm Carbide End Mill 2mm Ball Nose End Mill 2F 2 Flutes Machining Tool

4mm Carbide End Mill 2mm Ball Nose End Mill 2F 2 Flutes Machining Tool

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: R4*16*d8*60L

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information
Product Name: HRC65 Carbide Ball Nose End Mill Model: 2F 4mm 3mm 18mm Ballnose Endmills
Material: Solid Bullnose Machining Tool Workpiece: Hardened Steel
Usage: CNC Coating: AlTiSiN
HRC: HRC65 Feature: High Finish
Application: CNC Milling Tool Package: 1pcs/Box
High Light:

2mm Ball Nose End Mill 2 Flutes

,

Carbide End Mill 4mm

,

2 Flutes Carbide End Mill

Product Description

HRC65 Carbide Ball Nose End Mill 18mm Ballnose Endmills 4mm 3mm 2F 2 Flutes Machining Tool



Characteristic:​

  • Imported tungsten steel bars
  • Nano series coating
  • Fine grinding chip removal groove
  • Large core diameter design
  • Chamfer design of universal round handle
  • Support non-standard customization



Description:



  • The carbide end mill is made of fine grain high-quality bar material, processed with imported five axis tool grinder, and strictly adopts tool inspection standards to ensure the consistency of tool size and runout. NC/Blue nano coating is a universal coating with high temperature resistance and wear resistance, hardness and toughness. Suitable for processing pre hardened steel, alloy steel, cast iron, stainless steel, hardened steel, ductile iron and other materials with HRC63 ° or below; After the tool is grinded, the particles adhered to the tool are completely removed by passivation technology, and the edge is passivated, which makes it easier to process high hard materials, prevent the blade from collapsing, and prolong the service life of the tool.



Milling Parameters:

HRC45 Carbide End Mill Tool length fz&v
Short 1
Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material

Strength
N/mm²


Hardness

HRC

 Cooling
Air Dry cutting Lubricating fluid
P PI P1.1 Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700 √ √ √
P1.2 quenched and tempered steel <1200 √ √ √
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900 √ √ √
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400 √   √
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900 √ √ √
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500 √   √
M M1 M1.1 austenitic stainless steel ＜700 √   √
M1.2 Ferritic/austenitic (bicrystal) stainless steel ＜1000     √
M2 M2.1 Austenitic stainless cast steel ＜700 √   √
M3 M3.1 Ferritic/austenitic (bicrystal) stainless cast steel ＜1000     √
K K1 K1.1 Flake graphite cast iron (gray cast iron), GJL ＜300 √ √ √
K2 K2.1 Ductile iron, GJS ＜500 √ √ √
K2.2 Ductile iron, GJS 500-800 √ √ √
K2.3 Ductile iron, GJS ＞800 √ √ √
K3 K3.1 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＜500 √ √ √
K3.2 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＞500 √ √ √
H H1 H1.1 Hardened steel/cast steel 45-55 √ √ √
H1.2 Hardened steel/cast steel 55-64 √ √ √
H2 H2.1 Wear resistant cast iron/chilled cast iron, GJN   √   √



Finish
Vc
(m/min)		                                                fz(mm/tooth)
                                                   Diameter
2 4 6 8 10 12 14 16 18 20
P P1 P1.1 332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
P1.2 272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
P2 P2.1 304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
P2.2 212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
P3 P3.1 196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
P3.2 168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161
P4 P4.1 136 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.116 0.124
P5 P5.1 204 0.027 0.048 0.068 0.088 0.106 0.124 0.140 0.155 0.168 0.18
P6 P6.1 136 0.013 0.023 0.033 0.042 0.051 0.06 0.068 0.075 0.081 0.087
M M1 M1.1 92 0.016 0.029 0.041 0.053 0.064 0.075 0.0845 0.094 0.101 0.108
M1.2 84 0.014 0.024 0.034 0.044 0.053 0.062 0.0695 0.077 0.0835 0.09
M2 M2.1 100 0.018 0.031 0.045 0.057 0.07 0.081 0.0915 0.102 0.11 0.118
M3 M3.1 92 0.014 0.025 0.035 0.045 0.055 0.064 0.072 0.08 0.0865 0.093
K K1 K1.1 364 0.047 0.083 0.117 0.151 0.183 0.214 0.2405 0.267 0.149 0.031
K2 K2.1 332 0.04 0.07 0.1 0.128 0.156 0.182 0.2045 0.227 0.245 0.263
K2.2 272 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
K2.3 152 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.1155 0.124
K3 K3.1 240 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
K3.2 228 0.028 0.05 0.07 0.091 0.011 0.128 0.144 0.16 0.173 0.186
H H1 H1.1 92   0.021 0.029 0.038 0.046 0.053 0.06 0.067 0.072 0.077
H1.2
H2 H2.1

Note:
  • If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Specification Flute Radius Flute Length (C) Shank Radius Overall Length(L)
R0.5*2*d4*50L 0.5 2 4 50
R0.75*3*d4*50L 0.75 3 4 50
R1*4*d4*50L 1 4 4 50
R1.25*5*d4*50L 1.25 5 4 50
R1.5*6*d4*50L 1.5 6 4 50
R1.75*7*d4*50L 1.75 7 4 50
R2*8*d4*50L 2 8 4 50
R2.5*10*d5*50L 2.5 10 5 50
R3*12*d6*50L 3 12 6 50
R4*16*d8*60L 4 16 8 60
R5*20*d10*75L 5 20 10 75
R6*24*d12*100L 6 24 12 100
R7*28*d14*150L 7 28 14 150
R8*32*d16*100L 8 32 16 100
R9*36*d18*100L 9 36 18 100
R10*40*d20*100L 10 40 20 100


Instructions:

1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.



Applications:

Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.

Cnc Milling Cutter 6mm 3 4 Flute Tungsten Solid Carbide High Feed Endmill End Mill



FAQ

Q1: The surface of the workpiece is glossy, but the concavity and convexity are large

resolvent:

(1) Reduce the feed.

(2) The low number of cutting edges changes the high number of cutting edges to improve the surface fineness.



Q2: The chip is short and thin, but there are sticky chips

resolvent:

(1) Increase cutting speed.

(2) Change to wet type (using cutting fluid), and use it with vortex tube gun to reduce the tool temperature and avoid overheating.

(3) Perform minor rounding and passivation treatment.

(4) Change from up milling to down milling.

(5) Increase the feed rate or the cutting allowance.



Q3: There are transverse cuts

resolvent:

(1) Perform minor rounding and passivation treatment.

(2) Use water-insoluble cutting fluid.

(3) Change from forward milling to reverse milling.



Q4:The finishing size is too small

resolvent:

(1) Change from up milling to down milling.

(2) Reduce the cutting allowance.

(3) Replace the chuck or spring collet.

(4) Reduce the cutting depth of the end mill.

(5) Increase cutting speed.
