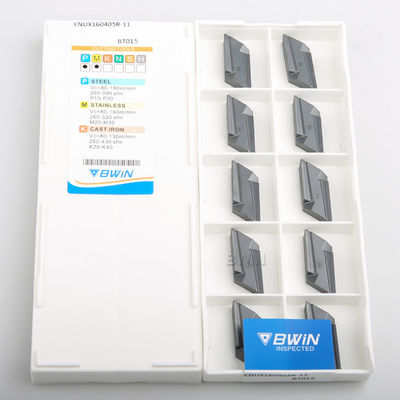

Carbide Lathe Insert Metal Cutting

Carbide Lathe Insert Metal Cutting

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: KNUX160405

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information

Product Name: KNUX Cnc Carbide Turning Insert Material: Tungsten Cnc Metal Cutting Tool
Workpiece: Steel/Cast Iron/Stainless Steel Usage: CNC Cutting
Color: Fuchsia/Yellow/Brown/Black Coating: PVD CVD
Hardness: HRC40-HRC60 Feature: Abrasion Resistance
Application: Turning Tool Package: 10pcs/Box
High Light:

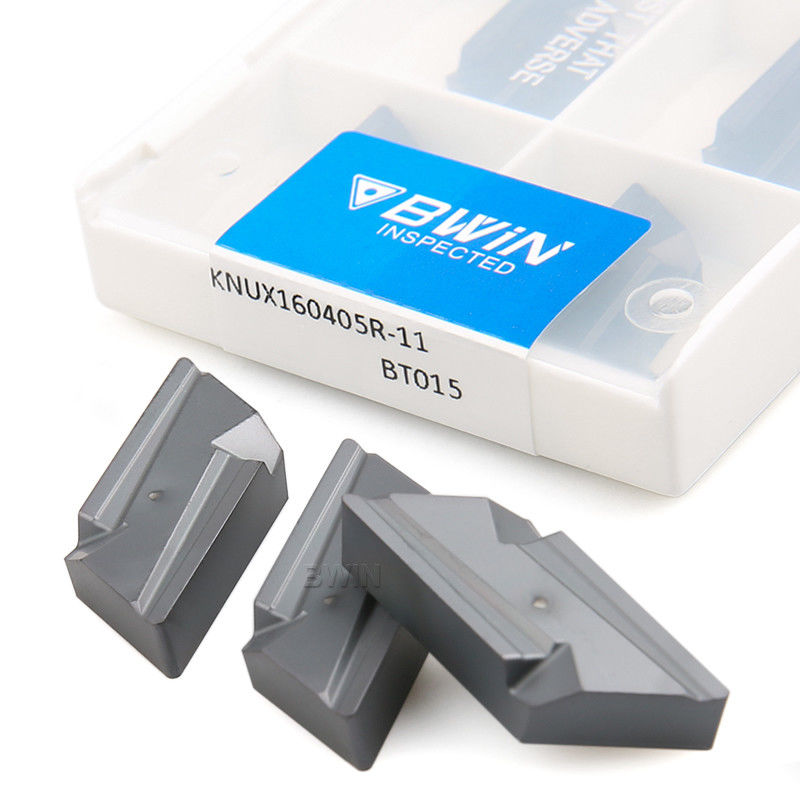

Knux 160405 Carbide Lathe Insert

,

Metal Cutting Solid Carbide Insert

,

Carbide Lathe Insert Metal Cutting

Product Description

Knux 160405 Turning Insert Stainless Tool Tungsten Solid Carbide Cnc Metal Cutting



Quick Detail:

  • High toughness
  • High finish
  • Sharp and durable
  • Smooth chip breaking
  • Low cutting resistance
  • Strong impact resistance



Description:

  • The carbide lathe insert is sintered from tungsten carbide and cobalt powder. The base material with strong deformation resistance and carbide with special crystal structure enable the tool to have high hardness, good toughness and high temperature resistance, making the wear resistance of the rear face of the tool stronger; The unique groove design can make the chip removal faster and more smooth, thus ensuring that the chip removal will not hang on the product surface; Sharp blade, high speed cutting without sticking, wear resistance and corrosion resistance; Different R angles meet different requirements for finish; Complete specifications, support non-standard customization



Specifications:​

Brand BWIN
Model KNUX160405L KNUX160405R
Color Fuchsia/Yellow/Brown/Black
Workpiece Steel/Cast iron/Stainless steel
Type CNC Carbide Lathe Insert
Material Tungsten Carbide Lathe Insert
Processing Type Medium Cutting
Feature High toughness
High finish
Sharp and durable
Smooth chip breaking

Strong impact resistance

Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized Support OEM, ODM



Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days)  7 To be negotiated



Notice:

  • The tungsten carbide lathe insert shall not be collided or dropped on the ground and must be handled with care.
  • Before installing the tungsten carbide lathe insert, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the carbide lathe insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the tungsten carbide lathe insert is not used, hang the blade vertically on the dry shelf.



Applications:

Our tungsten carbide lathe insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Cnc Tungsten Carbide Insert Cnmg 120404 120408 120412 Lathe Turning Cutting Tool



Advantages:

  • Hmported raw powder materials,
  • Have a peculiar gradient cobalt-rich on surface of the substrates which can ensure the inserts’ high performance when finishing the CVD coating.
  • The coating materials are MT-TiCN0-Al2O3 with thickness of 14μm, which have high abrasion resistance. After special management on the surface of the coating inserts, the internal stress and surface of coating were reduced while cutting resistance was also cut down.
  • Our BPS series grade can cutting steel and alloy steel from finish machining, to semi-finish and rough machining.

FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.

2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.

3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle

4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.

5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).

6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
