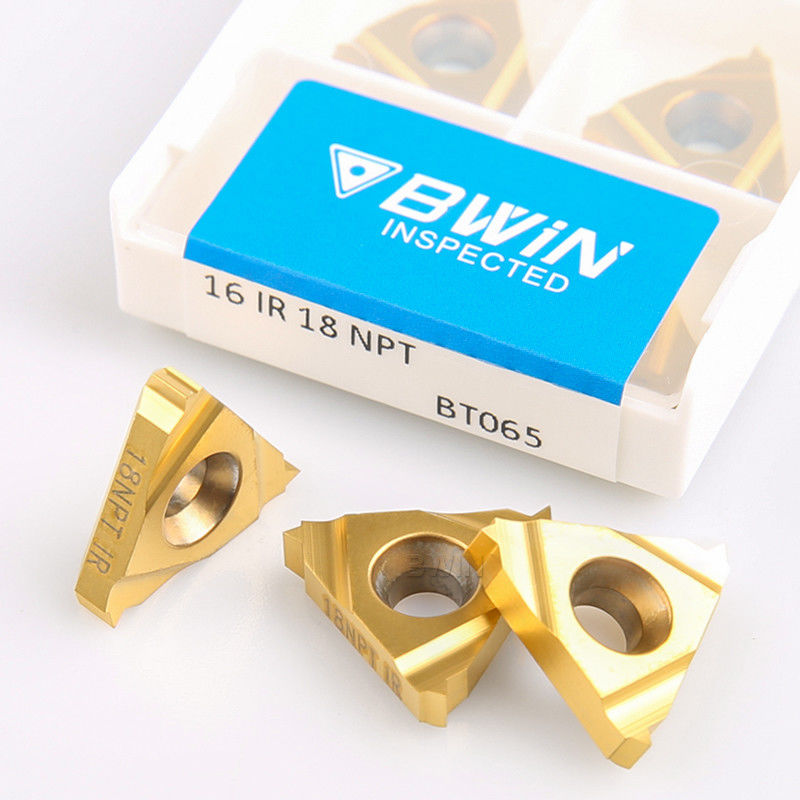

18NPT 11.5 16er Threading Insert Cutting Carbide For Whirling Cut Tool
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | 16ER 14NPT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | Carbide Threading Inserts | Material: | Cnc Carbide Whirling Cut Tool |
|---|---|---|---|
| Workpiece: | Stainless Steel/Steel/Cast Iron | Usage: | Lathe |
| Color: | Yellow/Black | Coating: | PVD/CVD |
| Hardness: | HRC40-HRC60 | Feature: | Good Thermal Hardness |
| Application: | CNC Machine Tool | Package: | 10pcs/Box |
| High Light: | 16er Threading Insert 18NPT,18NPT Thread Cutting Carbide Inserts,16er Threading Insert Whirling Cut Tool |
||
Product Description
Carbide Threading Inserts 16IR 16ER 18NPT 14 11.5 Whirling Tool Cut Lathe Metal
Quick Detail:
- Good thermal hardness
- Excellent wear resistance
- Low coefficient of thermal expansion
- Good thermal conductivity
- Smooth chip breaking
- High finish
Description:
- Excellent performance, refined nano matrix, and improved overall stability; Adopt imported coating to reduce surface friction and reduce cutting resistance; High cutting edge strength, high temperature resistance, thermal shock resistance, strong processing performance; The carbide threading insert is more sharp and shock resistant, and the chip breaking is smooth without sticking to the blade, which is not easy to collapse; Sharp cutting edge, multi angle blade is available, and the center edge and peripheral edge are both used to reduce the cost; The processing performance is strong, and the workpiece can reach the ideal finish.
Specifications:
| Brand | BWIN |
| Model | 16ER/16IR 14NPT |
| Color | Black/Yellow |
| Workpiece | Cast iron/Stainless steel/Steel |
| Type | Metal CNC Carbide Lathe Turning Tool |
| Material | Tungsten Carbide Threading Inserts |
| Processing Type | Medium Cutting |
| Feature | Good thermal hardness |
| Excellent wear resistance | |
| Low coefficient of thermal expansion | |
| Good thermal conductivity | |
| Smooth chip breaking | |
| Standard | ISO |
| Quantity | 10pcs/box |
| Weight | 0.015kg |
| Package | Plastic Box |
| Customized Support | OEM, ODM |
Lead Time:
| antity(pieces) | 1 - 3000 | >3000 |
| Lead time (days) | 7 | To be negotiated |
Notice:
- The carbide threading insert shall not be collided or dropped on the ground and must be handled with care.
- Before installing the carbide threading insert, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
- After installation, it is necessary to confirm whether the central hole of the carbide threading insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
- When using, do not exceed the specified high speed
- When the carbide threading insert is not used, hang the blade vertically on the dry shelf.
Applications:
Our carbide threading insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
Advantages:
1. Honest merchants, reasonable price and quality assurance
2. Large inventory, sufficient supply and high cost performance
3. Customer service responds in time and delivers goods quickly
4. Provide after-sale guarantee to make your after-sale service free
1. Rear cutter face wear: (This is a common practical form)
Influence: the workpiece size gradually changes or the surface light intensity decreases
Cause: The linear speed is too high, reaching the service life of the tool
Measures: Adjust the processing parameters, such as reducing the linear speed and using a blade with higher wear resistance
2. Blade breakage: (bad actual effect form)
Effect: sudden change of workpiece size or surface smoothness, resulting in burrs on the spark surface
Cause: Improper parameter setting, improper tool face material selection, poor workpiece rigidity, unstable blade clamping Measures: check whether the parameter setting is reasonable, and select the corresponding tool according to the workpiece material
3. Serious fracture: (very bad actual effect form)
Effect: sudden and unexpected occurrence, resulting in scrapping of tool handle materials or defective and scrapped workpieces
Cause: The processing parameters are set incorrectly, and the vibrating tool workpiece or blade is not installed in place
Measures: set reasonable parameters, reduce the feed rate and chip, select the corresponding processing blade, and strengthen the rigidity of the workpiece and blade
4. Chips:
Effect: the size of the workpiece is inconsistent, the surface finish is poor, and the workpiece surface is attached with fluff or burrs. Cause: the cutting speed is too low, the feed is too low, and the blade is not sharp enough
Measures: improve the cutting speed, and use blades with higher sharpness for feed rate
