12mm Tungsten Carbide Drill Bits Insert Cutter Cutting Tool For Cnc Machine

12mm Tungsten Carbide Drill Bits Insert Cutter Cutting Tool For Cnc Machine

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: WCMT050308

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information

Product Name: Wcmt 050308 U Drill Insert Material: Tungsten Indexable U Drilling Insert
Workpiece: Steel/Stainless Steel/Cast Iron Usage: CNC
Color: Fuchsia/Black Coating: PVD CVD
Hardness: HRC40-60 Feature: Reduce Friction
Application: CNC Drilling Inserts Package: 10pcs/Box
High Light:

12mm Tungsten Carbide Drill Bits

,

Tungsten Carbide Drill Insert 12mm

,

Tungsten Carbide Drill Insert Cutter Cutting Tool

Product Description

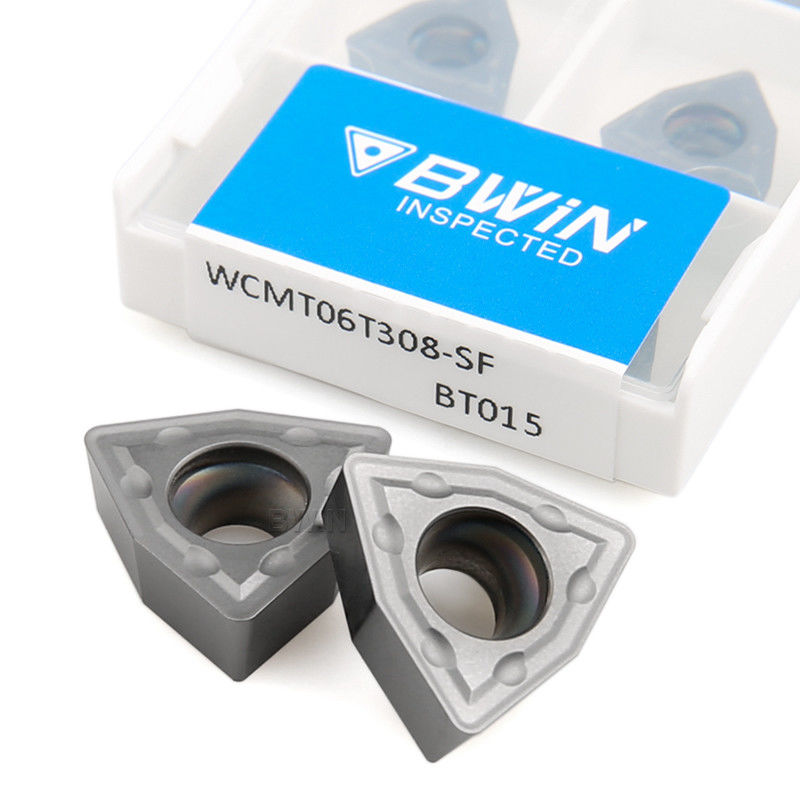

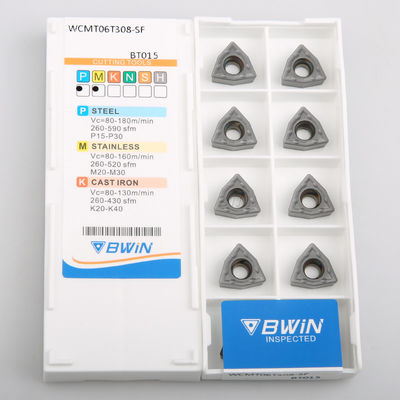

Wcmt 050308 U Drill Insert 12mm Cnc Machine Tungsten Carbide Drilling Cutter Cutting Tool



Quick Detail:

  • Sharp non stick U drill insert
  • High precision U drill insert
  • Reduce friction
  • Reduce loss
  • Longer service life



Description:

  • Careful selection of cemented carbide matrix ensures stable performance of the U drill insert itself and more efficient processing; Fine technology, high precision, no knife sticking during processing; The cutting edge band of the broken cutting groove is wide, which can reduce the cutting pressure and control the chip removal well; The PVD coating design can reduce the surface friction coefficient, enhance the sliding type, and effectively prevent the knife from sticking



Specifications:​

Brand BWIN
Model Wcmt050308 Wcmt06t308 Wcmt080412
Color Fuchsia/Black
Workpiece Steel/Stainless steel
Type U Drill CNC Carbide Inserts
Material Tungsten Carbide U Drilling Insert
Processing  Medium Cutting
Feature Sharp non stick U drill insert
High precision Udrill insert
Reduce friction
Reduce loss
Longer service life
Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized  OEM, ODM


Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days)       7 To be negotiated



Notice:

  • The cnc carbide U drill insert shall not be collided or dropped on the ground and must be handled with care.
  • Before installing the cnc carbide U drill insert , the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the cnc carbide U drill insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the cnc carbide U drill insert is not used, hang the blade vertically on the dry shelf.



Applications:

Our cnc U drill insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Spmg050204 Carbide Drilling Inserts Tungsten Indexable Cutter Tool Spmg 060204 Drill Insert



Advantage

1. Distribution and wholesale, complete in variety

Large quantity is preferred, product specifications are complete, and the pattern is subdivided into processing technology levels to meet your processing needs for different angles and different workpieces;

2. Carefully selected materials with reliable quality

Every detail has been strictly checked, and better products have been meticulously created. They are cheap, stable, durable and have a long service life

3. Sufficient supply and large inventory

We have our own factory, with a large amount of inventory to provide you with sufficient supply, so you don't need to worry about the shortage crisis, so that you can use it with confidence. Support customization, large quantity and price can be discussed, welcome to consult.

4. After sales service

We have a complete after-sales system. Cooperation is not the end, it is the beginning. If you have after-sales problems, please contact us at any time, and we will solve them for you as soon as possible.



FAQ

1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.



2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.



3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle



4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.



5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).



6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material.
Increase cutting speed,Increase rake angle,Select small sticking force.
