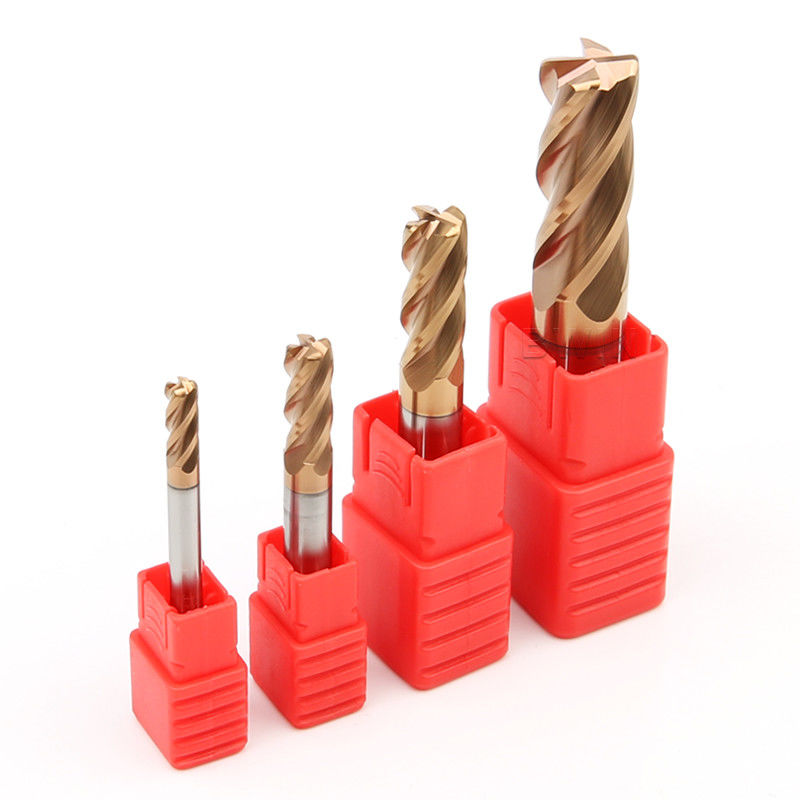

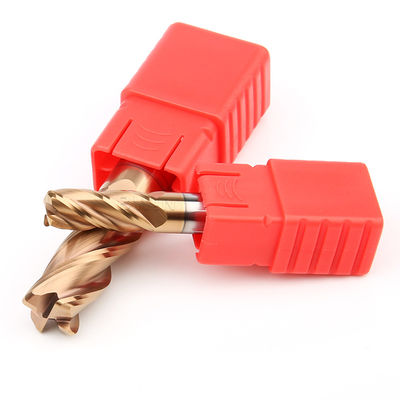

HRC55 4 Flutes Corner Radius End Mill High Quality Carbide Corner Rounding End Milling Cutter

HRC55 4 Flutes Corner Radius End Mill High Quality Carbide Corner Rounding End Milling Cutter

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: Φ3R0.5*8*d3*50L-4F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information
Product Name: HRC55 4 Flutes Corner Radius End Mill Model: R0.5~R3.0 Corner Rounding Endmill
Material: Carbide Corner Radius Cutting Tool Workpiece: Steel/Stainless Steel
Usage: CNC Coating: AlTiSiN
HRC: HRC55 Feature: Alloy Material
Application: CNC Package: 1pcs/Box
High Light:

4 Flutes Corner Radius End Mill

,

HRC55 Corner Radius End Mill

,

OEM Carbide Corner Rounding End Mill

Product Description

Characteristic:

  • Tungsten steel cemented carbide
  • Nano composite coating
  • Double edge belt design
  • Fully ground spiral groove
  • Support customization



Description:

  • The HRC55 4F corner radius end mill adopts a brand new fine particle tungsten steel base material, which has high wear resistance and strength. Imported passivation equipment increases wear resistance, making it a versatile milling cutter for high hardness and high-speed cutting applications; Carefully grinding ensures that the cutting edge of the tool is free of burrs, increasing its service life; 3 blade design, effectively preventing tool vibration during use, achieving more stable cutting; Single back corner design ensures a sharper blade, smoother chip removal, faster cutting speed, and a wider range of tool applications; The chamfering design of tungsten steel round bars is convenient to use, has good compatibility, enhances the seismic resistance of the milling cutter, improves the cutting speed of the milling cutter, and ensures tighter clamping without slipping.



Milling Parameters:

HRC45 Carbide End Mill Tool length fz&v
Short 1
Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material Strength
N/mm²

Hardness
HRC		 Cooling
Air Dry cutting Lubricating fluid
P PI P1.1 Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700 √ √ √
P1.2 quenched and tempered steel <1200 √ √ √
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900 √ √ √
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400 √   √
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900 √ √ √
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500 √   √
M M1 M1.1 austenitic stainless steel ＜700 √   √
M1.2 Ferritic/austenitic (bicrystal) stainless steel ＜1000     √
M2 M2.1 Austenitic stainless cast steel ＜700 √   √
M3 M3.1 Ferritic/austenitic (bicrystal) stainless cast steel ＜1000     √
K K1 K1.1 Flake graphite cast iron (gray cast iron), GJL ＜300 √ √ √
K2 K2.1 Ductile iron, GJS ＜500 √ √ √
K2.2 Ductile iron, GJS 500-800 √ √ √
K2.3 Ductile iron, GJS ＞800 √ √ √
K3 K3.1 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＜500 √ √ √
K3.2 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＞500 √ √ √



Slotting
Vc
(m/min)		                                                    fz(mm/tooth)
                                                       Diameter
2 4 6 8 10 12 14 16 18 20
112 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.065 0.069
92 0.01 0.017 0.025 0.032 0.038 0.045 0.0505 0.056 0.061 0.065
100 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.065 0.069
72 0.009 0.015 0.022 0.028 0.034 0.04 0.045 0.05 0.054 0.058
64 0.01 0.018 0.025 0.032 0.039 0.045 0.051 0.057 0.062 0.066
56 0.009 0.016 0.023 0.029 0.036 0.041 0.0465 0.052 0.056 0.06
44 0.007 0.012 0.018 0.023 0.027 0.032 0.036 0.04 0.043 0.046
68 0.01 0.018 0.025 0.033 0.04 0.046 0.052 0.058 0.063 0.067
44 0.005 0.009 0.012 0.016 0.019 0.022 0.025 0.028 0.030 0.032
32 0.006 0.011 0.015 0.02 0.024 0.028 0.0315 0.035 0.0375 0.04
28 0.005 0.009 0.013 0.016 0.02 0.023 0.031 0.039 0.036 0.033
32 0.007 0.012 0.017 0.021 0.026 0.03 0.034 0.038 0.041 0.044
32 0.005 0.009 0.013 0.017 0.021 0.024 0.027 0.03 0.0325 0.035
120 0.017 0.031 0.044 0.056 0.068 0.08 0.09 0.1 0.05575 0.0115
112 0.015 0.026 0.037 0.048 0.058 0.068 0.0765 0.085 0.0915 0.098
92 0.012 0.022 0.031 0.039 0.048 0.056 0.063 0.07 0.0755 0.081
52 0.007 0.012 0.018 0.023 0.027 0.032 0.036 0.04 0.043 0.046
80 0.012 0.022 0.031 0.039 0.048 0.056 0.063 0.07 0.0755 0.081
76 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.0645

0.069



Roughing
Vc
(m/min)		                                                   fz(mm/tooth)
                                                     Diameter
2 4 6 8 10 12 14 16 18 20
228 0.018 0.031 0.045 0.057 0.070 0.081 0.091 0.101 0.110 0.118
208 0.017 0.029 0.042 0.054 0.065 0.071 0.083 0.095 0.103 0.11
184 0.018 0.031 0.045 0.057 0.070 0.081 0.091 0.101 0.110 0.118
144 0.015 0.026 0.037 0.048 0.058 0.068 0.077 0.085 0.092 0.098
132 0.017 0.03 0.042 0.054 0.066 0.077 0.087 0.096 0.104 0.112
112 0.015 0.027 0.039 0.05 0.060 0.07 0.079 0.088 0.095 0.102
92 0.012 0.021 0.03 0.038 0.046 0.054 0.061 0.068 0.073 0.078
140 0.017 0.03 0.043 0.055 0.067 0.078 0.088 0.098 0.106 0.114
92 0.008 0.015 0.021 0.027 0.032 0.038 0.043 0.047 0.051 0.055
60 0.011 0.018 0.026 0.033 0.041 0.047 0.053 0.059 0.064 0.069
56 0.009 0.015 0.022 0.028 0.034 0.039 0.044 0.049 0.053 0.057
68 0.011 0.02 0.028 0.036 0.044 0.051 0.0575 0.064 0.069 0.074
60 0.009 0.016 0.022 0.029 0.035 0.041 0.046 0.051 0.055 0.059
248 0.03 0.052 0.074 0.096 0.0116 0.135 0.152 0.169 0.1825 0.196
228 0.025 0.044 0.063 0.081 0.099 0.115 0.1295 0.144 0.155 0.166
184 0.021 0.037 0.052 0.067 0.081 0.095 0.1065 0.118 0.1275 0.137
104 0.012 0.021 0.03 0.038 0.046 0.054 0.061 0.068 0.073 0.078
164 0.021 0.037 0.052 0.067 0.081 0.095 0.1065 0.118 0.1275 0.137
156 0.018 0.031 0.045 0.057 0.07 0.081 0.091 0.101 0.1095 0.118



Finish
Vc
(m/min)		                                              fz(mm/tooth)
                                                          Diameter
2 4 6 8 10 12 14 16 18 20
332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161
136 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.116 0.124
204 0.027 0.048 0.068 0.088 0.106 0.124 0.140 0.155 0.168 0.18
136 0.013 0.023 0.033 0.042 0.051 0.06 0.068 0.075 0.081 0.087
92 0.016 0.029 0.041 0.053 0.064 0.075 0.0845 0.094 0.101 0.108
84 0.014 0.024 0.034 0.044 0.053 0.062 0.0695 0.077 0.0835 0.09
100 0.018 0.031 0.045 0.057 0.07 0.081 0.0915 0.102 0.11 0.118
92 0.014 0.025 0.035 0.045 0.055 0.064 0.072 0.08 0.0865 0.093
364 0.047 0.083 0.117 0.151 0.183 0.214 0.2405 0.267 0.149 0.031
332 0.04 0.07 0.1 0.128 0.156 0.182 0.2045 0.227 0.245 0.263
272 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
152 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.1155 0.124
240 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
228 0.028 0.05 0.07 0.091 0.011 0.128 0.144 0.16 0.173 0.186



Note:
  • If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Specification Flute Dia(D) R angle Flute Length (C) Shank Dia(D) Overall Length(L)
Φ3R0.5*8*d3*50L 3 0.5 8 3 50
Φ3R1.0*8*d3*50L 3 1.0 8 3 50
Φ2R0.5*5*d4*50L 2 0.5 5 2 50
Φ3R0.5*8*d4*50L 3 0.5 8 3 50
Φ4R0.5*10*d4*50L 4 0.5 10 4 50
Φ3R1.0*8*d4*50L 3 1.0 8 3 50
Φ4R1.0*10*d4*50L 4 1.0 10 4 50
Φ5R0.5*13*d5*50L 5 0.5 13 5 50
Φ5R1.0*25*d5*100L 5 1.0 25 5 100
Φ6R0.5*15*d6*50L 6 0.5 15 6 50
Φ8R0.5*20*d8*60L 8 0.5 20 8 60
Φ8R1.0*28*d8*75L 8 1.0 28 8 75
Φ8R2.0*20*d8*60L 8 2.0 20 8 60
Φ8R3.0*20*d8*60L 8 3.0 20 8 60
Φ10R0.5*25*d10*75L 10 0.5 25 10 75
Φ10R1.0*25*d10*75L 10 1.0 25 10 75
Φ10R1.5*25*d10*75L 10 1.5 25 10 75
Φ10R2.0*25*d10*75L 10 2.0 25 10 75
Φ10R3.0*25*d10*75L 10 3.0 25 10 75


Instructions:

1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.



Applications:

Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.

Cnc Milling Cutter 6mm 3 4 Flute Tungsten Solid Carbide High Feed Endmill End Mill



FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.

2. How to place an order?
1.Fill your Order List in our online Inquiry System. 2.Directly contact our salesperson by E-mail / Skype / Whats App
We will make a feedback to you ASAP after receive your order list.

3. What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.

4. What's your delivery way?
Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request.

5. Do you offer OEM?
Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes.

6. How about the delivery time?
Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment.
