Wcmt 06t308 U Drill Insert Indexable Insert Drill Peach Quick Cutting Tool
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | WCMT06T308 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | WCMT U Drill Insert | Material: | Carbide Indexable U Drilling Insert |
|---|---|---|---|
| Workpiece: | Steel/Stainless Steel/Cast Iron | Usage: | CNC Machining |
| Color: | Fuchsia/Black | Coating: | PVD CVD |
| Hardness: | HRC40-60 | Feature: | Impact Resistance |
| Application: | CNC Drilling Inserts | Package: | 10pcs/Box |
| High Light: | Wcmt 06t308 U Drill Insert,Indexable Insert Drill Wcmt 06t308,U Drill Insert Quick Cutting Tool |
||
Product Description

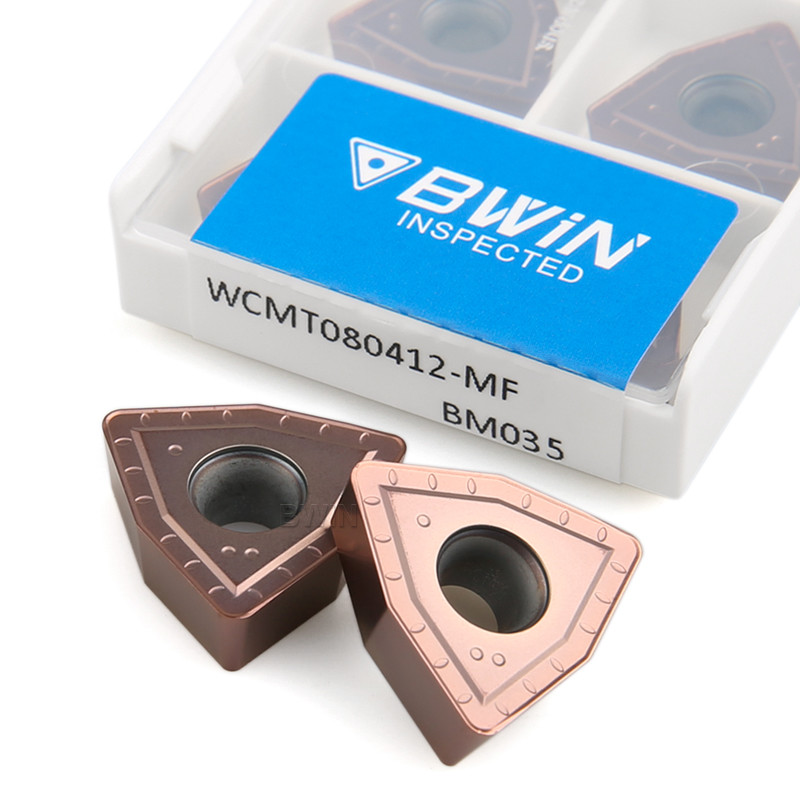

Wcmt 06t308 Carbide U Drill Insert Indexable Peach Quick Cutting Tool 080412 050308
Quick Detail:
- High wear resistance
- High finish
- Strong universality
- Impact resistance
- Stable performance
Description:
- The WCMT U drill insert is made of imported high-quality tungsten steel base material by German process. The blade has high hardness, high strength, corrosion resistance, oxidation resistance and other characteristics. The overall hardness is stronger, the cutting edge is sharper, and the service life is longer; Balchas upgraded coating, with 1000 degree high stress accumulation process, the coating is thicker, the blade is sharp and wear-resistant, durable, and the processing is more stable; The sharp cutting blade can be used at multiple angles, and the center blade and the periphery blade can be used at the same time to reduce the cost; High precision blade, effectively reducing friction and loss
Specifications:
| Brand | BWIN |
| Model | Wcmt050308 Wcmt06t308 Wcmt080412 |
| Color | Fuchsia/Black |
| Workpiece | Steel/Stainless steel |
| Type | U Drill CNC Carbide Inserts |
| Material | Tungsten Carbide U Drilling Insert |
| Processing | Medium Cutting |
| Feature | High wear resistance |
| High finish | |
| Strong universality | |
| Impact resistance | |
| Stable performance | |
| Standard | ISO |
| Quantity | 10pcs/box |
| Weight | 0.015kg |
| Package | Plastic Box |
| Customized | OEM, ODM |
Lead Time:
| antity(pieces) | 1 - 3000 | >3000 |
| Lead time (days) | 7 | To be negotiated |
Notice:
- The cnc carbide U drill insert shall not be collided or dropped on the ground and must be handled with care.
- Before installing the cnc carbide U drill insert , the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
- After installation, it is necessary to confirm whether the central hole of the cnc carbide U drill insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
- When using, do not exceed the specified high speed
- When the cnc carbide U drill insert is not used, hang the blade vertically on the dry shelf.
Applications:
Our cnc U drill insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
Advantage
1. Distribution and wholesale, complete in variety
Large quantity is preferred, product specifications are complete, and the pattern is subdivided into processing technology levels to meet your processing needs for different angles and different workpieces;
2. Carefully selected materials with reliable quality
Every detail has been strictly checked, and better products have been meticulously created. They are cheap, stable, durable and have a long service life
3. Sufficient supply and large inventory
We have our own factory, with a large amount of inventory to provide you with sufficient supply, so you don't need to worry about the shortage crisis, so that you can use it with confidence. Support customization, large quantity and price can be discussed, welcome to consult.
4. After sales service
We have a complete after-sales system. Cooperation is not the end, it is the beginning. If you have after-sales problems, please contact us at any time, and we will solve them for you as soon as possible.
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material.
Increase cutting speed,Increase rake angle,Select small sticking force.
