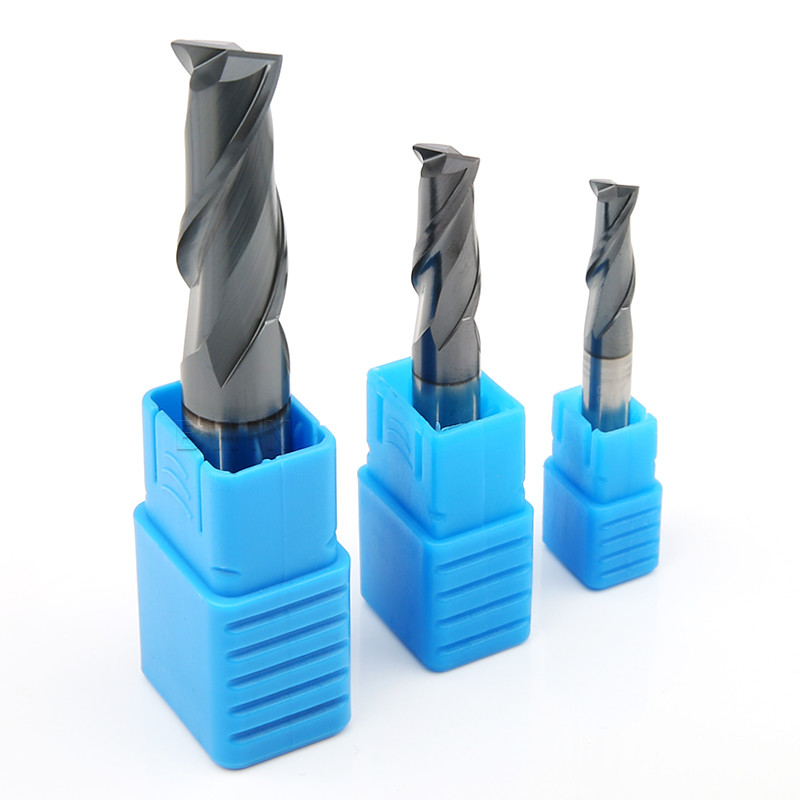

Good Heat Resistance Tungsten Carbide Endmill AlTiN Coating 6mm End Mill

Good Heat Resistance Tungsten Carbide Endmill AlTiN Coating 6mm End Mill

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: D1.5*5*50*D4

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information

Product Name: HRC45 2F Cnc Carbide End Mill Model: D6*16*50*D6 HRC45 Milling Cutter
Material: Tungsten Carbide Endmill Workpiece: Cast Iron
Usage: Milling Coating: AlTiN
HRC: HRC45 Feature: Good Rigidity
Application: CNC Machining Package: 1pcs/Box
High Light:

Tungsten Carbide Endmill AlTiN Coating

,

AlTiN Coating 6mm End Mill

,

Good Heat Resistance Tungsten Carbide Endmill

Product Description

Cnc Carbide End Mill 2F Flat Endmill HRC45 Milling Cutter CVD Coated 1.5mm 6mm



Quick Detail:

  • Suitable for cutting carbon steel, alloy steel and steel parts with HRC below 45 °;
  • Through characteristic design, the cutting process is lighter, the tool rigidity is better, and the service life is longer;
  • It can realize rough machining with high metal removal amount and finish machining with high surface quality;
  • The product can be as small as 0.1mm, even the smallest part of the part can be easily processed;
  • The coating type for steel parts below HRC45 ° shall be adopted.



Description:

1. Good heat resistance, its heat resistance temperature can reach 1100 ℃, and the maximum processing hardness can reach 52HRC. After processing, the shape accuracy and surface roughness of the processed workpiece are good; Therefore, the carbide end mill can avoid the phenomena of accretion, chipping, wear, tool breakage, etc. during the processing and production process, extend its service life, and effectively improve the product quality of the processed workpiece.

2. The number of commonly used edges is 2F, 3F, 4F, 5F, 6F, etc. The more the number of edges, the better the effect after finishing.

3. The outline of the end milling cutter is shown in the figure. The outer edge and bottom surface of the carbide end mill are provided with milling teeth to form a cutting edge, which is used to mill the vertical and horizontal surfaces of the workpiece.

4. In general, the carbide end milling cutter is very suitable for 2D shaped workpieces.



Milling parameters:

HRC45 Carbide End Mill

Tool length fz&v
Short

1

Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material

Strength

N/mm²



Hardness

HRC

Cooling
Air

Dry cutting

Lubricating fluid
P PI

P1.1

Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700
P1.2 quenched and tempered steel                                        <1200
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500



Good Heat Resistance Tungsten Carbide Endmill AlTiN Coating 6mm End Mill 0 Sloting
Vc
(m/min)
fz(mm/Tooth)
Diameter
2 4 6 8 10 12 16 20
112 0.01 0.018 0.026 0.034 0.041 0.048 0.06 0.069
92 0.01 0.017 0.025 0.032 0.038 0.045 0.056 0.065
100 0.01 0.018 0.026 0.034 0.041 0.048 0.06 0.069
72 0.009 0.015 0.022 0.028 0.034 0.04 0.05 0.058
64 0.01 0.018 0.025 0.032 0.039 0.045 0.057 0.066
56 0.009 0.016 0.023 0.029 0.036 0.041 0.052 0.06



Good Heat Resistance Tungsten Carbide Endmill AlTiN Coating 6mm End Mill 1 Roughing
Vc
(m/min)
fz(mm/Tooth)
Diameter
2 4 6 8 10 12 16 20
228 0.018 0.031 0.045 0.057 0.070 0.081 0.101 0.118
208 0.017 0.029 0.042 0.054 0.065 0.071 0.095 0.11
184 0.018 0.031 0.045 0.057 0.070 0.081 0.101 0.118
144 0.015 0.026 0.037 0.048 0.058 0.068 0.085 0.098
132 0.017 0.03 0.042 0.054 0.066 0.077 0.096 0.112
112 0.015 0.027 0.039 0.05 0.060 0.07 0.088 0.102



Good Heat Resistance Tungsten Carbide Endmill AlTiN Coating 6mm End Mill 2 Finish
Vc
m/min
fz(mm/Tooth)
Diameter
2 4 6 8 10 12 14 16 18 20
332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161

Note:
  • If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Specification Flute Dia(φ)

Flute Length (C)

Shank Dia(D) Overall Length(L)
φ1*3*d4*50L 1 3 4 50
φ1.5*4*d4*50L 1.5 5 4 50
φ2*5*d4*50L 2 5 4 50
φ2.5*7*d4*50L 2.5 7 4 50
φ3*8*d4*50L 3 8 4 50
φ4*10*d4*50L 4 10 4 50
φ5*13*d6*50L 5 13 6 50
φ6*15*d6*50L 6 15 6 50
φ8*20*d8*60L 8 20 8 60
φ10*25*d10*75L 10 25 10 75
φ12*30*d12*75L 12 30 12 75
φ14*45*d14*100L 14 45 14 100
φ16*45*d16*100L 16 45 16 100
φ18*45*d18*100L 18 45 18 100
φ20*45*d20*100L 20 45 20 100


Instructions:

1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.



Applications:

Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.

Cnc Milling Cutter 6mm 3 4 Flute Tungsten Solid Carbide High Feed Endmill End Mill



FAQ

Q1. The tool breaks when cutting in or pulling out the workpiece

The feed rate and cutting depth can be reduced, and the cutting edge length can be shortened to the minimum of the necessary length.



Q2. Tool breaks during normal machining

Reduce the feed rate and cutting depth.

The tool shall be passivated.

Replace the clamp or spring collet.

The tool with high cutting edge number changes the tool with low cutting edge number to improve chip removal and prevent chip blockage.

Replace dry milling with wet milling (using cutting fluid), and use it with vortex tube gun to reduce tool temperature and avoid tool overheating.

If the wet milling fluid supply direction is changed from the front to the oblique rear or transverse top, the coolant flow should be sufficient.



Q3. The tool breaks when the feed direction changes

(1) Use arc interpolation (NC machine tool), or temporarily stop (temporarily) feeding.

(2) Reduce (decrease) the feed before and after the direction change.

(3) Replace the clamp or spring collet.



Q4. Problem: Part of the blade tip breaks

Chamfer the corners with manual grinding.

Change down milling to up milling.
