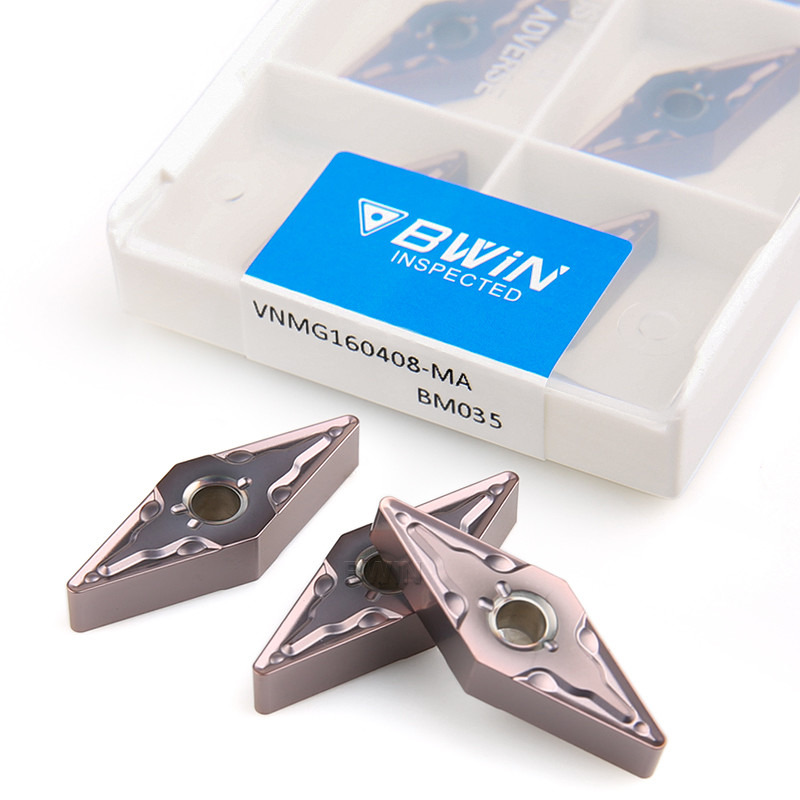

Vnmg 160408 Tungsten Carbide Inserts Turning Cutter CVD Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | VNMG160408 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | Tungsten Carbide Inserts Vnmg160408 | Material: | Tungsten Lathe Cutting Tool |
|---|---|---|---|
| Workpiece: | Cast Iron/Steel/Stainless Steel/Aluminum | Usage: | Turning Cutting Tool |
| Color: | Yellow/Brown/Fuchsia/Black/cermet/Uncoated | Coating: | PVD CVD |
| Hardness: | HRC40-HRC60 | Feature: | VNMG Ceramic Inserts |
| Application: | Cnc Lathe Tool | Package: | 10pcs/Box |
| High Light: | Vnmg Tungsten Carbide Inserts,Carbide Turning Inserts Vnmg,Carbide Turning Inserts CVD Coating |
||
Product Description
|
Brand |
BWIN |
|
Model |
VNMG160402 VNMG160404 VNMG160408 VNMG160412 |
|
Color |
Yellow/Brown/Fuchsia/Black/cermet/Uncoated |
|
Workpiece |
Cast iron/Steel/Stainless steel/Aluminium |
|
Type |
CNC Cutting Tool |
|
Material |
Tungsten Carbide Inserts Turning |
|
Processing Type |
Medium Cutting |
|
Feature |
Good chip breaking |
|
Smooth chip flapping |
|
|
High strength |
|
|
Resistance to deformation |
|
|
Good toughness |
|
|
Standard |
ISO |
|
Quantity |
10pcs/box |
|
Weight |
0.015kg |
|
Package |
Plastic Box |
|
Customized Support |
OEM, ODM |
|
I(mm) |
d(mm) |
t(mm) |
d1(mm) |
|
16 |
9.525 |
4.76 |
3.81 |
Notice:
1. Be careful not to mix two or several tungsten carbide inserts together;
2. Pay special attention to the protection of the cutting edge; Never touch or fall on the ground;
3. Pay attention to rust prevention, and then pay attention to whether the locking screw is loosened when adjusting;
4. When using the tungsten carbide inserts, if there is screw anti seize agent, it must be added to prevent the screw from sticking;
5. Assume that the tungsten carbide inserts encounters rust; It is not recommended to use abrasive paper or other rough grinding. It is recommended to purchase a polishing agent specially used for polishing. The particles are fine, much like toothpaste, which will cause less damage to the taper part of the tungsten carbide inserts, and the polishing is smooth.
Applications:
Our tungsten carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
