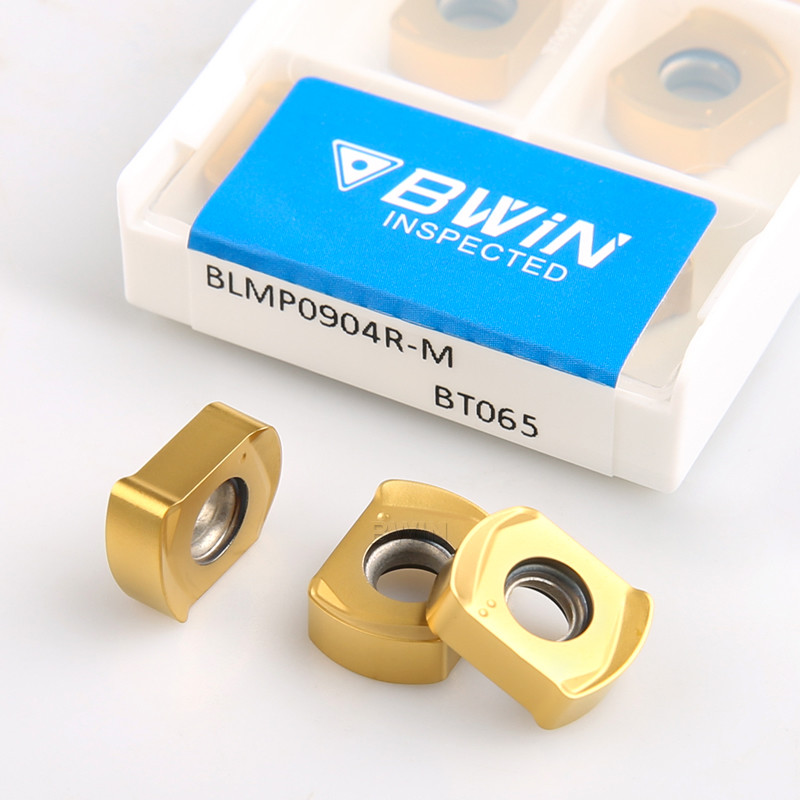

Blmp 0603 0903 R Carbide Milling Inserts Finish Mill Cnc Cutting Insert
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | BLMP0603 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | BLMP Finish Carbide Milling Insert | Material: | Tungsten CNC Milling Cutter Insert |
|---|---|---|---|
| Workpiece: | Steel/Cast Iron | Usage: | Milling |
| Color: | Yellow/Black | Coating: | PVD CVD |
| Hardness: | HRC40-60 | Feature: | High Strength Cutting Edge |
| Application: | Cnc Cutter Tool Steel | Package: | 10pcs/Box |
| Highlight: | Blmp 0603 Carbide Milling Inserts,Cnc Cutting Insert Blmp 0603,Finish Mill Cnc Cutting Insert |
||
Product Description
Blmp 0603 0903 R Carbide Insert Milling Finish Mill Cnc Cutter Tool Cutting Steel
Quick Detail:
- Imported raw materials
- High hardness treatment
- Durable
- Sharp blade
- Not easy to wear
- High-precision
Description:
- The milling tungsten carbide inserts are made of imported base material with advanced high precision, which enhances the quality of the blade, high hardness, good ductility, high finish, thick coating, stable performance and improves the processing efficiency; Double sided four edge fast feed milling cutter, sharp cutting, smooth chip removal, improve the surface finish; Complete specifications, support non-standard customization.
Specifications:
| Brand | BWIN |
| Model | BLMP0603R BLMP0903R |
| Color | Yellow/Black |
| Workpiece | Steel/Cast Iron |
| Type | Milling Insert |
| Material | Milling Tungsten Carbide Inserts |
| Processing | Medium Cutting |
| Feature | Imported raw materials |
| High hardness treatment | |
| Durable | |
|
Sharp blade |
|
| High-precision | |
| Standard | ISO |
| Quantity | 10pcs/box |
| Weight | 0.015kg |
| Package | Plastic Box |
| Customized | OEM, ODM |
Lead Time:
| antity(pieces) | 1 - 3000 | >3000 |
| Lead time (days) | 7 | To be negotiated |
Notice:
- The milling tungsten carbide inserts shall not be collided or dropped on the ground and must be handled with care.
- Before installing the milling tungsten carbide inserts , the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
- After installation, it is necessary to confirm whether the central hole of the carbide milling inserts is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
- When using, do not exceed the specified high speed
- When the milling tungsten carbide inserts is not used, hang the blade vertically on the dry shelf.
Applications:
Our milling tungsten carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
