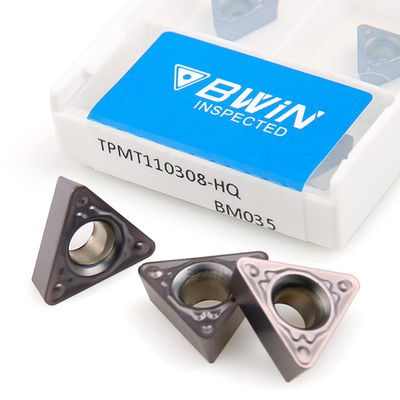

Tpmt090204 Turning Carbide Inserts High Feed Carbide Cnc Inserts

Tpmt090204 Turning Carbide Inserts High Feed Carbide Cnc Inserts

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: TPMT110304

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information

Product Name: TPMT High Feed Turning Carbide Inserts Material: Tungsten High Feed CNC Inserts
Workpiece: Steel/Stainless Steel Usage: Turning Cutter Inserts
Color: Brown/Cermet/Yellow/Fuchsia Coating: PVD CVD
Hardness: HRC40-60 Feature: Strong Universality
Application: Cnc Lathe Tool Package: 10pcs/Box
High Light:

Tpmt090204 Turning Carbide Inserts

,

Turning Carbide Inserts High Feed

,

High Feed Carbide Cnc Inserts

Product Description

Tpmt090204 090208 110304 110308 Turning Carbide Inserts High Feed Cnc Stainless Steel

Quick Detail:

  • Good red hardness
  • Good process performance
  • High durability
  • Fine cutting
  • Good chip removal performance
  • Wide application

Description:

  • TPMT turning carbide inserts are made of alloy materials with better performance. Carbide matrix materials make the blades have higher overall hardness, stronger deformation resistance and longer tool life; 1000 degree stress accumulation spraying makes the coating thicker and processing more stable; Sharp blade makes the cutting smoother and the processing efficiency higher; Various groove types and complete specifications can meet your various processing needs from different angles.

Specifications:

Brand BWIN
Model TPMT090204 TPMT090202 TPMT110308 TPMT110304
Color Brown/Cermet/Yellow/Fuchsia
Workpiece Steel/Stainless steel
Type CNC Turning Cutting Tool
Material Tungsten Carbide Turning Cutter Insert
Processing Type Medium Cutting
Feature Good red hardness
Good process performance
High durability
Fine cutting

Wide application

Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized Support OEM, ODM



Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days)  7 To be negotiated



Notice:

  • The turning carbide inserts shall not be collided or dropped on the ground and must be handled with care.
  • Before installing the turning carbide inserts, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the turning carbide inserts are firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the turning carbide inserts are not used, hang the blade vertically on the dry shelf.

Applications:

Our turning carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Cnc Tungsten Carbide Insert Cnmg 120404 120408 120412 Lathe Turning Cutting Tool



Advantages:

1. Honest merchants, reasonable price and quality assurance

2. Large inventory, sufficient supply and high cost performance

3. Customer service responds in time and delivers goods quickly

4. Provide after-sale guarantee to make your after-sale service free



FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.

2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.

3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle

4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.

5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).

6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
