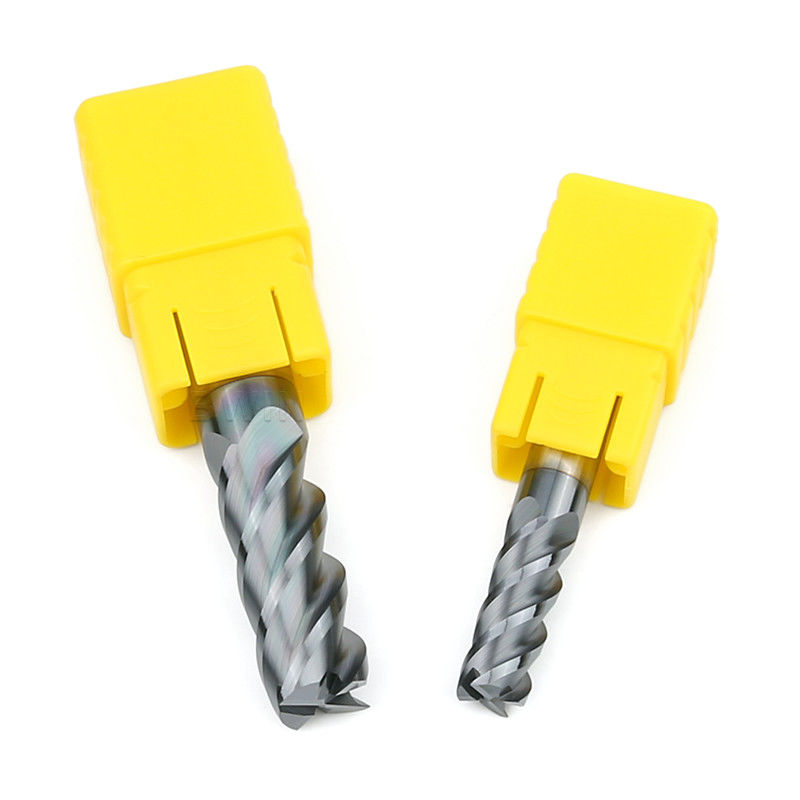

HRC60 4 Flute Square End Mill High Feed Flat Milling Cutter For Stainless Steel

HRC60 4 Flute Square End Mill High Feed Flat Milling Cutter For Stainless Steel

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: D2.5*7*d4*50L-4F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information

Product Name: HRC60 4F Square Milling Cutters Model: D1~D20 Flat Milling Cutters
Material: Carbide Square Endmill Workpiece: Cast Iron, Alloy Steel, Carbon Steel, Etc
Coating: TiAlN HRC: HRC60
Feature: Smooth Cutting Application: CNC Milling Tool
Package: 1pcs/Plastic Box Delivery Time: 6-14 Days
High Light:

4 Flute Square End Mill


HRC60 Square End Mill


Flat Milling Cutter For SS

Product Description


  • High durability
  • High reliability
  • Fine cutting
  • Widely applicable
  • Good chip removal performance
  • Low friction coefficient


Carbide material introdution

Item Grade
(YG10X )
(YL10.2 & WF25)
(Germany K44 &K40)
(Sandvik H10F)

Grain size 0.7um
Flexural strength
Grain size 0.6um
Flexural strength 4000N/mm2
Grain size 0.5um
Flexural strength
Grain size 0.5um
Flexural strength 4300N/mm2
Application Suitable for general steel General steel, stainless steel, cast iron High hard material, steel, cast iron, etc Titanium alloy, high-temperature alloy, harden material, etc


Coating Classifying and Advantage
Item Coating Type AlTiN TiAlN TiSiN NaCo
Hardness(HV) 3300 2800 4300 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp.(°C) 900 800 1000 1200
Friction Coefficient 0.35 0.3 0.25 0.4
Color Black  Bronze Bronze and gold Blue
High heat stability
Normally cutting
Suitable for heavy cutting, and high hardness cutting For high precision cutting
Suitable for high speed, dry cutting Suitable for cutting mould steel,
stainless steel
Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert


Applications of carbide end mill

Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, aluminum alloy, copper alloy, plastic, wood, magnesium alloy, zinc alloy, aluminum parts, etc

Cnc Milling Cutter 6mm 3 4 Flute Tungsten Solid Carbide High Feed Endmill End Mill


Product specifications of carbide end mill

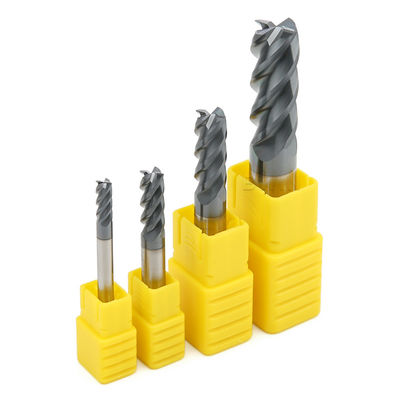

HRC60 4 Flute Square End Mill High Feed Flat Milling Cutter For Stainless Steel 1


Specification Flute Dia(D) Flute length(C) Shank dia(D) Overall length(L)


3 4 50
Φ2x6Cx4x50L 2.0 6 4 50
Φ3x8Cx4x50L 3.0 8 4 50
Φ4x10Cx4x50L 4.0 10 4 50
Φ5x13Cx6x50L 5.0 13 6 50
Φ6x15Cx6x50L 6.0 15 6 50
Φ8x20Cx8x60L 8.0 20 8 60
Φ6x20Cx6x75L 6.0 20 6 75
Φ8x25Cx8x75L 8.0 25 8 75
Φ10x25Cx10x75L 10.0 25 10 75
Φ12x30Cx12x75L 12.0 30 12 75
Φ10x40Cx10x100L 10.0 40 10 100
Φ12x45Cx12x100L 12.0 45 12 100
Φ14x40Cx14x100L 14.0 40 14 100
Φ16x40Cx16x100L 16.0 40 16 100
Φ18x40Cx18x100L 18.0 40 18 100
Φ20x45x20x100L 20.0 45 20 100


Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.


Instructions of carbide end mill

1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
