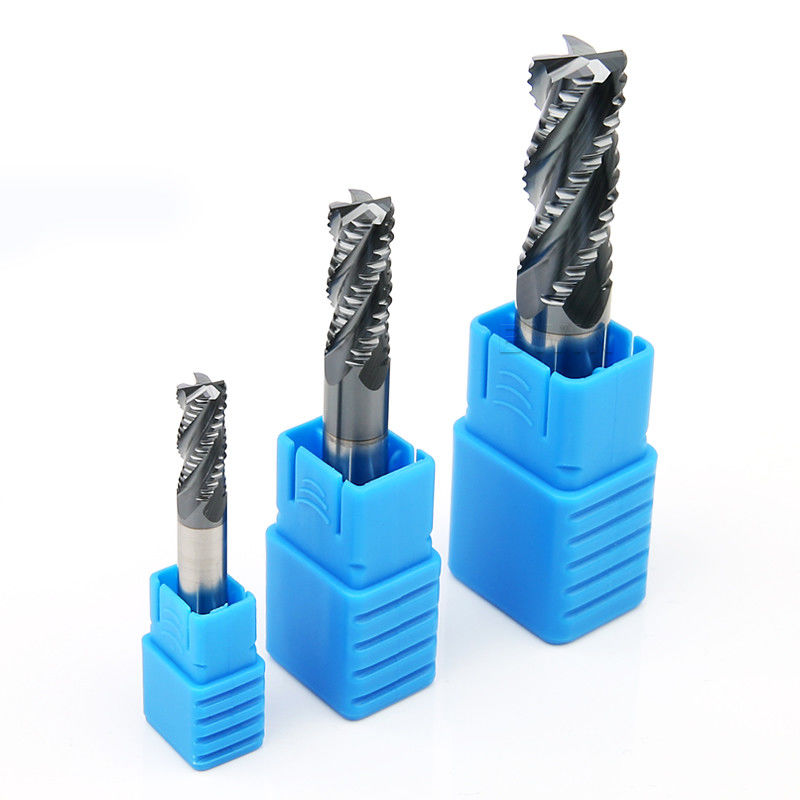

• HRC45 4 Flutes Rough Milling Cutter Carbide Wave Flute Roughing End Mill
HRC45 4 Flutes Rough Milling Cutter Carbide Wave Flute Roughing End Mill

HRC45 4 Flutes Rough Milling Cutter Carbide Wave Flute Roughing End Mill

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: Φ5*13*d5*50L-4F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information
Product Name: HRC45 Carbide Roughing End Mill Model: 4 Flutes Roughing Endmills
Material: Tungsten 20mm Carbide Milling Cutter Workpiece: Chisel Tool Steel
Usage: Roughing Milling Coating: AlTiN
HRC: HRC45 Feature: Sharp And Long-lasting
Application: CNC Tool Package: 1pcs/Box
High Light:

HRC45 Rough Milling Cutter

,

Carbide Roughing End Mill

,

Wave Flute Roughing End Mill

Product Description

Description:

  • The high-quality tungsten steel base material is selected, and the sophisticated process standard is more rigorous. It is sturdy, durable, shock resistant and stable. It refuses to use short cutters to ensure the stability and safety of the carbide roughing end mill
  • High quality nano coating on the edge, stable and wear-resistant, not easy to wear, fast milling, improve efficiency
  • The large core diameter design enhances the rigidity and shock resistance of the tool, making the tool more stable
  • Precise chamfer design and processing perfectly fit, saving tool change time and improving work efficiency



Milling Parameters:

HRC45 Carbide Roughing End Mill Tool length fz&v
Short 1
Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material Strength
N/mm²

Hardness
HRC		 Cooling
Air Dry cutting Lubricating fluid
P PI P1.1 Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700 √ √ √
P1.2 quenched and tempered steel <1200 √ √ √
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900 √ √ √
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400 √   √
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900 √ √ √
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500 √   √
M M1 M1.1 austenitic stainless steel ＜700 √   √
M1.2 Ferritic/austenitic (bicrystal) stainless steel ＜1000     √
M2 M2.1 Austenitic stainless cast steel ＜700 √   √
M3 M3.1 Ferritic/austenitic (bicrystal) stainless cast steel ＜1000     √
K K1 K1.1 Flake graphite cast iron (gray cast iron), GJL ＜300 √ √ √
K2 K2.1 Ductile iron, GJS ＜500 √ √ √
K2.2 Ductile iron, GJS 500-800 √ √ √
K2.3 Ductile iron, GJS ＞800 √ √ √
K3 K3.1 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＜500 √ √ √
K3.2 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＞500 √ √ √



Slotting
Vc
(m/min)		                                                    fz(mm/tooth)
                                                       Diameter
2 4 6 8 10 12 14 16 18 20
112 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.065 0.069
92 0.01 0.017 0.025 0.032 0.038 0.045 0.0505 0.056 0.061 0.065
100 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.065 0.069
72 0.009 0.015 0.022 0.028 0.034 0.04 0.045 0.05 0.054 0.058
64 0.01 0.018 0.025 0.032 0.039 0.045 0.051 0.057 0.062 0.066
56 0.009 0.016 0.023 0.029 0.036 0.041 0.0465 0.052 0.056 0.06
44 0.007 0.012 0.018 0.023 0.027 0.032 0.036 0.04 0.043 0.046
68 0.01 0.018 0.025 0.033 0.04 0.046 0.052 0.058 0.063 0.067
44 0.005 0.009 0.012 0.016 0.019 0.022 0.025 0.028 0.030 0.032
32 0.006 0.011 0.015 0.02 0.024 0.028 0.0315 0.035 0.0375 0.04
28 0.005 0.009 0.013 0.016 0.02 0.023 0.031 0.039 0.036 0.033
32 0.007 0.012 0.017 0.021 0.026 0.03 0.034 0.038 0.041 0.044
32 0.005 0.009 0.013 0.017 0.021 0.024 0.027 0.03 0.0325 0.035
120 0.017 0.031 0.044 0.056 0.068 0.08 0.09 0.1 0.05575 0.0115
112 0.015 0.026 0.037 0.048 0.058 0.068 0.0765 0.085 0.0915 0.098
92 0.012 0.022 0.031 0.039 0.048 0.056 0.063 0.07 0.0755 0.081
52 0.007 0.012 0.018 0.023 0.027 0.032 0.036 0.04 0.043 0.046
80 0.012 0.022 0.031 0.039 0.048 0.056 0.063 0.07 0.0755 0.081
76 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.0645

0.069



Roughing
Vc
(m/min)		                                                   fz(mm/tooth)
                                                     Diameter
2 4 6 8 10 12 14 16 18 20
228 0.018 0.031 0.045 0.057 0.070 0.081 0.091 0.101 0.110 0.118
208 0.017 0.029 0.042 0.054 0.065 0.071 0.083 0.095 0.103 0.11
184 0.018 0.031 0.045 0.057 0.070 0.081 0.091 0.101 0.110 0.118
144 0.015 0.026 0.037 0.048 0.058 0.068 0.077 0.085 0.092 0.098
132 0.017 0.03 0.042 0.054 0.066 0.077 0.087 0.096 0.104 0.112
112 0.015 0.027 0.039 0.05 0.060 0.07 0.079 0.088 0.095 0.102
92 0.012 0.021 0.03 0.038 0.046 0.054 0.061 0.068 0.073 0.078
140 0.017 0.03 0.043 0.055 0.067 0.078 0.088 0.098 0.106 0.114
92 0.008 0.015 0.021 0.027 0.032 0.038 0.043 0.047 0.051 0.055
60 0.011 0.018 0.026 0.033 0.041 0.047 0.053 0.059 0.064 0.069
56 0.009 0.015 0.022 0.028 0.034 0.039 0.044 0.049 0.053 0.057
68 0.011 0.02 0.028 0.036 0.044 0.051 0.0575 0.064 0.069 0.074
60 0.009 0.016 0.022 0.029 0.035 0.041 0.046 0.051 0.055 0.059
248 0.03 0.052 0.074 0.096 0.0116 0.135 0.152 0.169 0.1825 0.196
228 0.025 0.044 0.063 0.081 0.099 0.115 0.1295 0.144 0.155 0.166
184 0.021 0.037 0.052 0.067 0.081 0.095 0.1065 0.118 0.1275 0.137
104 0.012 0.021 0.03 0.038 0.046 0.054 0.061 0.068 0.073 0.078
164 0.021 0.037 0.052 0.067 0.081 0.095 0.1065 0.118 0.1275 0.137
156 0.018 0.031 0.045 0.057 0.07 0.081 0.091 0.101 0.1095 0.118



Finish
Vc
(m/min)		                                              fz(mm/tooth)
                                                          Diameter
2 4 6 8 10 12 14 16 18 20
332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161
136 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.116 0.124
204 0.027 0.048 0.068 0.088 0.106 0.124 0.140 0.155 0.168 0.18
136 0.013 0.023 0.033 0.042 0.051 0.06 0.068 0.075 0.081 0.087
92 0.016 0.029 0.041 0.053 0.064 0.075 0.0845 0.094 0.101 0.108
84 0.014 0.024 0.034 0.044 0.053 0.062 0.0695 0.077 0.0835 0.09
100 0.018 0.031 0.045 0.057 0.07 0.081 0.0915 0.102 0.11 0.118
92 0.014 0.025 0.035 0.045 0.055 0.064 0.072 0.08 0.0865 0.093
364 0.047 0.083 0.117 0.151 0.183 0.214 0.2405 0.267 0.149 0.031
332 0.04 0.07 0.1 0.128 0.156 0.182 0.2045 0.227 0.245 0.263
272 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
152 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.1155 0.124
240 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
228 0.028 0.05 0.07 0.091 0.011 0.128 0.144 0.16 0.173 0.186



Note:
  • If the following carbide roughing end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide roughing end mill according to your needs.
Specification

Flute

Dia(D)

        Flute

Length (C)

Shank

Dia(D)

 Overall Length(L)
Φ4*10*d4*50L 4 10 4 50
Φ5*13*d5*50L 5 13 5 50
Φ6*15*d6*50L 6 15 6 50
Φ8*20*d8*60L 8 20 8 60
Φ10*25*d10*75L 10 25 10 75
Φ12*30*d12*75L 12 30 12 75
Φ8*35*d8*100L 8 35 8 100
Φ10*40*d10*100L 10 40 10 100
Φ12*45*d12*100L 12 45 12 100
Φ14*45*d14*100L 14 45 14 100
Φ16*45*d16*100L 16 45 16 100
Φ18*45*d18*100L 18 45 18 100
Φ20*45*d20*100L 20 45 20 100


Instructions:

1. Before using the carbide roughing end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.



Features:

  • High hardness
  • High durability
  • Anti collapse and wear resistance
  • Sharp blade
  • Fine cutting
  • Widely applicable



Applications:

Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.

Cnc Milling Cutter 6mm 3 4 Flute Tungsten Solid Carbide High Feed Endmill End Mill



FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.

2. How to place an order?
1.Fill your Order List in our online Inquiry System. 2.Directly contact our salesperson by E-mail / Skype / Whats App
We will make a feedback to you ASAP after receive your order list.

3. What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.

4. What's your delivery way?
Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request.

5. Do you offer OEM?
Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes.

6. How about the delivery time?
Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment.
