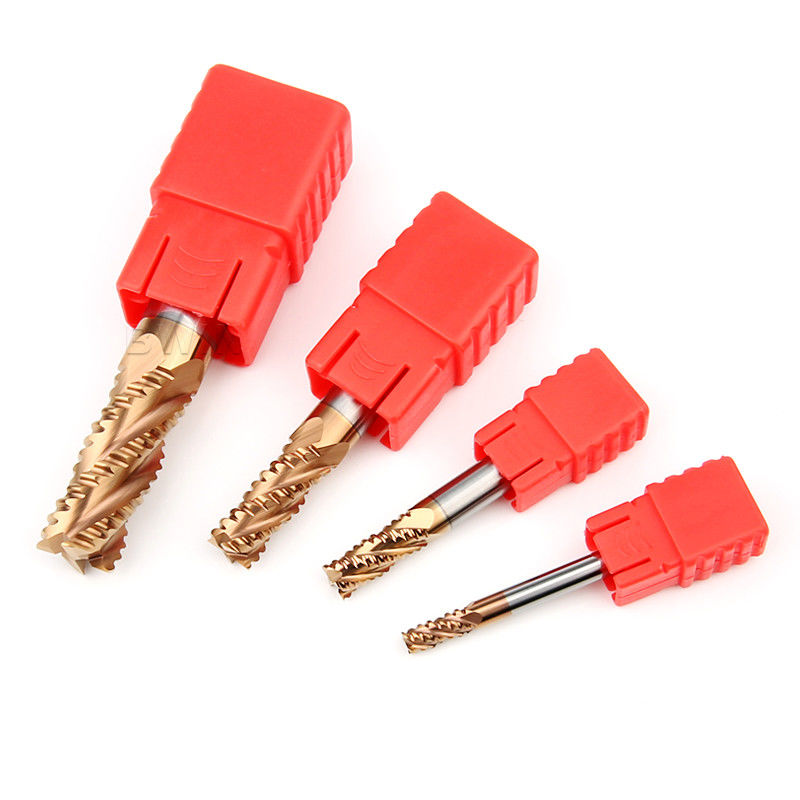

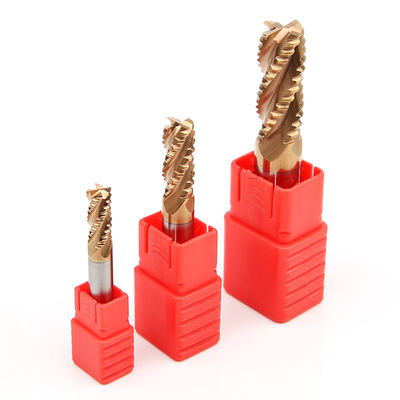

HRC55 4 Flute Roughing End Mill 12 Mm Endmill HRC 55 Copper Coated
Product Details:
Place of Origin: | China |
Brand Name: | BWIN |
Model Number: | Φ6*15*d6*50L-4F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs/box |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic box |
Delivery Time: | 7 work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1-10000pcs 7days |
Detail Information |
|||
Product Name: | HRC55 4 Flute Roughing End Mill | Model: | 12 Mm Endmill HRC 55 Roughing Endmill |
---|---|---|---|
Material: | HRC55 CNC Carbide Roughing End Mill | Workpiece: | Chisel Tool Steel |
Usage: | Roughing Milling | Coating: | AlTiSiN |
HRC: | HRC55 Roughing Milling Cutter | Feature: | Smooth Cutting |
Application: | CNC Tool | Package: | 1pcs/Box |
Highlight: | 4 Flute Roughing End Mill,12mm Roughing End Mill,Copper Coated Roughing End Mill |
Product Description
Features:
- High Flexural strength
- High production efficiency
- Low friction coefficient
- Good heat dissipation conditions
- High durability
- Strong universality
Description:
- The high-quality tungsten steel base material is selected, and the sophisticated process standard is more rigorous. It is sturdy, durable, shock resistant and stable. It refuses to use short cutters to ensure the stability and safety of the carbide roughing end mill
- High quality nano coating on the edge, stable and wear-resistant, not easy to wear, fast milling, improve efficiency
- The large core diameter design enhances the rigidity and shock resistance of the tool, making the tool more stable
- Precise chamfer design and processing perfectly fit, saving tool change time and improving work efficiency
Milling Parameters:
HRC45 Carbide Roughing End Mill | Tool length | fz&v | |||||
Short | 1 | ||||||
Long1 | 0.9 | ||||||
Overlength | 0.8 | ||||||
Speciality | 0.6 | ||||||
Type | Material | Strength N/mm² Hardness HRC |
Cooling | ||||
Air | Dry cutting | Lubricating fluid | |||||
P | PI | P1.1 | Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel | <700 | √ | √ | √ |
P1.2 | quenched and tempered steel | <1200 | √ | √ | √ | ||
P2 | P2.1 | Alloyed nitrided steel, carburized steel and quenched and tempered steel | <900 | √ | √ | √ | |
P2.2 | Tool steel, bearing steel, spring steel and high-speed steel | <1400 | √ | √ | |||
P3 | P3.1 | Tool steel, bearing steel, spring steel and high-speed steel | <900 | √ | √ | √ | |
P3.2 | Tool steel, bearing steel, spring steel and high-speed steel | <1500 | √ | √ | |||
M | M1 | M1.1 | austenitic stainless steel | <700 | √ | √ | |
M1.2 | Ferritic/austenitic (bicrystal) stainless steel | <1000 | √ | ||||
M2 | M2.1 | Austenitic stainless cast steel | <700 | √ | √ | ||
M3 | M3.1 | Ferritic/austenitic (bicrystal) stainless cast steel | <1000 | √ | |||
K | K1 | K1.1 | Flake graphite cast iron (gray cast iron), GJL | <300 | √ | √ | √ |
K2 | K2.1 | Ductile iron, GJS | <500 | √ | √ | √ | |
K2.2 | Ductile iron, GJS | 500-800 | √ | √ | √ | ||
K2.3 | Ductile iron, GJS | >800 | √ | √ | √ | ||
K3 | K3.1 | Vermicular graphite cast iron, GJV; Malleable cast iron, GJM | <500 | √ | √ | √ | |
K3.2 | Vermicular graphite cast iron, GJV; Malleable cast iron, GJM | >500 | √ | √ | √ |
Slotting | ||||||||||
Vc (m/min) |
fz(mm/tooth) | |||||||||
Diameter | ||||||||||
2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
112 | 0.01 | 0.018 | 0.026 | 0.034 | 0.041 | 0.048 | 0.054 | 0.06 | 0.065 | 0.069 |
92 | 0.01 | 0.017 | 0.025 | 0.032 | 0.038 | 0.045 | 0.0505 | 0.056 | 0.061 | 0.065 |
100 | 0.01 | 0.018 | 0.026 | 0.034 | 0.041 | 0.048 | 0.054 | 0.06 | 0.065 | 0.069 |
72 | 0.009 | 0.015 | 0.022 | 0.028 | 0.034 | 0.04 | 0.045 | 0.05 | 0.054 | 0.058 |
64 | 0.01 | 0.018 | 0.025 | 0.032 | 0.039 | 0.045 | 0.051 | 0.057 | 0.062 | 0.066 |
56 | 0.009 | 0.016 | 0.023 | 0.029 | 0.036 | 0.041 | 0.0465 | 0.052 | 0.056 | 0.06 |
44 | 0.007 | 0.012 | 0.018 | 0.023 | 0.027 | 0.032 | 0.036 | 0.04 | 0.043 | 0.046 |
68 | 0.01 | 0.018 | 0.025 | 0.033 | 0.04 | 0.046 | 0.052 | 0.058 | 0.063 | 0.067 |
44 | 0.005 | 0.009 | 0.012 | 0.016 | 0.019 | 0.022 | 0.025 | 0.028 | 0.030 | 0.032 |
32 | 0.006 | 0.011 | 0.015 | 0.02 | 0.024 | 0.028 | 0.0315 | 0.035 | 0.0375 | 0.04 |
28 | 0.005 | 0.009 | 0.013 | 0.016 | 0.02 | 0.023 | 0.031 | 0.039 | 0.036 | 0.033 |
32 | 0.007 | 0.012 | 0.017 | 0.021 | 0.026 | 0.03 | 0.034 | 0.038 | 0.041 | 0.044 |
32 | 0.005 | 0.009 | 0.013 | 0.017 | 0.021 | 0.024 | 0.027 | 0.03 | 0.0325 | 0.035 |
120 | 0.017 | 0.031 | 0.044 | 0.056 | 0.068 | 0.08 | 0.09 | 0.1 | 0.05575 | 0.0115 |
112 | 0.015 | 0.026 | 0.037 | 0.048 | 0.058 | 0.068 | 0.0765 | 0.085 | 0.0915 | 0.098 |
92 | 0.012 | 0.022 | 0.031 | 0.039 | 0.048 | 0.056 | 0.063 | 0.07 | 0.0755 | 0.081 |
52 | 0.007 | 0.012 | 0.018 | 0.023 | 0.027 | 0.032 | 0.036 | 0.04 | 0.043 | 0.046 |
80 | 0.012 | 0.022 | 0.031 | 0.039 | 0.048 | 0.056 | 0.063 | 0.07 | 0.0755 | 0.081 |
76 | 0.01 | 0.018 | 0.026 | 0.034 | 0.041 | 0.048 | 0.054 | 0.06 | 0.0645 |
0.069 |
Roughing | ||||||||||
Vc (m/min) |
fz(mm/tooth) | |||||||||
Diameter | ||||||||||
2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
228 | 0.018 | 0.031 | 0.045 | 0.057 | 0.070 | 0.081 | 0.091 | 0.101 | 0.110 | 0.118 |
208 | 0.017 | 0.029 | 0.042 | 0.054 | 0.065 | 0.071 | 0.083 | 0.095 | 0.103 | 0.11 |
184 | 0.018 | 0.031 | 0.045 | 0.057 | 0.070 | 0.081 | 0.091 | 0.101 | 0.110 | 0.118 |
144 | 0.015 | 0.026 | 0.037 | 0.048 | 0.058 | 0.068 | 0.077 | 0.085 | 0.092 | 0.098 |
132 | 0.017 | 0.03 | 0.042 | 0.054 | 0.066 | 0.077 | 0.087 | 0.096 | 0.104 | 0.112 |
112 | 0.015 | 0.027 | 0.039 | 0.05 | 0.060 | 0.07 | 0.079 | 0.088 | 0.095 | 0.102 |
92 | 0.012 | 0.021 | 0.03 | 0.038 | 0.046 | 0.054 | 0.061 | 0.068 | 0.073 | 0.078 |
140 | 0.017 | 0.03 | 0.043 | 0.055 | 0.067 | 0.078 | 0.088 | 0.098 | 0.106 | 0.114 |
92 | 0.008 | 0.015 | 0.021 | 0.027 | 0.032 | 0.038 | 0.043 | 0.047 | 0.051 | 0.055 |
60 | 0.011 | 0.018 | 0.026 | 0.033 | 0.041 | 0.047 | 0.053 | 0.059 | 0.064 | 0.069 |
56 | 0.009 | 0.015 | 0.022 | 0.028 | 0.034 | 0.039 | 0.044 | 0.049 | 0.053 | 0.057 |
68 | 0.011 | 0.02 | 0.028 | 0.036 | 0.044 | 0.051 | 0.0575 | 0.064 | 0.069 | 0.074 |
60 | 0.009 | 0.016 | 0.022 | 0.029 | 0.035 | 0.041 | 0.046 | 0.051 | 0.055 | 0.059 |
248 | 0.03 | 0.052 | 0.074 | 0.096 | 0.0116 | 0.135 | 0.152 | 0.169 | 0.1825 | 0.196 |
228 | 0.025 | 0.044 | 0.063 | 0.081 | 0.099 | 0.115 | 0.1295 | 0.144 | 0.155 | 0.166 |
184 | 0.021 | 0.037 | 0.052 | 0.067 | 0.081 | 0.095 | 0.1065 | 0.118 | 0.1275 | 0.137 |
104 | 0.012 | 0.021 | 0.03 | 0.038 | 0.046 | 0.054 | 0.061 | 0.068 | 0.073 | 0.078 |
164 | 0.021 | 0.037 | 0.052 | 0.067 | 0.081 | 0.095 | 0.1065 | 0.118 | 0.1275 | 0.137 |
156 | 0.018 | 0.031 | 0.045 | 0.057 | 0.07 | 0.081 | 0.091 | 0.101 | 0.1095 | 0.118 |
Finish | ||||||||||
Vc (m/min) |
fz(mm/tooth) | |||||||||
Diameter | ||||||||||
2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
332 | 0.028 | 0.05 | 0.07 | 0.091 | 0.11 | 0.128 | 0.144 | 0.16 | 0.173 | 0.186 |
272 | 0.026 | 0.046 | 0.066 | 0.085 | 0.103 | 0.12 | 0.135 | 0.15 | 0.162 | 0.173 |
304 | 0.028 | 0.05 | 0.07 | 0.091 | 0.11 | 0.128 | 0.144 | 0.16 | 0.173 | 0.186 |
212 | 0.023 | 0.041 | 0.059 | 0.076 | 0.092 | 0.107 | 0.121 | 0.134 | 0.145 | 0.155 |
196 | 0.027 | 0.047 | 0.067 | 0.086 | 0.104 | 0.122 | 0.137 | 0.152 | 0.165 | 0.177 |
168 | 0.024 | 0.043 | 0.061 | 0.079 | 0.095 | 0.111 | 0.125 | 0.139 | 0.150 | 0.161 |
136 | 0.019 | 0.033 | 0.047 | 0.06 | 0.073 | 0.085 | 0.096 | 0.107 | 0.116 | 0.124 |
204 | 0.027 | 0.048 | 0.068 | 0.088 | 0.106 | 0.124 | 0.140 | 0.155 | 0.168 | 0.18 |
136 | 0.013 | 0.023 | 0.033 | 0.042 | 0.051 | 0.06 | 0.068 | 0.075 | 0.081 | 0.087 |
92 | 0.016 | 0.029 | 0.041 | 0.053 | 0.064 | 0.075 | 0.0845 | 0.094 | 0.101 | 0.108 |
84 | 0.014 | 0.024 | 0.034 | 0.044 | 0.053 | 0.062 | 0.0695 | 0.077 | 0.0835 | 0.09 |
100 | 0.018 | 0.031 | 0.045 | 0.057 | 0.07 | 0.081 | 0.0915 | 0.102 | 0.11 | 0.118 |
92 | 0.014 | 0.025 | 0.035 | 0.045 | 0.055 | 0.064 | 0.072 | 0.08 | 0.0865 | 0.093 |
364 | 0.047 | 0.083 | 0.117 | 0.151 | 0.183 | 0.214 | 0.2405 | 0.267 | 0.149 | 0.031 |
332 | 0.04 | 0.07 | 0.1 | 0.128 | 0.156 | 0.182 | 0.2045 | 0.227 | 0.245 | 0.263 |
272 | 0.033 | 0.058 | 0.082 | 0.106 | 0.128 | 0.149 | 0.168 | 0.187 | 0.202 | 0.217 |
152 | 0.019 | 0.033 | 0.047 | 0.06 | 0.073 | 0.085 | 0.096 | 0.107 | 0.1155 | 0.124 |
240 | 0.033 | 0.058 | 0.082 | 0.106 | 0.128 | 0.149 | 0.168 | 0.187 | 0.202 | 0.217 |
228 | 0.028 | 0.05 | 0.07 | 0.091 | 0.011 | 0.128 | 0.144 | 0.16 | 0.173 | 0.186 |
- If the following carbide roughing end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide roughing end mill according to your needs.
Specification |
Flute Dia(D) |
Flute Length (C) |
Shank Dia(D) |
Overall Length(L) |
Φ4*10*d4*50L | 4 | 10 | 4 | 50 |
Φ5*13*d5*50L | 5 | 13 | 5 | 50 |
Φ6*15*d6*50L | 6 | 15 | 6 | 50 |
Φ8*20*d8*60L | 8 | 20 | 8 | 60 |
Φ10*25*d10*75L | 10 | 25 | 10 | 75 |
Φ12*30*d12*75L | 12 | 30 | 12 | 75 |
Φ8*35*d8*100L | 8 | 35 | 8 | 100 |
Φ10*40*d10*100L | 10 | 40 | 10 | 100 |
Φ12*45*d12*100L | 12 | 45 | 12 | 100 |
Φ14*45*d14*100L | 14 | 45 | 14 | 100 |
Φ16*45*d16*100L | 16 | 45 | 16 | 100 |
Φ18*45*d18*100L | 18 | 45 | 18 | 100 |
Φ20*45*d20*100L | 20 | 45 | 20 | 100 |
Instructions:
1. Before using the carbide roughing end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
Q1: What to do if there is a shaking knife during use
Solution: Check the concentricity of the machine and whether the fixture is tightened, and check the workpiece
Whether to clamp, reduce the feed amount, ensure uniform feed speed, and increase the speed
Q2: Why do burrs appear
Solution: If there are burrs on the tool, it may be due to the high hardness of the workpiece and the tool
Not suitable, you can replace it with a better tool. You can consult customer service to recommend a suitable tool for you
Q3: What to do if the chamfer is not caused by a vibrating knife
Solution: If there are burrs on the tool, it may be due to a large machining feed or slow rotation speed,
You can reduce the amount of feed or increase the speed appropriately. You can consult customer service to recommend a suitable solution.
