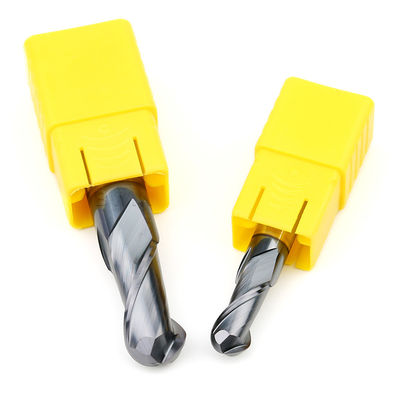

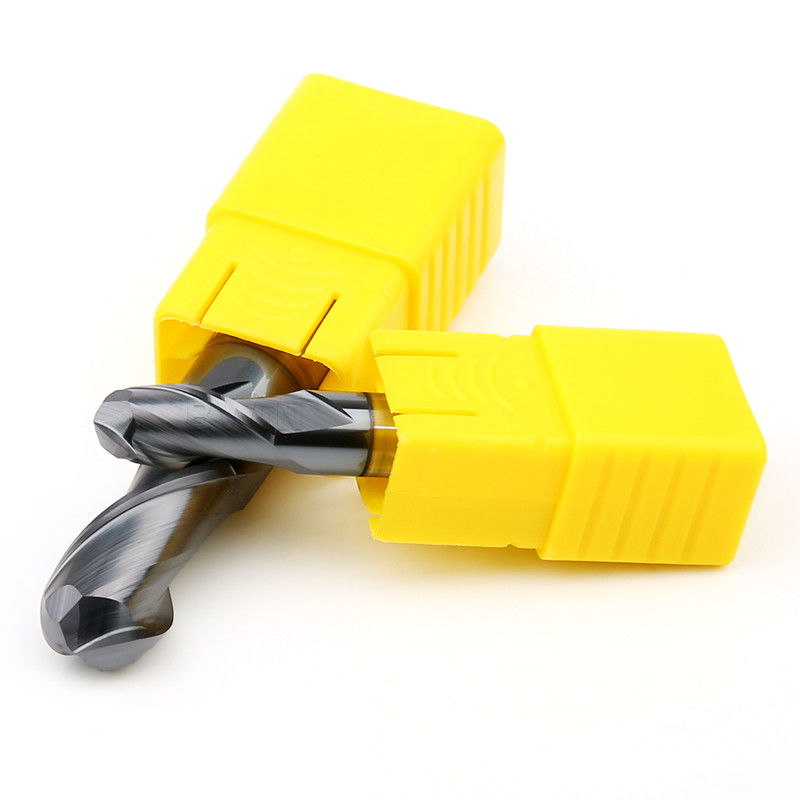

HRC60 Carbide 2 Flutes Length Ball Nose End Mills Tungsten Steel Milling Cutter With Ball Head
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | R2*8*d4*100L-2F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | HRC60 2 Flutes Ball Nose End Mills | Model: | R1~R10 Ball Head Endmill |
|---|---|---|---|
| Material: | Carbide Bull Nose Milling Cutters | Workpiece: | Cast Iron, Alloy Steel, Carbon Steel, Etc |
| Coating: | TiAlN | HRC: | HRC60 |
| Feature: | High Strength Blade | Application: | Milling Tools |
| Package: | 1pcs/Plastic Box | Delivery Time: | 6-14 Days |
| High Light: | HRC60 Ball Nose End Mills,2 Flutes Ball Nose End Mills,Ball Head Tungsten Steel Milling Cutter |
||
Product Description
Description
The HRC60 2F ball nose milling cutter is made of imported tungsten steel material and finely ground. It can directly perform high-speed rough to fine machining on heat treated materials below 60 ° C, reducing tool changes and improving processing efficiency; The double edged belt with a 35 ° spiral angle design makes the milling cutter more wear-resistant and reduces product burrs during processing; The design of the blade passing through the center effectively reduces cutting resistance; Double blade design, effectively improving the rigidity of the blade and the surface smoothness of the workpiece; The universal chamfered circular handle design is convenient to use, has good compatibility, enhances the seismic resistance and cutting speed of the milling cutter, and ensures tighter clamping without slipping.
Carbide material introdution
| Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
Details |
Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
| Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
|
Characteristic
|
Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Bronze | Bronze and gold | Blue | |
|
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
| Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
| Most suitable for carbide cutting tools, turning insert | |||||
Feature
- Excellent steel
- Fast cutting
- Thermal shock resistance
- Low cutting resistance
- Low coefficient of thermal expansion
Applications of carbide end mill
Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, aluminum alloy, copper alloy, plastic, wood, magnesium alloy, zinc alloy, aluminum parts, etc
Product specifications of carbide end mill
| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| R0.5*2*d4*50L | 0.5 | 2 | 4 | 50 |
| R0.75*3*d4*50L | 0.75 | 3 | 4 | 50 |
| R1*4*d4*50L | 1 | 4 | 4 | 50 |
| R1.25*5*d4*50L | 1.25 | 5 | 4 | 50 |
| R1.5*6*d4*50L | 1.5 | 6 | 4 | 50 |
| R1.75*7*d4*50L | 1.75 | 7 | 4 | 50 |
| R2*8*d4*50L | 2 | 8 | 4 | 50 |
| R2.5*10*d5*50L | 2.5 | 10 | 5 | 50 |
| R3*12*d6*50L | 3 | 12 | 6 | 50 |
| R4*16*d8*60L | 4 | 16 | 8 | 60 |
| R5*20*d10*75L | 5 | 20 | 10 | 75 |
| R6*24*d12*100L | 6 | 24 | 12 | 100 |
| R7*28*d14*150L | 7 | 28 | 14 | 150 |
| R8*32*d16*100L | 8 | 32 | 16 | 100 |
| R9*36*d18*100L | 9 | 36 | 18 | 100 |
| R10*40*d20*100L | 10 | 40 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
Instructions of carbide end mill
1. Handle with care to avoid impact damage.
2. When loading and unloading milling cutters, it is advisable to use a cloth to protect them from injury to hands or damage to the cutting edge due to falling
3. During milling, the milling cutter should be fully separated from the working object before starting the machine to avoid damaging the cutter due to impact on the working object
4. The distance between the cutting edge of the milling cutter and the collet should be as short as possible to reduce the vibration of the milling cutter. When selecting the length of the cutting tool, it should be avoided to be too long
Advantage
BWIN Precision Tools Co., Ltd. was established in 2014, specializing in the technical development and product production of hard alloy cutting tools. It has introduced high-precision tool grinding centers from Switzerland and Germany. Produce integral hard alloy cutting tools for milling and metal processing, and can undertake the design and manufacturing of non-standard cutting tools. Our company uses brands such as "Kenna" and "Sumitomo" as raw materials, as well as domestic hard alloy rods. We use Swiss precision measuring tools and tool detectors to strictly control the production process to ensure the quality of the tools.
Our company has considerable technical strength, strong production capacity, scientific management, and the principle of "survival by quality, development by reputation". We constantly strive to provide customers with better products.
