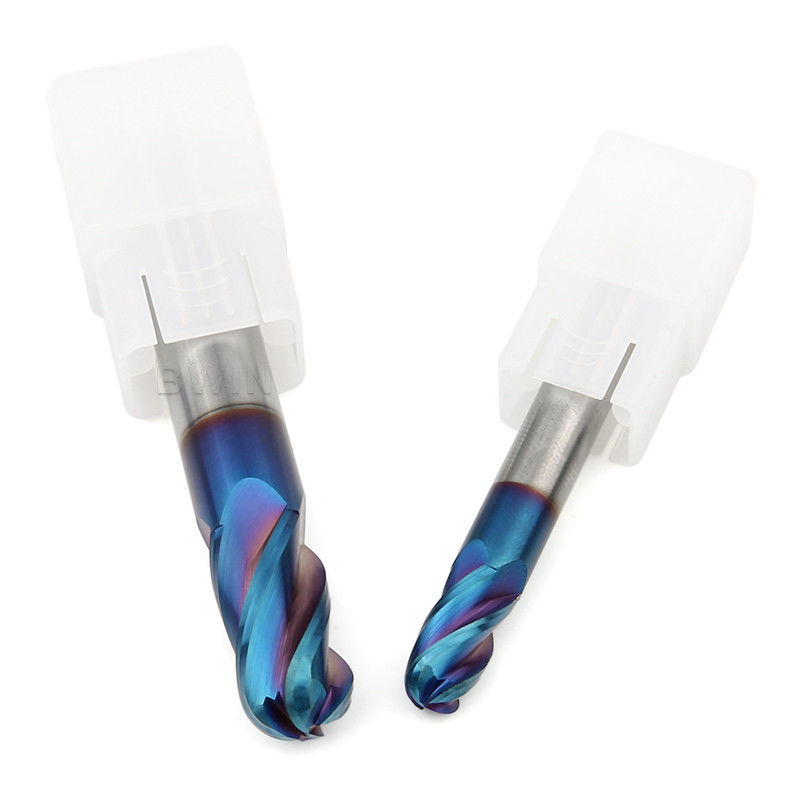

Standard 6mm Carbide Ball Nose End Mill HRC65 4 Flutes Ballnose End Milling Cutter
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | R2*8*d4*100L-2F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | HRC65 Ballnose End Milling Cutter | Model: | 6mm Carbide Ball Nose End Mill |
|---|---|---|---|
| Material: | Carbide Ball Nose Milling Cutter | Workpiece: | Cast Iron, Alloy Steel, Carbon Steel, Etc |
| Coating: | Colorful Coating | HRC: | HRC65 |
| Feature: | Low Cutting Resistance | Application: | Milling Tools |
| Package: | 1pcs/Plastic Box | Delivery Time: | 6-14 Days |
| Highlight: | Carbide Ball Nose End Mill,6mm Ball Nose End Mill,Ballnose End Milling Cutter |
||
Product Description
Description
The HRC65 4F ball nose end mill is made of high-quality tungsten steel material, which has excellent characteristics such as high hardness, high wear resistance, low expansion coefficient, strong oxidation resistance, and good corrosion resistance; Four edge cutting is suitable for semi precision machining and precision machining of various curved surfaces and arc grooves; Suitable for processing materials below HRC63 °, such as pre hardened steel, alloy steel, cast iron, stainless steel, quenched steel, ductile iron, etc; After grinding the tool, the adhering particles on the tool are completely removed through passivation technology, and the blade edge is passivated, making it more convenient to process high hardness materials, preventing edge collapse, and extending the service life of the tool.
Carbide material introdution
| Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
Details |
Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
| Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
|
Characteristic
|
Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Bronze | Bronze and gold | Blue | |
|
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
| Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
| Most suitable for carbide cutting tools, turning insert | |||||
Feature
- Good wear resistance
- Good toughness
- High Flexural strength
- Good chip removal performance
- Widely used
Applications of carbide end mill
Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, aluminum alloy, copper alloy, plastic, wood, magnesium alloy, zinc alloy, aluminum parts, etc
Product specifications of carbide end mill
| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| R0.5*2*d4*50L | 0.5 | 2 | 4 | 50 |
| R0.75*3*d4*50L | 0.75 | 3 | 4 | 50 |
| R1*4*d4*50L | 1 | 4 | 4 | 50 |
| R1.25*5*d4*50L | 1.25 | 5 | 4 | 50 |
| R1.5*6*d4*50L | 1.5 | 6 | 4 | 50 |
| R1.75*7*d4*50L | 1.75 | 7 | 4 | 50 |
| R2*8*d4*50L | 2 | 8 | 4 | 50 |
| R2.5*10*d5*50L | 2.5 | 10 | 5 | 50 |
| R3*12*d6*50L | 3 | 12 | 6 | 50 |
| R4*16*d8*60L | 4 | 16 | 8 | 60 |
| R5*20*d10*75L | 5 | 20 | 10 | 75 |
| R6*24*d12*100L | 6 | 24 | 12 | 100 |
| R7*28*d14*150L | 7 | 28 | 14 | 150 |
| R8*32*d16*100L | 8 | 32 | 16 | 100 |
| R9*36*d18*100L | 9 | 36 | 18 | 100 |
| R10*40*d20*100L | 10 | 40 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
Instructions of carbide end mill
1. Handle with care to avoid impact damage.
2. When loading and unloading milling cutters, it is advisable to use a cloth to protect them from injury to hands or damage to the cutting edge due to falling
3. During milling, the milling cutter should be fully separated from the working object before starting the machine to avoid damaging the cutter due to impact on the working object
4. The distance between the cutting edge of the milling cutter and the collet should be as short as possible to reduce the vibration of the milling cutter. When selecting the length of the cutting tool, it should be avoided to be too long
Advantage
1. Professional shopping guide
Tool selection helps enterprises reduce costs and increase efficiency
2. Technical team
Provide comprehensive machining supporting plans and non-standard production plans
3. Authentic guarantee
Numerous brand first level agents, directly supplied by manufacturers
4. Adequate inventory
Over 6000 square meters warehouse distribution center with complete product specifications
