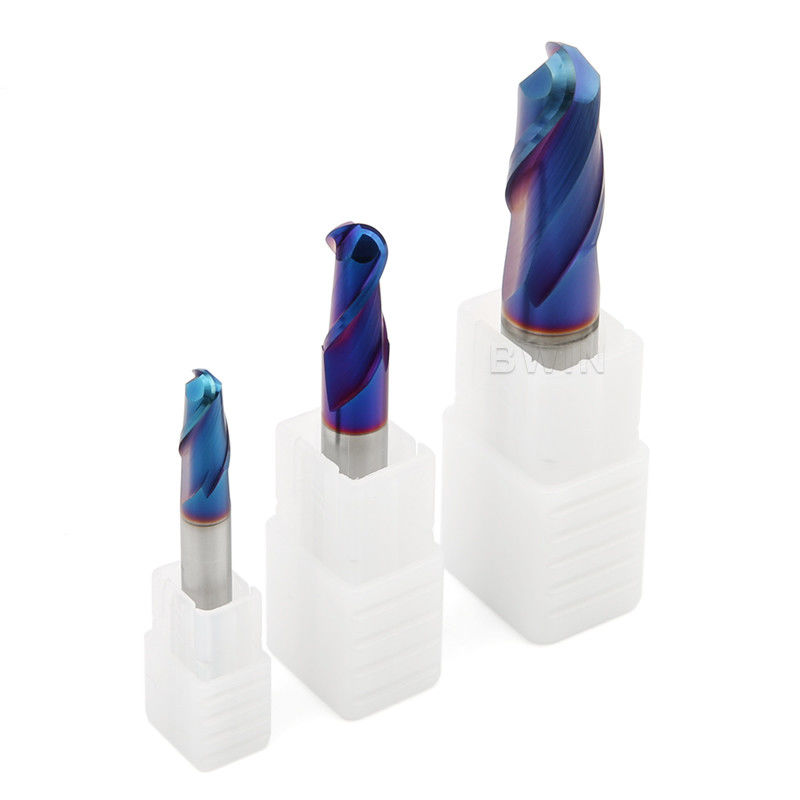

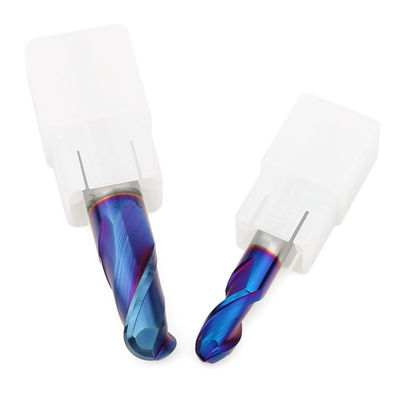

65 Degree Tungsten Steel Milling Cutter 2 Flutes Ball Nose End Mills HRC 65 Bull Nose End Mill
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | R2*8*d4*100L-2F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | 65 Degree 2F Ball Nose Milling Cutter | Model: | 2 Flutes Ball Nose End Mills |
|---|---|---|---|
| Material: | Tungsten Steel Bull Nose Milling Cutter | Workpiece: | Cast Iron, Alloy Steel, Carbon Steel, Etc |
| Coating: | DLC | HRC: | HRC65 |
| Feature: | Oxidize Resistance | Application: | Milling Tools |
| Package: | 1pcs/Plastic Box | Delivery Time: | 6-14 Days |
| High Light: | 65 Degree Tungsten Steel Milling Cutter,Ball Nose Tungsten Steel Milling Cutter,2 Flutes Ball Nose End Mills |
||
Product Description
Description
The overall tungsten steel material of HRC65 2F ball cutter is made of ultra-fine particle high hardness tungsten steel bars, ensuring the working performance of each milling cutter; Optimize on the basis of double blade design to enhance the rigidity of the blade and effectively remove cutting burrs; The cutting edge is covered with titanium silicon coating, which can directly perform high-speed rough processing to fine processing of the material, reducing the number of tool changes; Ultra wide capacity chip removal has strong cutting ability, which can achieve high-speed machining and higher workpiece accuracy. The large core diameter design greatly enhances the rigidity and seismic resistance of the cutting tool, reduces tool breakage, and improves processing efficiency; The chamfered design of the handle allows for convenient clamping.
Carbide material introdution
| Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
Details |
Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
| Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
|
Characteristic
|
Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Bronze | Bronze and gold | Blue | |
|
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
| Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
| Most suitable for carbide cutting tools, turning insert | |||||
Feature
- Excellent substrate
- Efficient processing
- Smooth cutting
- Excellent performance
- High durability
- High stability
Applications of carbide end mill
Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, aluminum alloy, copper alloy, plastic, wood, magnesium alloy, zinc alloy, aluminum parts, etc
Product specifications of carbide end mill
| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| R0.5*2*d4*50L | 0.5 | 2 | 4 | 50 |
| R0.75*3*d4*50L | 0.75 | 3 | 4 | 50 |
| R1*4*d4*50L | 1 | 4 | 4 | 50 |
| R1.25*5*d4*50L | 1.25 | 5 | 4 | 50 |
| R1.5*6*d4*50L | 1.5 | 6 | 4 | 50 |
| R1.75*7*d4*50L | 1.75 | 7 | 4 | 50 |
| R2*8*d4*50L | 2 | 8 | 4 | 50 |
| R2.5*10*d5*50L | 2.5 | 10 | 5 | 50 |
| R3*12*d6*50L | 3 | 12 | 6 | 50 |
| R4*16*d8*60L | 4 | 16 | 8 | 60 |
| R5*20*d10*75L | 5 | 20 | 10 | 75 |
| R6*24*d12*100L | 6 | 24 | 12 | 100 |
| R7*28*d14*150L | 7 | 28 | 14 | 150 |
| R8*32*d16*100L | 8 | 32 | 16 | 100 |
| R9*36*d18*100L | 9 | 36 | 18 | 100 |
| R10*40*d20*100L | 10 | 40 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
Instructions of carbide end mill
1. Handle with care to avoid impact damage.
2. When loading and unloading milling cutters, it is advisable to use a cloth to protect them from injury to hands or damage to the cutting edge due to falling
3. During milling, the milling cutter should be fully separated from the working object before starting the machine to avoid damaging the cutter due to impact on the working object
4. The distance between the cutting edge of the milling cutter and the collet should be as short as possible to reduce the vibration of the milling cutter. When selecting the length of the cutting tool, it should be avoided to be too long
Advantage
1. Honest merchants, reasonable prices, and guaranteed quality
2. Large inventory, sufficient supply, and high cost-effectiveness
3. Customer service responds promptly and delivers quickly
4. Provide after-sales guarantee, so that you have no worries after sales
