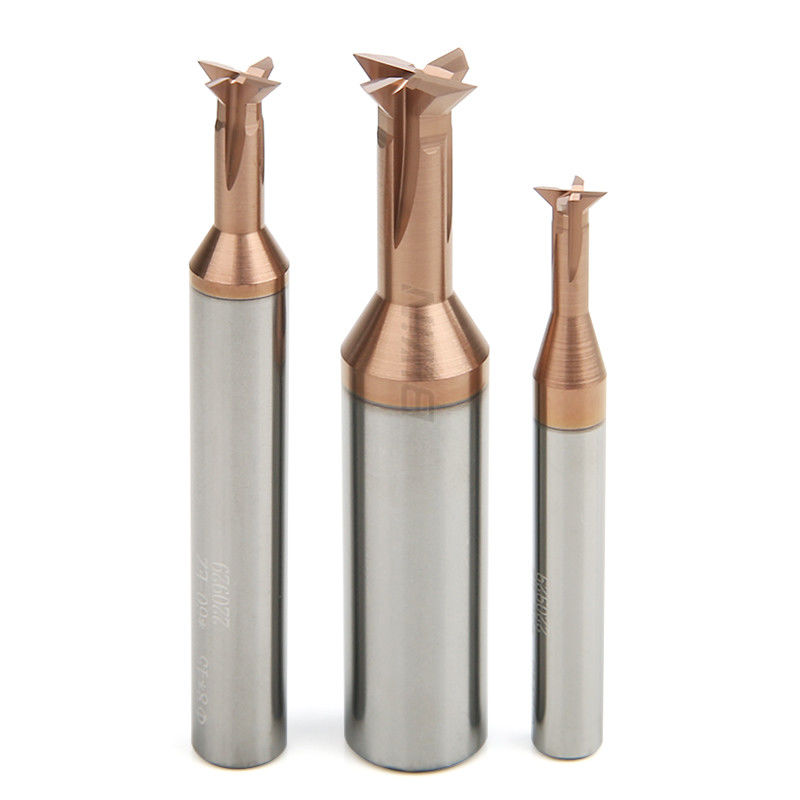

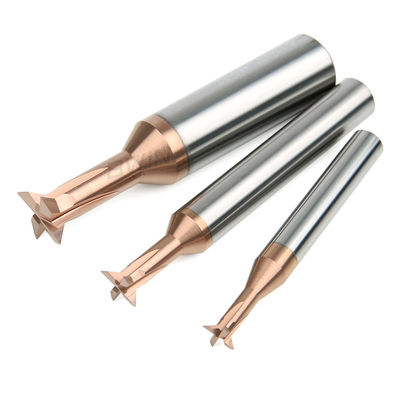

Dovetail Milling Cutter Tungsten Steel Alloy Carbide Dovetail Sharp Endmill
Product Details:
Place of Origin: | China |
Brand Name: | BWIN |
Model Number: | D5*45°*50L-4T |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs/box |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic box |
Delivery Time: | 7 work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1-10000pcs 7days |
Detail Information |
|||
Product Name: | Carbide Dovetail Sharp Endmill | Model: | 45°/60°/75° Cnc Dovetai Endmill |
---|---|---|---|
Material: | Tungsten Steel Alloy | Workpiece: | Die Steel |
Usage: | CNC | Coating: | AlTiSiN |
HRC: | HRC55 | Feature: | Sharp And Durable |
Application: | CNC Milling Tool | Package: | 1pcs/Box |
Highlight: | Tungsten Steel Dovetail Milling Cutter,Carbide Dovetail Milling Cutter,Sharp Dovetail Endmill |
Product Description
Quick Details OF Dovetail Milling Cutter
- Tungsten steel material, wear-resistant and durable
- Large helix angle design
- Blade and straight groove chip removal
- Reasonable void avoidance design of the blade
- Universal Round Handle Chamfer Design
Description OF Dovetail End Mill
The HRC55 dovetail milling cutter head adopts a suitable negative rake angle design, is manufactured through grinding process, and has a spiral design for smooth chip removal, preventing tool sticking, reducing heat generation, and improving cutting speed; Ultra wide capacity chip removal has strong cutting ability, smoother chip removal cutting, and can achieve efficient machining, with higher workpiece accuracy and luster; Imported passivation equipment, spray type to increase the corrosion resistance and wear resistance of the tool, careful grinding makes the tool edge free of burrs, and the product chamfer has high smoothness
Carbide dovetail end mill: suitable for materials such as iron, carbon steel, copper, stainless steel, alloy steel, modulation steel, spring steel, etc
Milling Parameters OF Dovetail Endmill
HRC55 Carbide Dovetail End Mill | Tool length | fz&v | |||||
Short | 1 | ||||||
Long1 | 0.9 | ||||||
Overlength | 0.8 | ||||||
Speciality | 0.6 | ||||||
Type | Material | Strength N/mm² Hardness HRC |
Cooling | ||||
Air | Dry cutting | Lubricating fluid | |||||
P | PI | P1.1 | Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel | <700 | √ | √ | √ |
P1.2 | quenched and tempered steel | <1200 | √ | √ | √ | ||
P2 | P2.1 | Alloyed nitrided steel, carburized steel and quenched and tempered steel | <900 | √ | √ | √ | |
P2.2 | Tool steel, bearing steel, spring steel and high-speed steel | <1400 | √ | √ | |||
P3 | P3.1 | Tool steel, bearing steel, spring steel and high-speed steel | <900 | √ | √ | √ | |
P3.2 | Tool steel, bearing steel, spring steel and high-speed steel | <1500 | √ | √ | |||
M | M1 | M1.1 | austenitic stainless steel | <700 | √ | √ | |
M1.2 | Ferritic/austenitic (bicrystal) stainless steel | <1000 | √ | ||||
M2 | M2.1 | Austenitic stainless cast steel | <700 | √ | √ | ||
M3 | M3.1 | Ferritic/austenitic (bicrystal) stainless cast steel | <1000 | √ | |||
K | K1 | K1.1 | Flake graphite cast iron (gray cast iron), GJL | <300 | √ | √ | √ |
K2 | K2.1 | Ductile iron, GJS | <500 | √ | √ | √ | |
K2.2 | Ductile iron, GJS | 500-800 | √ | √ | √ | ||
K2.3 | Ductile iron, GJS | >800 | √ | √ | √ | ||
K3 | K3.1 | Vermicular graphite cast iron, GJV; Malleable cast iron, GJM | <500 | √ | √ | √ | |
K3.2 | Vermicular graphite cast iron, GJV; Malleable cast iron, GJM | >500 | √ | √ | √ |
Slotting | ||||||||||
Vc (m/min) |
fz(mm/tooth) | |||||||||
Diameter | ||||||||||
2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
112 | 0.01 | 0.018 | 0.026 | 0.034 | 0.041 | 0.048 | 0.054 | 0.06 | 0.065 | 0.069 |
92 | 0.01 | 0.017 | 0.025 | 0.032 | 0.038 | 0.045 | 0.0505 | 0.056 | 0.061 | 0.065 |
100 | 0.01 | 0.018 | 0.026 | 0.034 | 0.041 | 0.048 | 0.054 | 0.06 | 0.065 | 0.069 |
72 | 0.009 | 0.015 | 0.022 | 0.028 | 0.034 | 0.04 | 0.045 | 0.05 | 0.054 | 0.058 |
64 | 0.01 | 0.018 | 0.025 | 0.032 | 0.039 | 0.045 | 0.051 | 0.057 | 0.062 | 0.066 |
56 | 0.009 | 0.016 | 0.023 | 0.029 | 0.036 | 0.041 | 0.0465 | 0.052 | 0.056 | 0.06 |
44 | 0.007 | 0.012 | 0.018 | 0.023 | 0.027 | 0.032 | 0.036 | 0.04 | 0.043 | 0.046 |
68 | 0.01 | 0.018 | 0.025 | 0.033 | 0.04 | 0.046 | 0.052 | 0.058 | 0.063 | 0.067 |
44 | 0.005 | 0.009 | 0.012 | 0.016 | 0.019 | 0.022 | 0.025 | 0.028 | 0.030 | 0.032 |
32 | 0.006 | 0.011 | 0.015 | 0.02 | 0.024 | 0.028 | 0.0315 | 0.035 | 0.0375 | 0.04 |
28 | 0.005 | 0.009 | 0.013 | 0.016 | 0.02 | 0.023 | 0.031 | 0.039 | 0.036 | 0.033 |
32 | 0.007 | 0.012 | 0.017 | 0.021 | 0.026 | 0.03 | 0.034 | 0.038 | 0.041 | 0.044 |
32 | 0.005 | 0.009 | 0.013 | 0.017 | 0.021 | 0.024 | 0.027 | 0.03 | 0.0325 | 0.035 |
120 | 0.017 | 0.031 | 0.044 | 0.056 | 0.068 | 0.08 | 0.09 | 0.1 | 0.05575 | 0.0115 |
112 | 0.015 | 0.026 | 0.037 | 0.048 | 0.058 | 0.068 | 0.0765 | 0.085 | 0.0915 | 0.098 |
92 | 0.012 | 0.022 | 0.031 | 0.039 | 0.048 | 0.056 | 0.063 | 0.07 | 0.0755 | 0.081 |
52 | 0.007 | 0.012 | 0.018 | 0.023 | 0.027 | 0.032 | 0.036 | 0.04 | 0.043 | 0.046 |
80 | 0.012 | 0.022 | 0.031 | 0.039 | 0.048 | 0.056 | 0.063 | 0.07 | 0.0755 | 0.081 |
76 | 0.01 | 0.018 | 0.026 | 0.034 | 0.041 | 0.048 | 0.054 | 0.06 | 0.0645 |
0.069 |
Roughing | ||||||||||
Vc (m/min) |
fz(mm/tooth) | |||||||||
Diameter | ||||||||||
2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
228 | 0.018 | 0.031 | 0.045 | 0.057 | 0.070 | 0.081 | 0.091 | 0.101 | 0.110 | 0.118 |
208 | 0.017 | 0.029 | 0.042 | 0.054 | 0.065 | 0.071 | 0.083 | 0.095 | 0.103 | 0.11 |
184 | 0.018 | 0.031 | 0.045 | 0.057 | 0.070 | 0.081 | 0.091 | 0.101 | 0.110 | 0.118 |
144 | 0.015 | 0.026 | 0.037 | 0.048 | 0.058 | 0.068 | 0.077 | 0.085 | 0.092 | 0.098 |
132 | 0.017 | 0.03 | 0.042 | 0.054 | 0.066 | 0.077 | 0.087 | 0.096 | 0.104 | 0.112 |
112 | 0.015 | 0.027 | 0.039 | 0.05 | 0.060 | 0.07 | 0.079 | 0.088 | 0.095 | 0.102 |
92 | 0.012 | 0.021 | 0.03 | 0.038 | 0.046 | 0.054 | 0.061 | 0.068 | 0.073 | 0.078 |
140 | 0.017 | 0.03 | 0.043 | 0.055 | 0.067 | 0.078 | 0.088 | 0.098 | 0.106 | 0.114 |
92 | 0.008 | 0.015 | 0.021 | 0.027 | 0.032 | 0.038 | 0.043 | 0.047 | 0.051 | 0.055 |
60 | 0.011 | 0.018 | 0.026 | 0.033 | 0.041 | 0.047 | 0.053 | 0.059 | 0.064 | 0.069 |
56 | 0.009 | 0.015 | 0.022 | 0.028 | 0.034 | 0.039 | 0.044 | 0.049 | 0.053 | 0.057 |
68 | 0.011 | 0.02 | 0.028 | 0.036 | 0.044 | 0.051 | 0.0575 | 0.064 | 0.069 | 0.074 |
60 | 0.009 | 0.016 | 0.022 | 0.029 | 0.035 | 0.041 | 0.046 | 0.051 | 0.055 | 0.059 |
248 | 0.03 | 0.052 | 0.074 | 0.096 | 0.0116 | 0.135 | 0.152 | 0.169 | 0.1825 | 0.196 |
228 | 0.025 | 0.044 | 0.063 | 0.081 | 0.099 | 0.115 | 0.1295 | 0.144 | 0.155 | 0.166 |
184 | 0.021 | 0.037 | 0.052 | 0.067 | 0.081 | 0.095 | 0.1065 | 0.118 | 0.1275 | 0.137 |
104 | 0.012 | 0.021 | 0.03 | 0.038 | 0.046 | 0.054 | 0.061 | 0.068 | 0.073 | 0.078 |
164 | 0.021 | 0.037 | 0.052 | 0.067 | 0.081 | 0.095 | 0.1065 | 0.118 | 0.1275 | 0.137 |
156 | 0.018 | 0.031 | 0.045 | 0.057 | 0.07 | 0.081 | 0.091 | 0.101 | 0.1095 | 0.118 |
Finish | ||||||||||
Vc (m/min) |
fz(mm/tooth) | |||||||||
Diameter | ||||||||||
2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
332 | 0.028 | 0.05 | 0.07 | 0.091 | 0.11 | 0.128 | 0.144 | 0.16 | 0.173 | 0.186 |
272 | 0.026 | 0.046 | 0.066 | 0.085 | 0.103 | 0.12 | 0.135 | 0.15 | 0.162 | 0.173 |
304 | 0.028 | 0.05 | 0.07 | 0.091 | 0.11 | 0.128 | 0.144 | 0.16 | 0.173 | 0.186 |
212 | 0.023 | 0.041 | 0.059 | 0.076 | 0.092 | 0.107 | 0.121 | 0.134 | 0.145 | 0.155 |
196 | 0.027 | 0.047 | 0.067 | 0.086 | 0.104 | 0.122 | 0.137 | 0.152 | 0.165 | 0.177 |
168 | 0.024 | 0.043 | 0.061 | 0.079 | 0.095 | 0.111 | 0.125 | 0.139 | 0.150 | 0.161 |
136 | 0.019 | 0.033 | 0.047 | 0.06 | 0.073 | 0.085 | 0.096 | 0.107 | 0.116 | 0.124 |
204 | 0.027 | 0.048 | 0.068 | 0.088 | 0.106 | 0.124 | 0.140 | 0.155 | 0.168 | 0.18 |
136 | 0.013 | 0.023 | 0.033 | 0.042 | 0.051 | 0.06 | 0.068 | 0.075 | 0.081 | 0.087 |
92 | 0.016 | 0.029 | 0.041 | 0.053 | 0.064 | 0.075 | 0.0845 | 0.094 | 0.101 | 0.108 |
84 | 0.014 | 0.024 | 0.034 | 0.044 | 0.053 | 0.062 | 0.0695 | 0.077 | 0.0835 | 0.09 |
100 | 0.018 | 0.031 | 0.045 | 0.057 | 0.07 | 0.081 | 0.0915 | 0.102 | 0.11 | 0.118 |
92 | 0.014 | 0.025 | 0.035 | 0.045 | 0.055 | 0.064 | 0.072 | 0.08 | 0.0865 | 0.093 |
364 | 0.047 | 0.083 | 0.117 | 0.151 | 0.183 | 0.214 | 0.2405 | 0.267 | 0.149 | 0.031 |
332 | 0.04 | 0.07 | 0.1 | 0.128 | 0.156 | 0.182 | 0.2045 | 0.227 | 0.245 | 0.263 |
272 | 0.033 | 0.058 | 0.082 | 0.106 | 0.128 | 0.149 | 0.168 | 0.187 | 0.202 | 0.217 |
152 | 0.019 | 0.033 | 0.047 | 0.06 | 0.073 | 0.085 | 0.096 | 0.107 | 0.1155 | 0.124 |
240 | 0.033 | 0.058 | 0.082 | 0.106 | 0.128 | 0.149 | 0.168 | 0.187 | 0.202 | 0.217 |
228 | 0.028 | 0.05 | 0.07 | 0.091 | 0.011 | 0.128 | 0.144 | 0.16 | 0.173 | 0.186 |
- If the following carbide dovetail milling cutter cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
d1 | A | d2 | L2 | L1 | D | L | F |
2 | 45°/60°/75° | 1 | 3 | 0.5/0.9/2 | 4 | 50 | 4 |
3 | 45°/60°/75° | 1.5 | 5 | 0.7/1.4/2.7 | 3 | 50 | 4 |
4 | 45°/60°/75° | 2 | 6 | 1/1.7/3.7 | 4 | 50 | 4 |
5 | 45°/60°/75° | 2.5 | 8 | 1.2/2.1/4.6 | 5 | 50 | 4 |
6 | 45°/60°/75° | 3 | 8 | 1.5/2.6/5.5 | 6 | 50 | 4 |
7 | 45°/60°/75° | 3.5 | 10 | 1.7/3/6.5 | 7 | 60 | 4 |
8 | 45°/60°/75° | 4 | 10 | 2/3.4/7.4 | 8 | 60 | 4 |
9 | 45°/60°/75° | 4.5 | 15 | 2.2/3.8/8.3 | 9 | 60 | 4 |
10 | 45°/60°/75° | 5 | 15 | 2.5/4.3/9.3 | 10 | 60 | 4 |
11 | 45°/60°/75° | 5.5 | 15 | 2.7/4.7/10.2 | 11 | 60 | 4 |
12 | 45°/60°/75° | 6 | 15 | 3/5.2/11.1 | 12 | 60 | 4 |
14 | 45°/60°/75° | 7 | 20 | 3.5/6.1/13 | 14 | 65 | 4 |
16 | 45°/60°/75° | 8 | 20 | 4/6.9/14.9 | 16 | 65 | 4 |
20 | 45°/60°/75° | 10 | 25 | 5/8.6/18.6 | 20 | 65 | 4 |
Instructions OF Dovetail Endmill
1. Before using the carbide dovetail end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide dovetail end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications OF Dovetail End Mill
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
Q1: The surface of the workpiece is glossy, but the concavity and convexity are large
resolvent:
(1) Reduce the feed.
(2) The low number of cutting edges changes the high number of cutting edges to improve the surface fineness.
Q2: The chip is short and thin, but there are sticky chips
resolvent:
(1) Increase cutting speed.
(2) Change to wet type (using cutting fluid), and use it with vortex tube gun to reduce the tool temperature and avoid overheating.
(3) Perform minor rounding and passivation treatment.
(4) Change from up milling to down milling.
(5) Increase the feed rate or the cutting allowance.
Q3: There are transverse cuts
resolvent:
(1) Perform minor rounding and passivation treatment.
(2) Use water-insoluble cutting fluid.
(3) Change from forward milling to reverse milling.
Q4:The finishing size is too small
resolvent:
(1) Change from up milling to down milling.
(2) Reduce the cutting allowance.
(3) Replace the chuck or spring collet.
(4) Reduce the cutting depth of the end mill.
(5) Increase cutting speed.
