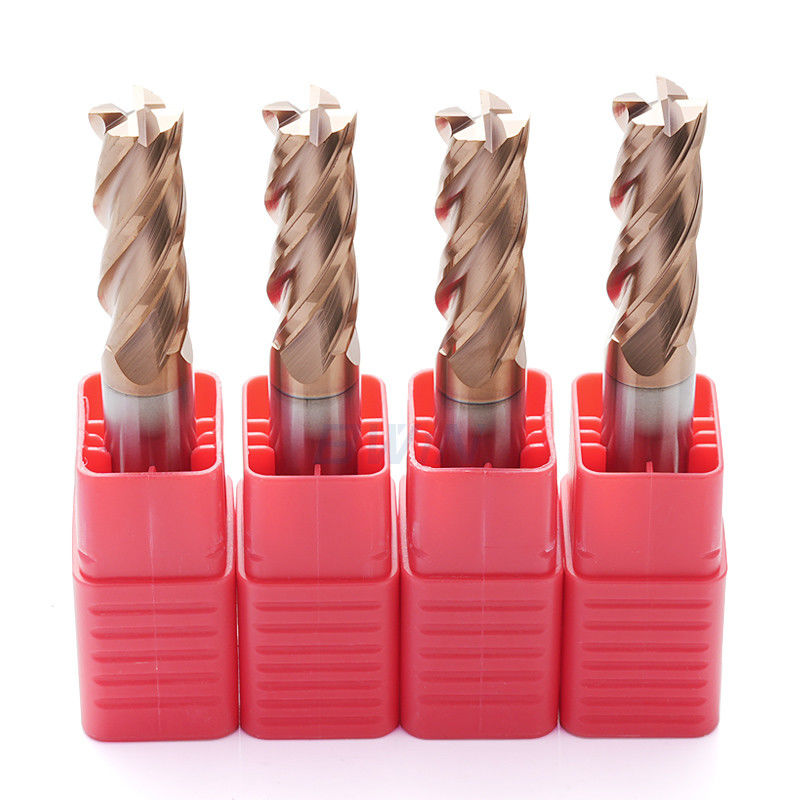

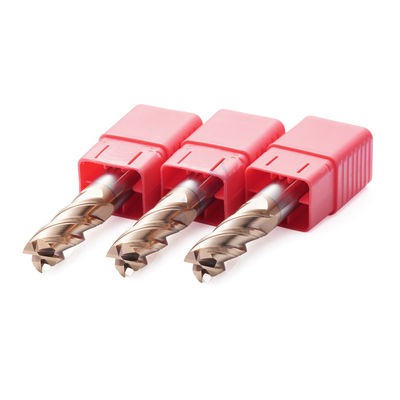

Square End Mill, HRC55, 4 flutes, Carbide, TiSiN Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | Standard size |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-500pcs 7days |
|
Detail Information |
|||
| Product Name: | HRC55 4 Flutes Flat End Mill | Material: | Solid Carbide |
|---|---|---|---|
| Suitable For: | Cast Iron, Alloy Steel, Carbon Steel, Etc | Coating: | TiSiN |
| HRC: | HRC55 | Feature: | High Stability |
| Application: | CNC Milling Tool | Package: | 1pcs/Plastic Box |
Product Description
Features:
- Square end mills, or flat end mills, are general-purpose mills that generate flat-surfaced cuts with perfect 90° corners in the workpiece. Square end mills are used at the roughing stage as well as the finishing stage. Side milling, face milling, shoulder milling, and slotting operations are all possible with a square end mill. An ample selection of end mill materials and coatings allows for cutting in a variety of workpiece materials at a range of cutting speeds.
1. High quality carbide rod:
All cutting materials are from international famous brands, high hardness, long tool life.
| Grade |
HRC45
|
HRC55
|
HRC60
|
HRC65
|
| Mateiral | YG10X | ZK30UF | ZK40SF | GU25UF |
| Details | Grain size 0.8um Co: 10% Flexural strength 3320N/mm2 |
Grain size 0.7um Co: 10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co: 12% Flexural strength 4300N/mm2 |
Grain size 0.4um Co: 10% Flexural strength 4300N/mm2 |
2. Super coating:
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
| Item | Color | Hardness(HV) | Thicknes(UM) | Oxidation Temp.(℃) | Friction Coeffient |
| AlTiN | Black | 3300 | 2.5~3 | 900 | 0.3 |
| TiAlN | Violet | 2800 | 2.5~3 | 800 | 0.3 |
| TiSiN | Bronze | 3600 | 3 | 1000 | 0.45 |
| AlTiSiN | Blue | 4000 | 4 | 1200 | 0.4 |
| Nano | Blue | 42(GPA) | 3 | 1200 | 0.4 |
Applications of carbide end mill
Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, stainless steel, quenched and tempered steel, copper, aluminum, plastic, wood, etc
