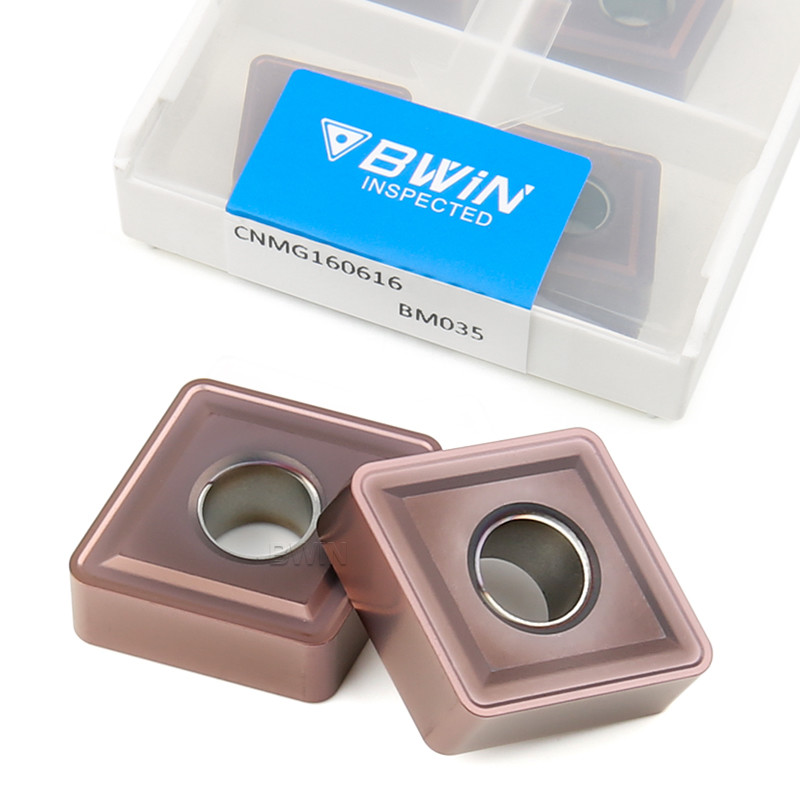

Cnmg160616 Turning Carbide Inserts Cnmg 1204 08 Inserts Good Toughness

Cnmg160616 Turning Carbide Inserts Cnmg 1204 08 Inserts Good Toughness

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: CNMG190616

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information
Product Name: Tungsten Turning Carbide Insert Cnmg160616 Material: Tungsten Carbide Turning Insert Cnmg160608
Workpiece: Cast Iron/Steel/Stainless Steel/Aluminum Usage: External Turning Tool
Color: Yellow/Brown/Fuchsia/Black//No-coated/Two-color Coating/Cermet Coating Coating: PVD CVD
Hardness: HRC40-60 Feature: Fast Feed Cnc Lathe Machine Tool
Application: CNC Lathe Machine Cutting Tool Package: 10pcs/Box
High Light:

Cnmg160616 Turning Carbide Inserts

,

Turning Carbide Inserts Good Toughness

,

Cnmg 1204 08 Inserts Good Toughness

Product Description

Quick Detail:

High hardness

Good toughness

high speed cutting

Good process performance

Strong universality

High reliability



Description:

Cnmg turning carbide inserts are made of tungsten steel, with sharp blade and smooth chip. The new nano gradient composite structure coating has ultra-high nano hardness; Sharp edge, durable, full edge seismic design can suppress chatter during processing; The processing performance is strong, and the workpiece can reach the ideal finish.



Specifications:​

Brand BWIN
Model Cnmg160608 Cnmg160612 Cnmg190616 Cnmg190612
Color Yellow/Brown/Fuchsia/Black//No-coated/Two-color coating/Cermet coating
Workpiece Cast iron/Steel/Stainless steel/Aluminum
Type External Turning Tool
Material Tungsten Turning Carbide Insert
Processing  Medium Cutting
Feature High Hardness
Good Toughness
Good process performance
High Finish Polished
Shock and vibration resistance
Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized OEM, ODM


Cnmg 160616 160608 190616 Tungsten Carbide Inserts 190608 190612 Cnc Lathe Machine Tool

I(mm)
d(mm)
t(mm)
d1(mm)
09
9.525
3.18
3.81
12
12.7
4.76
5.16
16
15.875
6.35
6.35
19
19.05
6.35
7.93



Notice:

1.The turning carbide inserts shall not be collided or dropped on the ground and must be handled with care.

2.Before installing the turning carbide inserts, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.

3.After installation, it is necessary to confirm whether the central hole of the turning carbide inserts is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.

4.When using, do not exceed the specified high speed

5.When the turning carbide inserts are not used, hang the blade vertically on the dry shelf.



Applications:

Our turning carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Cnmg 160616 160608 190616 Tungsten Carbide Inserts 190608 190612 Cnc Lathe Machine Tool



FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.

2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.

3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle

4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.

5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).

6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
