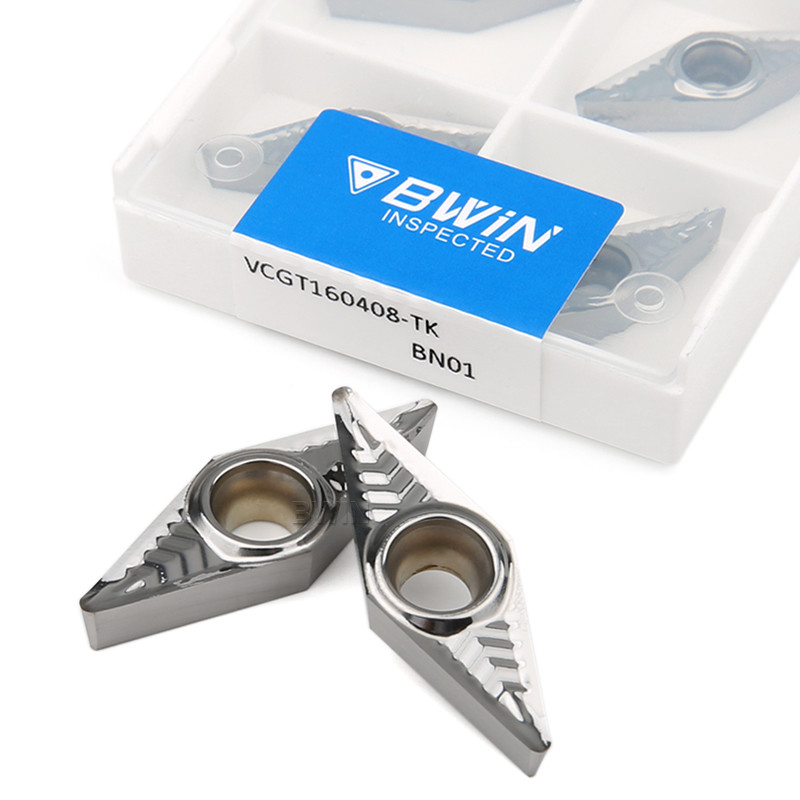

Vcgt 160404 Carbide Cutter Turning Inserts Sharp Edge Vcgt 110302 110304
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | Vcgt160404 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | Vcgt160404 Turning Insert | Material: | Tungsten Aluminum Insert |
|---|---|---|---|
| Workpiece: | Steel/Stainless Steel/Aluminum | Usage: | CNC |
| Color: | Brown/No-coated | Coating: | CVD PVD |
| Hardness: | HRC40-60 | Feature: | Good Chip Breaking |
| Application: | Turning Blade | Package: | 10pcs/Box |
| High Light: | Vcgt 160404 Carbide Cutter Inserts,Carbide Cutter Inserts Sharp Edge,Sharp Edge Turning Carbide Inserts |
||
Product Description
Turning Carbide Inserts Cutting Aluminum Vcgt 160404 110302 110304 110308 160402 160408
Quick Detail:
- High hardness
- Wear resistant and durable
- High finish
- Rhombic slotting
- Sharp edge
- Precision machining
Description:
- VCGT turning carbide inserts are carefully made of high-quality tungsten steel base material. The turning carbide inserts are sharp and the chip breaks smoothly, ensuring wear resistance and service life; The blade is processed with German technology, with stronger overall hardness, more sharp and wear-resistant blade, and longer service life; The unique groove design can make the chip removal faster and smoother, thus ensuring that the chip removal will not hang on the product surface; The blade is sharp and thick, so as to realize the processing state of fast cutting speed but not easy to collapse.
Specifications:
| Brand | BWIN |
| Model | VCGT110302 VCGT110304 VCGT160402 VCGT160404 |
| Color |
Brown/No-coated |
|
Workpiece |
Steel/Stainless steel/Aluminum |
| Type | CNC Cutting Tool |
| Material | Tungsten Carbide Turning Insert |
| Processing Type | Medium Cutting |
| Feature | High hardness |
| Wear resistant and durable | |
| High finish | |
| Rhombic slotting | |
|
Precision machining |
|
| Standard | ISO |
| Quantity | 10pcs/box |
| Weight | 0.015kg |
| Package | Plastic Box |
| Customized Support | OEM, ODM |
Lead Time:
| antity(pieces) | 1 - 3000 | >3000 |
| Lead time (days) | 7 | To be negotiated |
|
I(mm)
|
d(mm)
|
t(mm)
|
d1(mm)
|
|
11
|
6.35
|
3.18
|
2.8~3.4
|
|
16
|
9.525
|
4.76
|
4.4
|
Notice:
- The turning carbide inserts shall not be collided or dropped on the ground and must be handled with care.
- Before installing the turning carbide inserts, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
- After installation, it is necessary to confirm whether the central hole of the turning carbide inserts are firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
- When using, do not exceed the specified high speed
- When the turning carbide inserts are not used, hang the blade vertically on the dry shelf.
Applications:
Our turning carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
Advantages:
1. Honest merchants, reasonable price and quality assurance
2. Large inventory, sufficient supply and high cost performance
3. Customer service responds in time and delivers goods quickly
4. Provide after-sale guarantee to make your after-sale service free
FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
