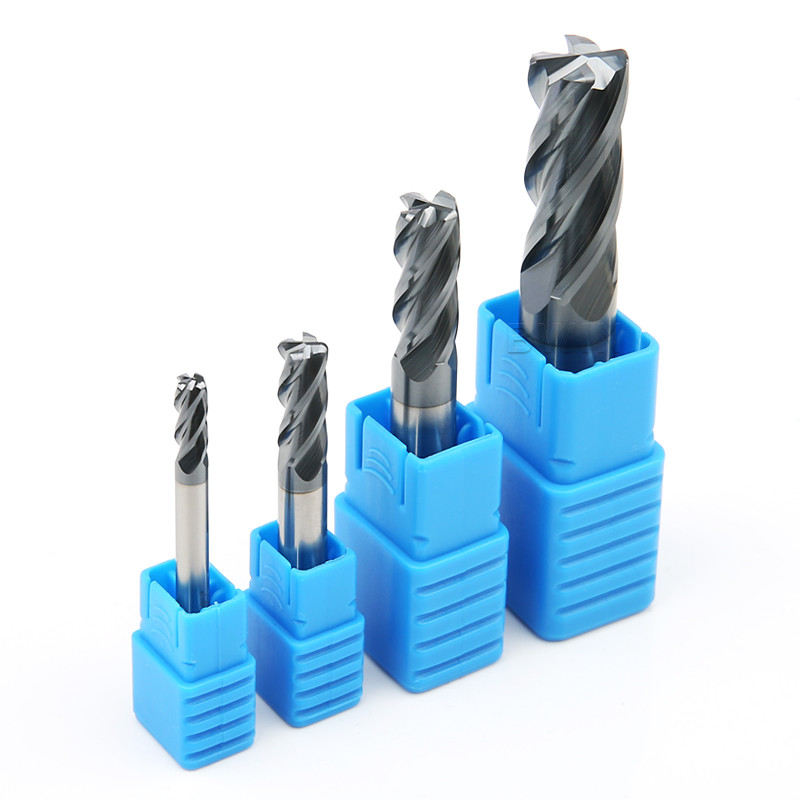

Costomized HRC45 4 Flute Corner Radius End Mill High Feed Milling Cutter
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | Φ4R1.0*20*d4*100L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | High Feed Corner Radius End Mill | Model: | HRC45 4 Flutes Corner Radius End Mill |
|---|---|---|---|
| Material: | Tungsten Carbide Corner Radius Endmill | Workpiece: | Medium Carbon Steel |
| Usage: | Milling | Coating: | AlTiN |
| HRC: | HRC45 | Feature: | High Precision Grinding |
| Application: | CNC Machining | Package: | 1pcs/Box |
| Highlight: | High Feed Corner Radius End Mill,Corner Radius End Mill HRC45,4 Flute Corner Rounding End Mill |
||
Product Description
Characteristic:
- Tungsten steel raw material
- High precision grinding
- Sharp cutting
- Wear-resistant and durable
- Long service life
Description:
- The HRC45 corner radius endmill is made of new ultra-fine particle bar, with high rigidity and wear resistance, which provides a strong guarantee for tool service life; The unique edge design of 7 ° negative front angle takes into account the strength and sharpness of the edge. At the same time, large core diameter is adopted to enhance the rigidity of the tool, making its cutting and chip removal more stable; The design of multiple chip removal grooves, fine grinding of spiral grooves and passivation treatment can effectively avoid the risk of sticking and breaking knives and improve production efficiency; The design of universal rounded tool handle is convenient to use.
Milling parameters:
| HRC45 Carbide End Mill |
Tool length | fz&v | |||||
| Short |
1 |
||||||
| Long1 | 0.9 | ||||||
| Overlength | 0.8 | ||||||
| Speciality | 0.6 | ||||||
| Type | Material |
Strength N/mm²
Hardness HRC |
Cooling | ||||
| Air |
Dry cutting |
Lubricating fluid | |||||
| P | PI |
P1.1 |
Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel | <700 | √ | √ | √ |
| P1.2 | quenched and tempered steel | <1200 | √ | √ | √ | ||
| P2 | P2.1 | Alloyed nitrided steel, carburized steel and quenched and tempered steel | <900 | √ | √ | √ | |
| P2.2 | Tool steel, bearing steel, spring steel and high-speed steel | <1400 | √ | √ | |||
| P3 | P3.1 | Tool steel, bearing steel, spring steel and high-speed steel | <900 | √ | √ | √ | |
| P3.2 | Tool steel, bearing steel, spring steel and high-speed steel | <1500 | √ | √ | |||
 |
Sloting | |||||||||||
| Vc (m/min) |
fz(mm/Tooth) | |||||||||||
| Diameter | ||||||||||||
| 2 | 4 | 6 | 8 | 10 | 12 | 16 | 20 | |||||
| 112 | 0.01 | 0.018 | 0.026 | 0.034 | 0.041 | 0.048 | 0.06 | 0.069 | ||||
| 92 | 0.01 | 0.017 | 0.025 | 0.032 | 0.038 | 0.045 | 0.056 | 0.065 | ||||
| 100 | 0.01 | 0.018 | 0.026 | 0.034 | 0.041 | 0.048 | 0.06 | 0.069 | ||||
| 72 | 0.009 | 0.015 | 0.022 | 0.028 | 0.034 | 0.04 | 0.05 | 0.058 | ||||
| 64 | 0.01 | 0.018 | 0.025 | 0.032 | 0.039 | 0.045 | 0.057 | 0.066 | ||||
| 56 | 0.009 | 0.016 | 0.023 | 0.029 | 0.036 | 0.041 | 0.052 | 0.06 | ||||
|
Roughing | |||||||||||
| Vc (m/min) |
fz(mm/Tooth) | |||||||||||
| Diameter | ||||||||||||
| 2 | 4 | 6 | 8 | 10 | 12 | 16 | 20 | |||||
| 228 | 0.018 | 0.031 | 0.045 | 0.057 | 0.070 | 0.081 | 0.101 | 0.118 | ||||
| 208 | 0.017 | 0.029 | 0.042 | 0.054 | 0.065 | 0.071 | 0.095 | 0.11 | ||||
| 184 | 0.018 | 0.031 | 0.045 | 0.057 | 0.070 | 0.081 | 0.101 | 0.118 | ||||
| 144 | 0.015 | 0.026 | 0.037 | 0.048 | 0.058 | 0.068 | 0.085 | 0.098 | ||||
| 132 | 0.017 | 0.03 | 0.042 | 0.054 | 0.066 | 0.077 | 0.096 | 0.112 | ||||
| 112 | 0.015 | 0.027 | 0.039 | 0.05 | 0.060 | 0.07 | 0.088 | 0.102 | ||||
|
Finish | ||||||||||
| Vc m/min |
fz(mm/Tooth) | ||||||||||
| Diameter | |||||||||||
| 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | ||
| 332 | 0.028 | 0.05 | 0.07 | 0.091 | 0.11 | 0.128 | 0.144 | 0.16 | 0.173 | 0.186 | |
| 272 | 0.026 | 0.046 | 0.066 | 0.085 | 0.103 | 0.12 | 0.135 | 0.15 | 0.162 | 0.173 | |
| 304 | 0.028 | 0.05 | 0.07 | 0.091 | 0.11 | 0.128 | 0.144 | 0.16 | 0.173 | 0.186 | |
| 212 | 0.023 | 0.041 | 0.059 | 0.076 | 0.092 | 0.107 | 0.121 | 0.134 | 0.145 | 0.155 | |
| 196 | 0.027 | 0.047 | 0.067 | 0.086 | 0.104 | 0.122 | 0.137 | 0.152 | 0.165 | 0.177 | |
| 168 | 0.024 | 0.043 | 0.061 | 0.079 | 0.095 | 0.111 | 0.125 | 0.139 | 0.150 | 0.161 | |
- If the following carbide corner radius end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
| Specification | Flute Dia(D) | R angle | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| Φ3R0.5*8*d3*50L | 3 | 0.5 | 8 | 3 | 50 |
| Φ3R1.0*8*d3*50L | 3 | 1.0 | 8 | 3 | 50 |
| Φ2R0.5*5*d4*50L | 2 | 0.5 | 5 | 2 | 50 |
| Φ3R0.5*8*d4*50L | 3 | 0.5 | 8 | 3 | 50 |
| Φ4R0.5*10*d4*50L | 4 | 0.5 | 10 | 4 | 50 |
| Φ3R1.0*8*d4*50L | 3 | 1.0 | 8 | 3 | 50 |
| Φ4R1.0*10*d4*50L | 4 | 1.0 | 10 | 4 | 50 |
| Φ5R0.5*13*d5*50L | 5 | 0.5 | 13 | 5 | 50 |
| Φ5R1.0*25*d5*100L | 5 | 1.0 | 25 | 5 | 100 |
| Φ6R0.5*15*d6*50L | 6 | 0.5 | 15 | 6 | 50 |
| Φ8R0.5*20*d8*60L | 8 | 0.5 | 20 | 8 | 60 |
| Φ8R1.0*28*d8*75L | 8 | 1.0 | 28 | 8 | 75 |
| Φ8R2.0*20*d8*60L | 8 | 2.0 | 20 | 8 | 60 |
| Φ8R3.0*20*d8*60L | 8 | 3.0 | 20 | 8 | 60 |
| Φ10R0.5*25*d10*75L | 10 | 0.5 | 25 | 10 | 75 |
| Φ10R1.0*25*d10*75L | 10 | 1.0 | 25 | 10 | 75 |
| Φ10R1.5*25*d10*75L | 10 | 1.5 | 25 | 10 | 75 |
| Φ10R2.0*25*d10*75L | 10 | 2.0 | 25 | 10 | 75 |
| Φ10R3.0*25*d10*75L | 10 | 3.0 | 25 | 10 | 75 |
Instructions:
1. Before using the carbide corner radius end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
Q1. The tool breaks when cutting in or pulling out the workpiece
The feed rate and cutting depth can be reduced, and the cutting edge length can be shortened to the minimum of the necessary length.
Q2. Tool breaks during normal machining
Reduce the feed rate and cutting depth.
The tool shall be passivated.
Replace the clamp or spring collet.
The tool with high cutting edge number changes the tool with low cutting edge number to improve chip removal and prevent chip blockage.
Replace dry milling with wet milling (using cutting fluid), and use it with vortex tube gun to reduce tool temperature and avoid tool overheating.
If the wet milling fluid supply direction is changed from the front to the oblique rear or transverse top, the coolant flow should be sufficient.
Q3. The tool breaks when the feed direction changes
(1) Use arc interpolation (NC machine tool), or temporarily stop (temporarily) feeding.
(2) Reduce (decrease) the feed before and after the direction change.
(3) Replace the clamp or spring collet.
Q4. Problem: Part of the blade tip breaks
Chamfer the corners with manual grinding.
Change down milling to up milling.
