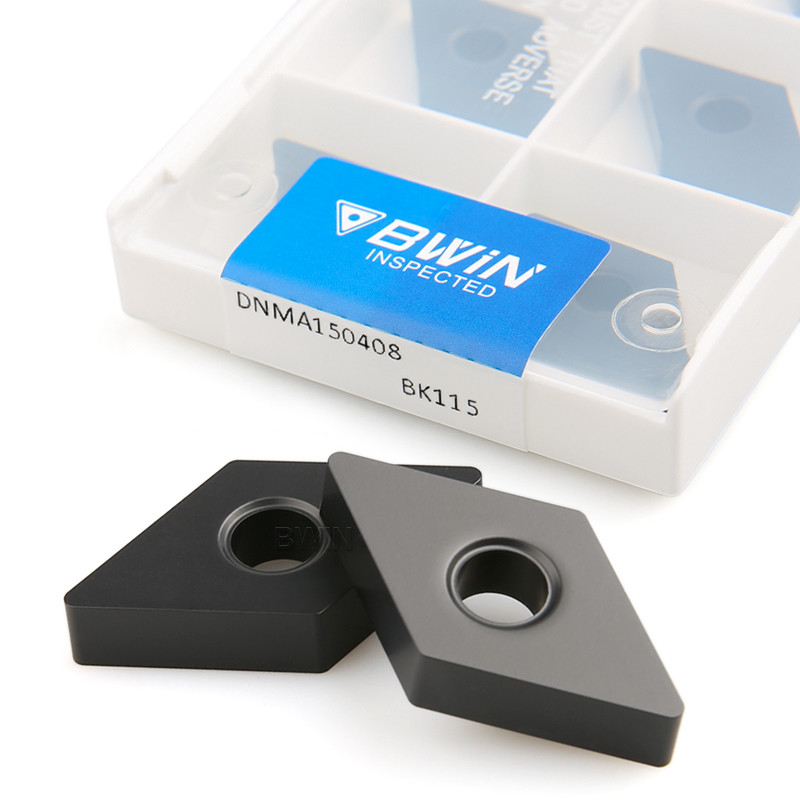

CNC Lathe DNMA150408 Tungsten Carbide Inserts Machine Cutting Tool
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | DNMA150408 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | DNMA Cnc Lathe Carbide Turning Insert | Material: | Carbide |
|---|---|---|---|
| Workpiece: | Cast Iron | Workpiece: | Cast Iron |
| Usage: | Cnc Lathe Machine Turning Insert | Color: | Black |
| Coating: | CVD | Hardness: | HRC40-60 |
| Feature: | Excellent Performance | Application: | Cnc Lathe Machine |
| Package: | 10pcs/Box | ||
| High Light: | DNMA150408 Tungsten Carbide Inserts,DNMA150408 Carbide Turning Insert,DNMA150408 Machine Cutting Tool |
||
Product Description
CNC Lathe DNMA150408 Tungsten Carbide Inserts Machine Cutting Tool
CNC Lathe Carbide Turning Insert DNMA150408 Solid Alloy Machine Cutting Tool
Quick Detail
- High reliability
- Fine cutting
- Wear-resistant and durable
- thermal shock
- High finish
Description
Dnma carbide inserts adopt high-quality cemented carbide raw materials and high heat-resistant and cobalt-rich gradient structure cemented carbide matrix, which has a series of excellent properties such as high hardness, wear resistance, good strength and toughness; Gradient sintering technology is adopted to enhance the impact and wear resistance of the cutting edge, thus improving the quality of the processed products; The unique coating process is exquisite and smooth, without drop marks, reducing surface friction and reducing cutting resistance; Smooth cutting, good chip removal performance, not easy to produce chip accumulation, good surface finish, suitable for finishing and semi-finishing.
Specifications:
|
Brand |
BWIN |
| Model | DNMA150608 |
| Color | Black |
| Workpiece | Cast Iron |
| Type | CNC Lathe Cutting Insert |
| Material | Carbide Machine Lathe Insert |
| Processing Type | Medium Cutting |
| Feature | High reliability |
| Fine cutting | |
| Wear-resistant and durable | |
| thermal shock | |
|
High finish |
|
| Standard | ISO |
| Quantity | 10pcs/box |
| Weight | 0.02kg |
| Package | Plastic Box |
| Customized Support | OEM, ODM |
|
I(mm)
|
d(mm)
|
t(mm)
|
d1(mm)
|
|
11
|
9.525
|
3.18~4.76
|
3.81
|
|
15
|
12.7
|
4.76~6.35
|
5.16
|
Notice:
1.The tungsten carbide inserts shall not be collided or dropped on the ground and must be handled with care.
2.Before installing the carbide blade, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
3.After installation, it is necessary to confirm whether the central hole of the carbide blade is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
4.When using, do not exceed the specified high speed
5.When the tungsten carbide inserts is not used, hang the blade vertically on the dry shelf.
Applications:
Our tungsten carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
