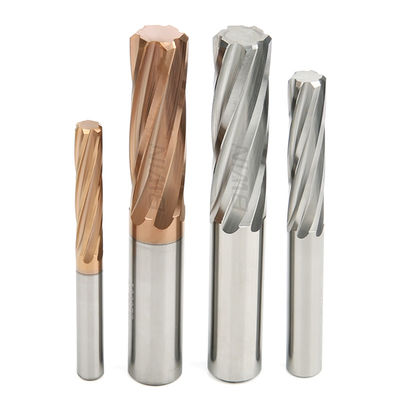

Tungsten Carbide 6 Flute Spiral Flute Reamer CNC Thread Reamer For Aluminum

Tungsten Carbide 6 Flute Spiral Flute Reamer CNC Thread Reamer For Aluminum

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: 4*50

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information
Product Name: HRC55 6 Flute Thread Reamer Model: D1-D20
Material: Tungsten HRC55 Spiral Reamer Workpiece: Aluminum
Usage: Milling Machine Coating: Uncoated
HRC: HRC55 Feature: High Finish
Application: Milling Package: 1pcs/Box
High Light:

Tungsten Carbide Spiral Flute Reamer

,

6 Flute Spiral Flute Reamer

,

Carbide Milling Cutter For Aluminum

Product Description

Quick Detail OF carbide spiral reamer

  • Preferred tungsten steel
  • High wear resistance
  • Precision cutting
  • Smooth chip removal
  • Smooth and clean cut surface
  • Higher efficiency



Description OF carbide spiral reamer

  • The entire body of HRC55 spiral reamer is made of finely ground hard alloy raw materials, which has good wear resistance and strength, stable performance, and long service life; Sharp cutting, not easy to break, efficient operation, reducing tool wear and reducing tool replacement times; Good cutting performance, large chip removal space, smooth chip removal, and avoidance of tool sticking; Optimized clamping design for the handle, easy to use, firm clamping without slipping, greatly improving processing efficiency



Milling parameters

HRC55 Carbide Spiral Flute Reamer
 		 Tool length fz&v
Short

1
Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material

Strength

N/mm²



Hardness

HRC

 Cooling
Air

Dry cutting

 Lubricating fluid
P PI

P1.1

 Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700 √ √ √
P1.2 quenched and tempered steel                                        <1200 √ √ √
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900 √ √ √
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400 √   √
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900 √ √ √
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500 √   √



Tungsten Carbide 6 Flute Spiral Flute Reamer CNC Thread Reamer For Aluminum 0 Sloting
Vc
(m/min)		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 16 20
112 0.01 0.018 0.026 0.034 0.041 0.048 0.06 0.069
92 0.01 0.017 0.025 0.032 0.038 0.045 0.056 0.065
100 0.01 0.018 0.026 0.034 0.041 0.048 0.06 0.069
72 0.009 0.015 0.022 0.028 0.034 0.04 0.05 0.058
64 0.01 0.018 0.025 0.032 0.039 0.045 0.057 0.066
56 0.009 0.016 0.023 0.029 0.036 0.041 0.052 0.06



Tungsten Carbide 6 Flute Spiral Flute Reamer CNC Thread Reamer For Aluminum 1 Roughing
Vc
(m/min)		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 16 20
228 0.018 0.031 0.045 0.057 0.070 0.081 0.101 0.118
208 0.017 0.029 0.042 0.054 0.065 0.071 0.095 0.11
184 0.018 0.031 0.045 0.057 0.070 0.081 0.101 0.118
144 0.015 0.026 0.037 0.048 0.058 0.068 0.085 0.098
132 0.017 0.03 0.042 0.054 0.066 0.077 0.096 0.112
112 0.015 0.027 0.039 0.05 0.060 0.07 0.088 0.102



Tungsten Carbide 6 Flute Spiral Flute Reamer CNC Thread Reamer For Aluminum 2 Finish
Vc
m/min		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 14 16 18 20
332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161

Note OF carbide Thread reamer
  • If the following carbide spiral reamer cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
specifications Flute diameter Flute length length Flutes
2*50 2 20 50 4/6
3*50 3 25 50 4/6
4*50 4 25 50 4/6
5*60 5 30 60 4/6
6*60 6 30 60 4/6
7*70 7 35 70 4/6
8*70 8 35 70 4/6
9*70 9 35 70 4/6
10*70 10 35 70 4/6
11*70 11 35 70 4/6
12*80 12 40 80 4/6
13*100 13 60 100 4/6
14*100 14 60 100 4/6
15*100 15 60 100 4/6
16*100 16 60 100 4/6
17*100 17 60 100 4/6
18*100 18 60 100 4/6
19*100 19 60 100 4/6
20*100 20 60 100 4/6
2*100 2 50 100 4/6
3*100 3 50 100 4/6
4*100 4 50 100 4/6
5*100 5 60 100 4/6
6*100 6 60 100 4/6
7*100 7 60 100 4/6
8*100 8 60 100 4/6
9*100 9 60 100 4/6
10*100 10 60 100 4/6
11*100 11 60 100 4/6
12*100 12 60 100 4/6
6*150 6 100 150 4/6
7*150 7 100 150 4/6
8*150 8 100 150 4/6
9*150 9 100 150 4/6
10*150 10 100 150 4/6
11*150 11 100 150 4/6
12*150 12 100 150 4/6
13*150 13 100 150 4/6
14*150 14 100 150 4/6
15*150 15 100 150 4/6
16*150 16 100 150 4/6
17*150 17 100 150 4/6
18*150 18 100 150 4/6
19*150 19 100 150 4/6
20*150 20 100 150 4/6



Instructions OF carbide Thread reamer

1. Before using the carbide thread reamer, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide spiral reamer.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.



Applications OF carbide spiral reamer

Brand  BWIN
Flutes  6 Flutes
Product Name  HRC55 spiral reamer for aluminum
Hardness  HRC55 °
Applicable materials  Aluminum alloy, copper, aluminum parts, etc
Applicable machine tools  CNC machining centers,engraving machines etc

Cnc Milling Cutter 6mm 3 4 Flute Tungsten Solid Carbide High Feed Endmill End Mill




FAQ

Q1. The tool breaks when cutting in or pulling out the workpiece

The feed rate and cutting depth can be reduced, and the cutting edge length can be shortened to the minimum of the necessary length.



Q2. Tool breaks during normal machining

Reduce the feed rate and cutting depth.

The tool shall be passivated.

Replace the clamp or spring collet.

The tool with high cutting edge number changes the tool with low cutting edge number to improve chip removal and prevent chip blockage.

Replace dry milling with wet milling (using cutting fluid), and use it with vortex tube gun to reduce tool temperature and avoid tool overheating.

If the wet milling fluid supply direction is changed from the front to the oblique rear or transverse top, the coolant flow should be sufficient.



Q3. The tool breaks when the feed direction changes

(1) Use arc interpolation (NC machine tool), or temporarily stop (temporarily) feeding.

(2) Reduce (decrease) the feed before and after the direction change.

(3) Replace the clamp or spring collet.



Q4. Problem: Part of the blade tip breaks

Chamfer the corners with manual grinding.

Change down milling to up milling.
