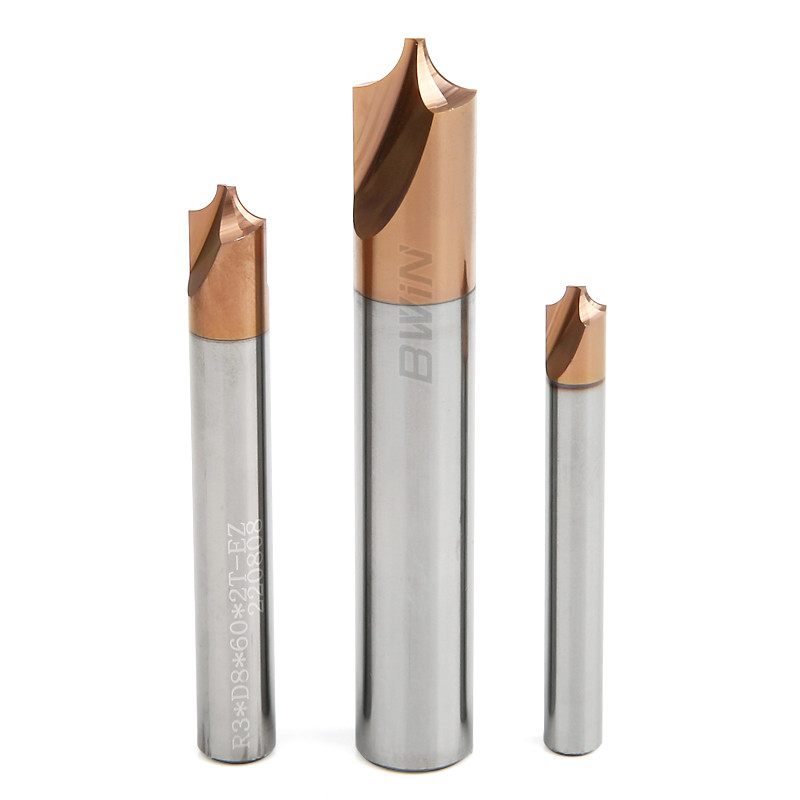

HRC 55 Degree 2 Flute Carbide Milling Cutter Inner R Angle CNC Tool 3/8 Milling Cutter
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | R1.5*D6*50L-2F HRC55 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | HRC55 2 Flute Carbide Inner-R Angle End Mill | Model: | R0.5-R6 Inner-R Milling Cutter |
|---|---|---|---|
| Material: | Solid Carbide HRC55 Inner R Endmills | Workpiece: | Steel |
| Usage: | Milling Machine | Coating: | AlTiSiN |
| HRC: | HRC55 | Feature: | Strong Stability |
| Application: | Milling | Package: | 1pcs/Box |
| High Light: | Inner R Carbide Milling Cutter,2 Flute Carbide Milling Cutter,HRC 55 Degree Carbide Milling Cutter |
||
Product Description
Description OF inner-R Carbide End Mill
The HRC55 2-blade inner R milling cutter is made of brand new ultrafine particles of 0.5u m/m Co10% tungsten steel, paired with high-quality oxidation resistance and wear resistance, excellent wear resistance and efficient lubrication to ensure an ultra long service life of the cutter; The blade is covered with AITiSiN coating, which can perform high-speed rough processing to fine processing of heat treated materials, reduce the number of tool changes, and improve processing efficiency; The spiral chip removal groove and full edge seismic design prevent easy chipping, enhance the rigidity of the tool, and make the cutting and chip removal of the tool more stable; The tool body is passivated to reduce the small serrations generated during tool grinding and optimize the smoothness.
Carbide material introdution
| Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
Details |
Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
| Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
|
Characteristic
|
Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Bronze | Bronze and gold | Blue | |
|
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
| Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
| Most suitable for carbide cutting tools, turning insert |
|||||
- Alloy tungsten steel
- Durable and wear-resistant
- Strong stability
- Quenching and hardening
- Bright round handle
- Complete specifications
If the following carbide internal R milling cutter cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
|
Radius
|
Cutting diameter
|
Tip diameter
|
Shank diameter
|
Overall
length
|
Flutes
|
|
R0.5
|
4
|
3
|
4
|
50
|
2/4
|
|
R0.75
|
4
|
2.5
|
4
|
50
|
2/4
|
|
R1.0
|
4
|
2
|
4
|
50
|
2/4
|
|
R1.25
|
6
|
3.5
|
6
|
50
|
2/4
|
|
R1.5
|
6
|
3
|
6
|
50
|
2/4
|
|
R1.75
|
6
|
2.5
|
6
|
50
|
2/4
|
|
R2.0
|
6
|
2
|
6
|
50
|
2/4
|
|
R2.5
|
8
|
3
|
8
|
60
|
2/4
|
|
R3.0
|
8
|
2
|
8
|
60
|
2/4
|
|
R3.5
|
10
|
3
|
10
|
75
|
2/4
|
|
R4.0
|
10
|
2
|
10
|
75
|
2/4
|
|
R5.0
|
12
|
2
|
12
|
75
|
2/4
|
|
R6.0
|
14
|
2
|
14
|
75
|
2/4
|
Instructions OF internal R Milling Cutter
1. Before using the carbide internal R milling cutter, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide inner R milling cutter.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications OF internal R End Mill
| Brand | BWIN |
| Flutes | 4 Flutes |
| Product Name | Internal R milling cutter for aluminum |
| Hardness | HRC55 ° |
| Applicable materials | Aluminum alloy, copper, aluminum parts, etc |
Q1. The tool breaks when cutting in or pulling out the workpiece
The feed rate and cutting depth can be reduced, and the cutting edge length can be shortened to the minimum of the necessary length.
Q2. Tool breaks during normal machining
Reduce the feed rate and cutting depth.
The tool shall be passivated.
Replace the clamp or spring collet.
The tool with high cutting edge number changes the tool with low cutting edge number to improve chip removal and prevent chip blockage.
Replace dry milling with wet milling (using cutting fluid), and use it with vortex tube gun to reduce tool temperature and avoid tool overheating.
If the wet milling fluid supply direction is changed from the front to the oblique rear or transverse top, the coolant flow should be sufficient.
Q3. The tool breaks when the feed direction changes
(1) Use arc interpolation (NC machine tool), or temporarily stop (temporarily) feeding.
(2) Reduce (decrease) the feed before and after the direction change.
(3) Replace the clamp or spring collet.
Q4. Problem: Part of the blade tip breaks
Chamfer the corners with manual grinding.
Change down milling to up milling.
