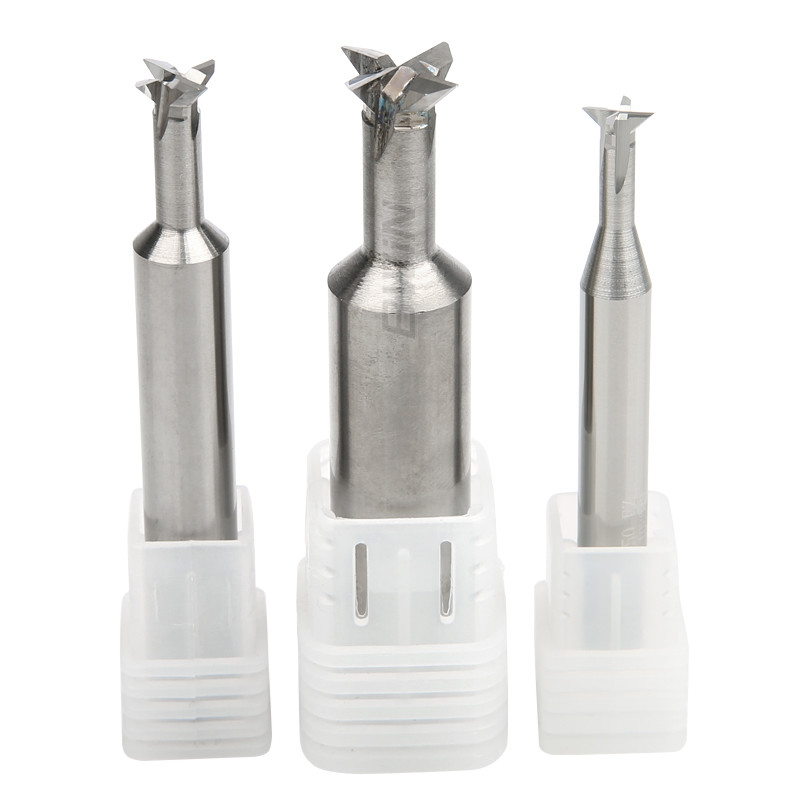

2/4 Flute Double Sided Carbide Dovetail End Mill Indexable Aluminum End Mill
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | D5*45°*d3*D6*50*4T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | HRC55 Dovetail Groove End Mill | Model: | D3-D20 CNC T Slot Endmill |
|---|---|---|---|
| Material: | Carbide Dove Tail Milling Cutter | Workpiece: | Aluminum |
| Usage: | CNC Tooling | Coating: | Uncoated |
| HRC: | HRC55 | Feature: | High Speed Cutting |
| Application: | CNC Milling Tool | Package: | 1pcs/Box |
| High Light: | Carbide Dovetail Aluminum End Mill,Double Sided carbide dovetail end mill,Indexable Aluminum End Mill |
||
Product Description
2/4 Flute Double-Sided Dovetail Groove End Mill Indexable Milling Cutter Bar Endmill Aluminium
Characteristic of Aluminum end mill
- High quality tungsten steel raw materials
- Fine grinding
- Knife edge polishing
- high speed cutting
- Specular highlights
- Wide applicability
Description of aluminum end mill
The HRC55 aluminum dovetail milling cutter uses foreign first-class precision machine tools to grind unique spiral blade angles, which are sharp and wear-resistant, smooth cutting, and improve milling efficiency; The large groove design of the edge improves the metal removal rate and processing effect, reduces tool wear quickly and extends the service life of the tool; The seismic design of the four edge through the center edge reduces cutting resistance and improves resistance to collapse and damage; Standard straight handle, surface roughness, anti slip and knife drop design, making installation easier.
Carbide material introdution
| Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
Details |
Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% |
| Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
|
Characteristic
|
Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Bronze | Bronze and gold | Blue | |
|
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
| Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
| Most suitable for carbide cutting tools, turning insert |
|||||
- If the following carbide T slot chamfer end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size carbide T slot chamfer end mill. Please contact us to select or customize non-standard carbide T slot chamfer end mill according to your needs.
| Model | d1 | A | d2 | D | L | Flutes |
|
D3*45°*d1.5*D4*50*4T
|
3
|
45°
|
1.5
|
4
|
50
|
4
|
|
D4*45°*d2*D4*50*4T
|
4
|
45°
|
2
|
4
|
50
|
4
|
|
D6*45°*d3*D6*50*4T
|
6
|
45°
|
3 |
6
|
50
|
4
|
|
D8*45°*d2*D8*50*4T
|
8
|
45°
|
2
|
8
|
50
|
4
|
|
D10*45°*d2*D10*60*4T
|
10
|
45°
|
2
|
10
|
60
|
4
|
|
D12*45°*d2*D12*60*4T
|
12
|
45°
|
2
|
12
|
60
|
4
|
|
D14*45°*d7*D14*75*4T
|
14
|
45°
|
7
|
14
|
75
|
4
|
|
D16*45°*d8*D16*75*4T
|
16
|
45°
|
8
|
16
|
75
|
4
|
Instructions of Aluminum end mill
1. Before using the carbide T slot chamfer end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications
- Name: 55 degree tungsten carbide dovetail aluminum milling cutter
- Material: Tungsten steel hard alloy
- Suitable for machine tools: CNC machining centers, engraving machines, precision engraving machines, CNC machines, high-speed machines, and other machine tools
- Suitable for processing materials: cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, titanium alloy, etc
Q: What are the quantity requirements?
A: The minimum order quantity is related to different products.
Please check the product details.
Q: How much is the sample fee?
Free samples are supported, but the courier fee needs to be paid by the buyer.
Q: What is the delivery time?
A: Usually 2-3 days after payment.
Large order, 15-25 days.
Q: Can you produce special hard alloy tools?
A: Yes, we can produce special hard alloy tools based on your drawings or samples.
