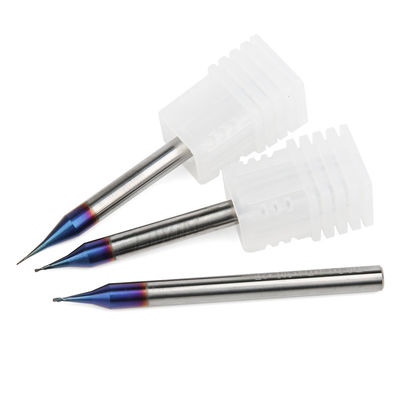

Solid Carbide 2 Flutes 0.5 Mm Micro Diameter Square End Mill HRC65 2flute Endmill

Solid Carbide 2 Flutes 0.5 Mm Micro Diameter Square End Mill HRC65 2flute Endmill

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: D0.4*50*2F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information
Product Name: HRC65 Micro Diameter Square End Mill Model: D0.15-D0.9 HRC65 2flute Micro Square Endmill
Material: Tungsten CNC Micro End Mill Workpiece: Steel
Usage: Milling Machine Coating: Nano Blue
HRC: HRC65 Feature: High Efficiency
Application: Milling Package: 1pcs/Box
High Light:

Micro Diameter Square End Mill

,

0.5MM Square End Mill

,

HRC65 2 flute End mill

Product Description

Description OF Micro Diameter Square End Mill

   Adopting a suitable negative rake angle design that takes into account the strength and sharpness of the cutting edge, while also adopting a large core diameter to enhance the rigidity of the cutting tool and make its cutting and chip removal more stable; Large capacity chip removal has strong cutting characteristics and timely discharge during cutting, which can achieve stable and fast processing, and the workpiece accuracy is more glossy; Adopting a circular arc blade with edge cleaning design, the milling cutter has less wear during milling, and the blade is durable and sharp, matched with a 35 ° spiral groove for smooth chip removal; The universal chamfered round handle is easy to use, has good compatibility, enhances the vibration resistance and cutting speed of the milling cutter, and holds tightly without slipping.



Milling parameters OF Micro Diameter Square End Mill

HRC55 Carbide Micro Diameter Square End Mill
 		 Tool length fz&v
Short

1
Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material

Strength

N/mm²



Hardness

HRC

 Cooling
Air

Dry cutting

 Lubricating fluid
P PI

P1.1

 Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700 √ √ √
P1.2 quenched and tempered steel                                        <1200 √ √ √
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900 √ √ √
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400 √   √
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900 √ √ √
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500 √   √



Solid Carbide 2 Flutes 0.5 Mm Micro Diameter Square End Mill HRC65 2flute Endmill 0 Sloting
Vc
(m/min)		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 16 20
112 0.01 0.018 0.026 0.034 0.041 0.048 0.06 0.069
92 0.01 0.017 0.025 0.032 0.038 0.045 0.056 0.065
100 0.01 0.018 0.026 0.034 0.041 0.048 0.06 0.069
72 0.009 0.015 0.022 0.028 0.034 0.04 0.05 0.058
64 0.01 0.018 0.025 0.032 0.039 0.045 0.057 0.066
56 0.009 0.016 0.023 0.029 0.036 0.041 0.052 0.06



Solid Carbide 2 Flutes 0.5 Mm Micro Diameter Square End Mill HRC65 2flute Endmill 1 Roughing
Vc
(m/min)		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 16 20
228 0.018 0.031 0.045 0.057 0.070 0.081 0.101 0.118
208 0.017 0.029 0.042 0.054 0.065 0.071 0.095 0.11
184 0.018 0.031 0.045 0.057 0.070 0.081 0.101 0.118
144 0.015 0.026 0.037 0.048 0.058 0.068 0.085 0.098
132 0.017 0.03 0.042 0.054 0.066 0.077 0.096 0.112
112 0.015 0.027 0.039 0.05 0.060 0.07 0.088 0.102



Solid Carbide 2 Flutes 0.5 Mm Micro Diameter Square End Mill HRC65 2flute Endmill 2 Finish
Vc
m/min		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 14 16 18 20
332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161

Note OF Micro Diameter Square Endmill
  • If the following carbide micro diameter flat milling cutter cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.

​

flute diameter  flute length Shank Dia overall length
0.1 0.2 4 50
0.15 0.3 4 50
0.2 0.4 4 50
0.25 0.5 4 50
0.3 0.6 4 50
0.35 0.7 4 50
0.4 0.8 4 50
0.5 1 4 50
0.6 1.2 4 50
0.7 1.4 4 50
0.8 1.6 4 50
0.9 1.9 4 50
R0.1 0.4 4 50
R0.15 0.6 4 50
R0.2 0.8 4 50
R0.25 1 4 50
R0.3 1.2 4 50
R0.35 1.4 4 50
R0.4 1.6 4 50
R0.45 1.8 4 50



Feature OF Micro Diameter Square Endmill

  • Knife body made of tungsten steel material
  • Tool heat resistance increased by 80%
  • Sharp and wear-resistant, smooth cutting
  • High gloss mirror finish, not easy to stick to knives



Instructions OF Micro Diameter Square Endmill

1. Before using the carbide micro diameter flat milling cutter, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide micro diameter square milling cutter.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.



Applications OF Micro Diameter Square Endmill

   The cutting edge of the HRC55 micro diameter square cutter is covered with a bronze colored nano coating, suitable for materials within HRC55, including iron, carbon steel, cast iron, mold steel, alloy steel, tool steel, heat treated steel, and welding repair steel

Cnc Milling Cutter 6mm 3 4 Flute Tungsten Solid Carbide High Feed Endmill End Mill




FAQ

Q1. The tool breaks when cutting in or pulling out the workpiece

The feed rate and cutting depth can be reduced, and the cutting edge length can be shortened to the minimum of the necessary length.



Q2. Tool breaks during normal machining

Reduce the feed rate and cutting depth.

The tool shall be passivated.

Replace the clamp or spring collet.

The tool with high cutting edge number changes the tool with low cutting edge number to improve chip removal and prevent chip blockage.

Replace dry milling with wet milling (using cutting fluid), and use it with vortex tube gun to reduce tool temperature and avoid tool overheating.

If the wet milling fluid supply direction is changed from the front to the oblique rear or transverse top, the coolant flow should be sufficient.



Q3. The tool breaks when the feed direction changes

(1) Use arc interpolation (NC machine tool), or temporarily stop (temporarily) feeding.

(2) Reduce (decrease) the feed before and after the direction change.

(3) Replace the clamp or spring collet.



Q4. Problem: Part of the blade tip breaks

Chamfer the corners with manual grinding.

Change down milling to up milling.
