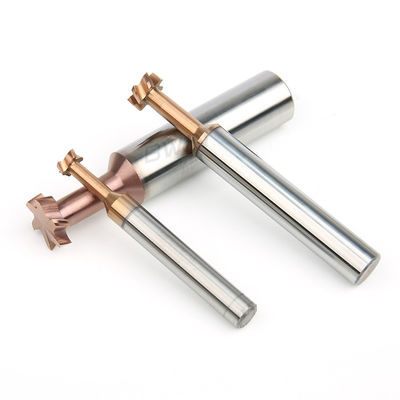

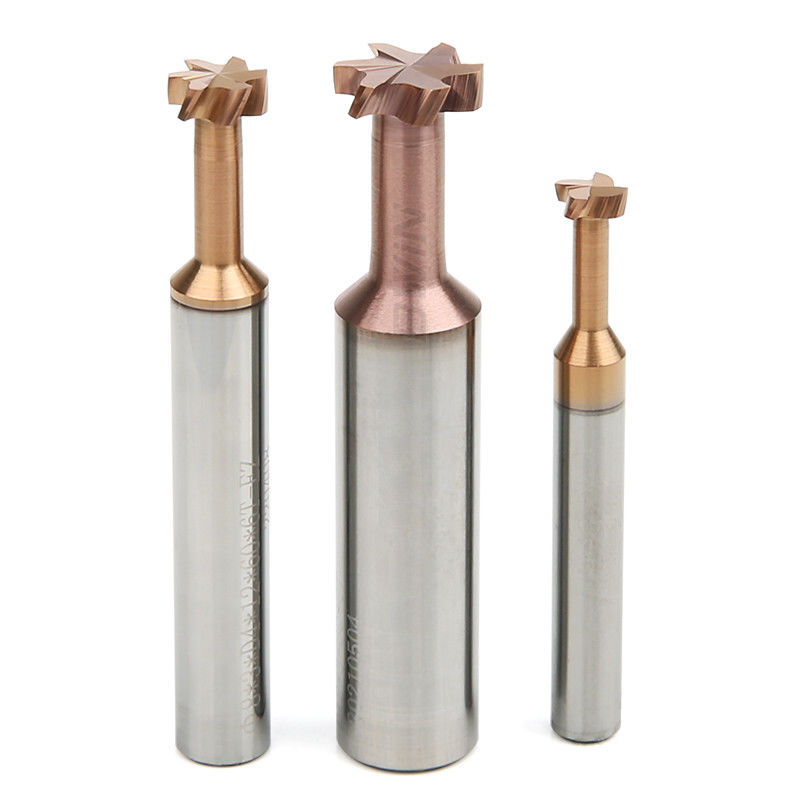

Product Name: CNC Carbide T Slot End Milling Cutter Model: HRC55 CNC T-Slot Milling Cutter
Material: CNC Carbide T Type End Mill Workpiece: Die Steel
Usage: Milling Coating: AlTiSiN
HRC: HRC55 Feature: Sharp And Long-lasting
Application: CNC Milling Tool Package: 1pcs/Box
High Light:

T Slot End Milling Cutter

,

CNC Carbide End Milling Cutter

Product Description

Quick detail:

  • Preferred Bar
  • Quenching and hardening
  • high stability
  • Sharp and wear-resistant
  • Durable and sturdy
  • Good processing effect



Description:

   Adopting brand new high-quality fine tungsten steel bars, the HRC55 T-shaped milling cutter has high wear resistance and strength, greatly improving the tool's service life; Apply a hard coating on the blade to directly perform high-speed rough machining to fine machining on heat treated materials below 55 ° C, reducing the number of tool changes; The large front corner facilitates ash removal, improves drilling efficiency, is compatible with blade strength and sharpness, and increases tool toughness.



Milling Parameters:

HRC55 Carbide T Slot  Chamfer End Mill Tool length fz&v
Short 1
Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material Strength
N/mm²

Hardness
HRC		 Cooling
Air Dry cutting Lubricating fluid
P PI P1.1 Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700 √ √ √
P1.2 quenched and tempered steel <1200 √ √ √
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900 √ √ √
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400 √   √
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900 √ √ √
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500 √   √
M M1 M1.1 austenitic stainless steel ＜700 √   √
M1.2 Ferritic/austenitic (bicrystal) stainless steel ＜1000     √
M2 M2.1 Austenitic stainless cast steel ＜700 √   √
M3 M3.1 Ferritic/austenitic (bicrystal) stainless cast steel ＜1000     √
K K1 K1.1 Flake graphite cast iron (gray cast iron), GJL ＜300 √ √ √
K2 K2.1 Ductile iron, GJS ＜500 √ √ √
K2.2 Ductile iron, GJS 500-800 √ √ √
K2.3 Ductile iron, GJS ＞800 √ √ √
K3 K3.1 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＜500 √ √ √
K3.2 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＞500 √ √ √



Slotting
Vc
(m/min)		                                                    fz(mm/tooth)
                                                       Diameter
2 4 6 8 10 12 14 16 18 20
112 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.065 0.069
92 0.01 0.017 0.025 0.032 0.038 0.045 0.0505 0.056 0.061 0.065
100 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.065 0.069
72 0.009 0.015 0.022 0.028 0.034 0.04 0.045 0.05 0.054 0.058
64 0.01 0.018 0.025 0.032 0.039 0.045 0.051 0.057 0.062 0.066
56 0.009 0.016 0.023 0.029 0.036 0.041 0.0465 0.052 0.056 0.06
44 0.007 0.012 0.018 0.023 0.027 0.032 0.036 0.04 0.043 0.046
68 0.01 0.018 0.025 0.033 0.04 0.046 0.052 0.058 0.063 0.067
44 0.005 0.009 0.012 0.016 0.019 0.022 0.025 0.028 0.030 0.032
32 0.006 0.011 0.015 0.02 0.024 0.028 0.0315 0.035 0.0375 0.04
28 0.005 0.009 0.013 0.016 0.02 0.023 0.031 0.039 0.036 0.033
32 0.007 0.012 0.017 0.021 0.026 0.03 0.034 0.038 0.041 0.044
32 0.005 0.009 0.013 0.017 0.021 0.024 0.027 0.03 0.0325 0.035
120 0.017 0.031 0.044 0.056 0.068 0.08 0.09 0.1 0.05575 0.0115
112 0.015 0.026 0.037 0.048 0.058 0.068 0.0765 0.085 0.0915 0.098
92 0.012 0.022 0.031 0.039 0.048 0.056 0.063 0.07 0.0755 0.081
52 0.007 0.012 0.018 0.023 0.027 0.032 0.036 0.04 0.043 0.046
80 0.012 0.022 0.031 0.039 0.048 0.056 0.063 0.07 0.0755 0.081
76 0.01 0.018 0.026 0.034 0.041 0.048 0.054 0.06 0.0645

0.069



Roughing
Vc
(m/min)		                                                   fz(mm/tooth)
                                                     Diameter
2 4 6 8 10 12 14 16 18 20
228 0.018 0.031 0.045 0.057 0.070 0.081 0.091 0.101 0.110 0.118
208 0.017 0.029 0.042 0.054 0.065 0.071 0.083 0.095 0.103 0.11
184 0.018 0.031 0.045 0.057 0.070 0.081 0.091 0.101 0.110 0.118
144 0.015 0.026 0.037 0.048 0.058 0.068 0.077 0.085 0.092 0.098
132 0.017 0.03 0.042 0.054 0.066 0.077 0.087 0.096 0.104 0.112
112 0.015 0.027 0.039 0.05 0.060 0.07 0.079 0.088 0.095 0.102
92 0.012 0.021 0.03 0.038 0.046 0.054 0.061 0.068 0.073 0.078
140 0.017 0.03 0.043 0.055 0.067 0.078 0.088 0.098 0.106 0.114
92 0.008 0.015 0.021 0.027 0.032 0.038 0.043 0.047 0.051 0.055
60 0.011 0.018 0.026 0.033 0.041 0.047 0.053 0.059 0.064 0.069
56 0.009 0.015 0.022 0.028 0.034 0.039 0.044 0.049 0.053 0.057
68 0.011 0.02 0.028 0.036 0.044 0.051 0.0575 0.064 0.069 0.074
60 0.009 0.016 0.022 0.029 0.035 0.041 0.046 0.051 0.055 0.059
248 0.03 0.052 0.074 0.096 0.0116 0.135 0.152 0.169 0.1825 0.196
228 0.025 0.044 0.063 0.081 0.099 0.115 0.1295 0.144 0.155 0.166
184 0.021 0.037 0.052 0.067 0.081 0.095 0.1065 0.118 0.1275 0.137
104 0.012 0.021 0.03 0.038 0.046 0.054 0.061 0.068 0.073 0.078
164 0.021 0.037 0.052 0.067 0.081 0.095 0.1065 0.118 0.1275 0.137
156 0.018 0.031 0.045 0.057 0.07 0.081 0.091 0.101 0.1095 0.118



Finish
Vc
(m/min)		                                              fz(mm/tooth)
                                                          Diameter
2 4 6 8 10 12 14 16 18 20
332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161
136 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.116 0.124
204 0.027 0.048 0.068 0.088 0.106 0.124 0.140 0.155 0.168 0.18
136 0.013 0.023 0.033 0.042 0.051 0.06 0.068 0.075 0.081 0.087
92 0.016 0.029 0.041 0.053 0.064 0.075 0.0845 0.094 0.101 0.108
84 0.014 0.024 0.034 0.044 0.053 0.062 0.0695 0.077 0.0835 0.09
100 0.018 0.031 0.045 0.057 0.07 0.081 0.0915 0.102 0.11 0.118
92 0.014 0.025 0.035 0.045 0.055 0.064 0.072 0.08 0.0865 0.093
364 0.047 0.083 0.117 0.151 0.183 0.214 0.2405 0.267 0.149 0.031
332 0.04 0.07 0.1 0.128 0.156 0.182 0.2045 0.227 0.245 0.263
272 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
152 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.1155 0.124
240 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
228 0.028 0.05 0.07 0.091 0.011 0.128 0.144 0.16 0.173 0.186

Note:
  • If the following carbide T slot chamfer end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size carbide T slot chamfer end mill. Please contact us to select or customize non-standard carbide T slot chamfer end mill according to your needs.
MODEL d1 A d2 D L Flutes
D3*45°*d1.5*D4*50*4T
3
45°
1.5
4
50
4
D4*45°*d2*D4*50*4T
4
45°
2
4
50
4
D6*45°*d3*D6*50*4T
6
45°
3
6
50
4
D8*45°*d2*D8*50*4T
8
45°
2
8
50
4
D10*45°*d2*D10*60*4T
10
45°
2
10
60
4
D12*45°*d2*D12*60*4T
12
45°
2
12
60
4
D14*45°*d7*D14*75*4T
14
45°
7
14
75
4
D16*45°*d8*D16*75*4T
16
45°
8
16
75
4



Instructions:

1. Before using the carbide T slot chamfer end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.



Applications:

  • Name: 55 degree tungsten carbide T-slot milling cutter
  • Material: Tungsten steel hard alloy
  • Suitable for machine tools: CNC machining centers, engraving machines, precision engraving machines, CNC machines, high-speed machines, and other machine tools
  • Suitable for processing materials: cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, titanium alloy, etc

Cnc Milling Cutter 6mm 3 4 Flute Tungsten Solid Carbide High Feed Endmill End Mill



FAQ

Q1: The surface of the workpiece is glossy, but the concavity and convexity are large

resolvent:

(1) Reduce the feed.

(2) The low number of cutting edges changes the high number of cutting edges to improve the surface fineness.



Q2: The chip is short and thin, but there are sticky chips

resolvent:

(1) Increase cutting speed.

(2) Change to wet type (using cutting fluid), and use it with vortex tube gun to reduce the tool temperature and avoid overheating.

(3) Perform minor rounding and passivation treatment.

(4) Change from up milling to down milling.

(5) Increase the feed rate or the cutting allowance.



Q3: There are transverse cuts

resolvent:

(1) Perform minor rounding and passivation treatment.

(2) Use water-insoluble cutting fluid.

(3) Change from forward milling to reverse milling.



Q4:The finishing size is too small

resolvent:

(1) Change from up milling to down milling.

(2) Reduce the cutting allowance.

(3) Replace the chuck or spring collet.

(4) Reduce the cutting depth of the end mill.

(5) Increase cutting speed.



Tag:

Tungsten Carbide Endmill

Ball Nose End Mill

Corner Radius Endmills

Want to Know more details about this product
I am interested in High Quality CNC Carbide T Slot End Milling Cutter Endmill For High Harden Metal could you send me more details such as type, size, quantity, material, etc.
Thanks!
