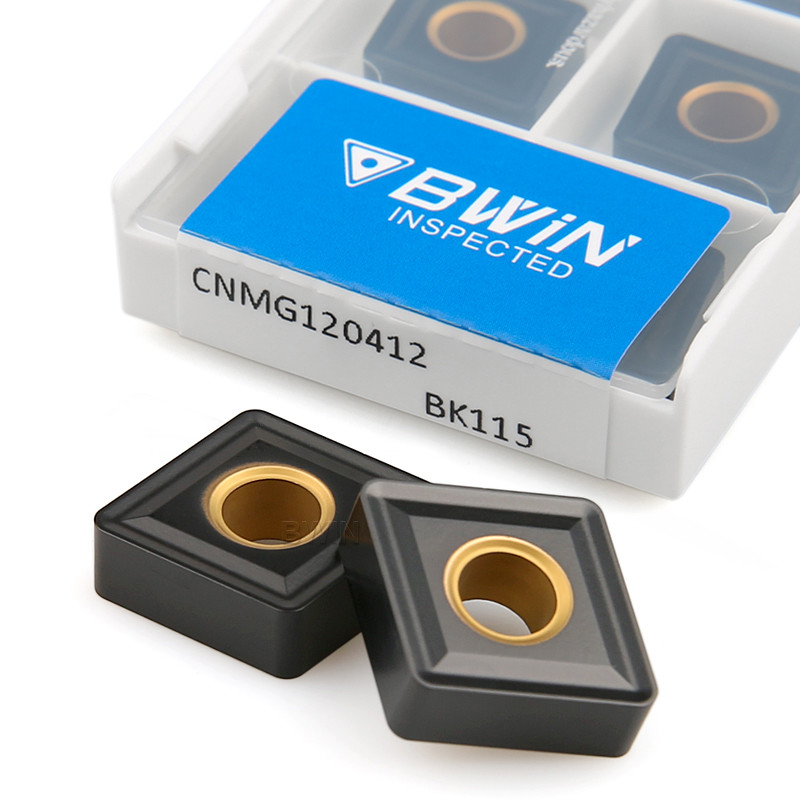

Cnmg 120404 Carbide Lathe Insert Cast Iron Cnmg 1204 08 Inserts

Cnmg 120404 Carbide Lathe Insert Cast Iron Cnmg 1204 08 Inserts

Product Details:

Place of Origin: China
Brand Name: BWIN
Model Number: Cnmg120408

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs/box
Price: Negotiable
Packaging Details: Plastic box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000pcs 7days
Get Best Price Contact Now

Detail Information

Product Name: Cnmg Carbide Lathe Turning Insert Material: Carbide Turning Insert
Workpiece: Aluminum/Cast Iron/Steel/Stainless Steel Usage: Turning Tool
Color: Yellow/Brown/Fuchsia/Black/cermet/Uncoated Coating: PVD CVD
Hardness: HRC40-60 Feature: Smooth Cutting
Application: Lathe Package: 10pcs/Box
High Light:

Cnmg 120404 Carbide Lathe Insert

,

Cast Iron Cnmg 1204 08 Inserts

,

Carbide Lathe Insert Cast Iron

Product Description

Cnmg 120404 120408 120412 Carbide Lathe Insert Turning Tool Cnc Stainless Steel

Quick Detail:

  • Cemented carbide matrix
  • Nano scale coating
  • Sharp edge
  • Smooth cutting
  • Strong universality



Description:

  • The carbide lathe insert is sintered from tungsten carbide and cobalt powder. The fine grain matrix is combined with the nano coating, and the coating is more thick, so that the blade has high hardness, good toughness, high temperature resistance, and more stable and wear-resistant processing; Professional technology, sharp and wear-resistant, sharp edge, non stick knife, overall high working efficiency; The chip breaking groove has a wide edge band, which can reduce the cutting pressure and prolong the service life.



Specifications:​

Brand BWIN
Model CNMG120404 CNMG120408 CNMG120412
Color Yellow/Brown/Fuchsia/Black/cermet/Uncoated
Workpiece Cast iron/Steel/Stainless steel/Aluminium
Type CNC Cutting Tool
Material Tungsten Carbide Lathe Insert
Processing Type Medium Cutting
Feature High hardness
Good wear resistance
High strength
Good heat resistance

Corrosion resistance

Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized Support OEM, ODM



Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days)  7 To be negotiated



Cnc Tungsten Carbide Insert Cnmg 120404 120408 120412 Lathe Turning Cutting Tool

I(mm)
d(mm)
t(mm)
d1(mm)
09
9.525
3.18
3.81
12
12.7
4.76
5.16
16
15.875
6.35
6.35
19
19.05
6.35
7.93



Notice:

  • The carbide lathe insert shall not be collided or dropped on the ground and must be handled with care.
  • Before installing the tungsten carbide lathe insert, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the tungsten carbide lathe insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the tungsten carbide lathe insert is not used, hang the blade vertically on the dry shelf.

Applications:

Our tungsten carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Cnc Tungsten Carbide Insert Cnmg 120404 120408 120412 Lathe Turning Cutting Tool



FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.

2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.

3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle

4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.

5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).

6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
