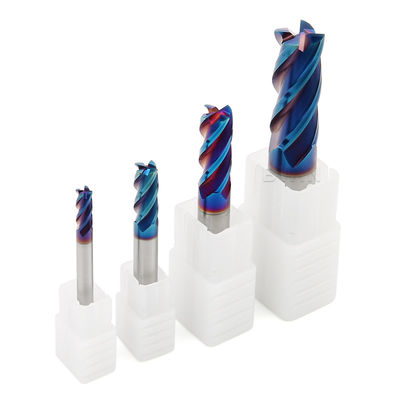

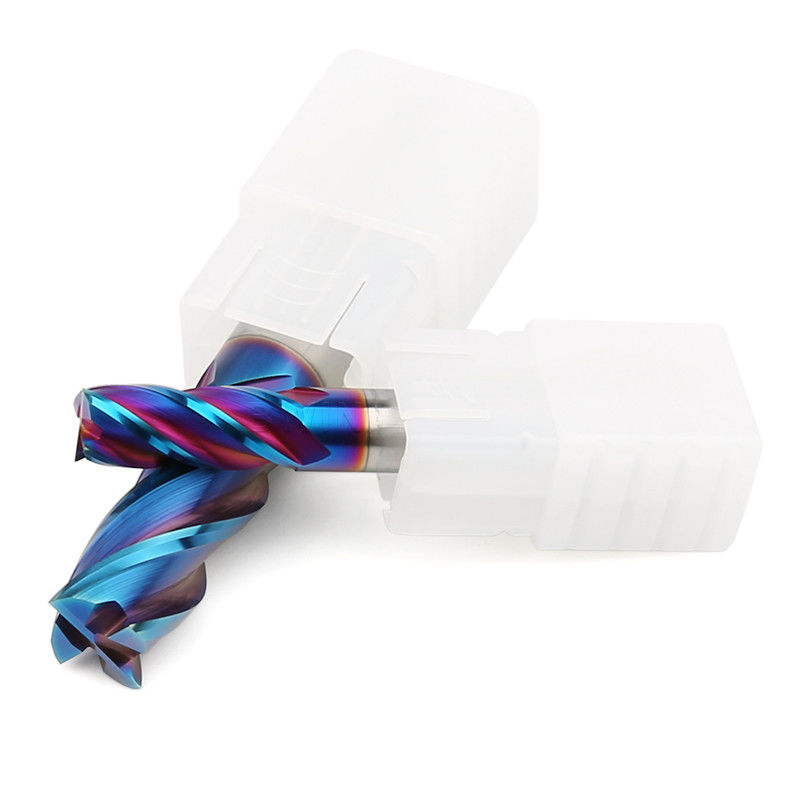

HRC65 4 Flute Solid Carbide Square End Mill Nano Blue Flat Milling Cutter
Product Details:
Place of Origin: | China |
Brand Name: | BWIN |
Model Number: | D2.0*5*d6*50L-4F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs/box |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic box |
Delivery Time: | 7 work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1-10000pcs 7days |
Detail Information |
|||
Product Name: | HRC65 4 Flute Square End Mill | Model: | 12mm Nano Blue Flat Milling Cutter |
---|---|---|---|
Material: | Solid Carbide Square Endmill | Workpiece: | Stainless Steel, Cast Iron |
Usage: | CNC Milling Tool | Coating: | Nano Blue |
HRC: | HRC65 | Feature: | Anti Collapse And Wear Resistance |
Application: | CNC Milling Tool | Package: | 1pcs/Box |
Highlight: | Solid Carbide Square End Mill,HRC65 Square End Mill,Nano Blue Flat Milling Cutter |
Product Description
Quick Detail
- High strength
- High durability
- High production efficiency
- Good chip removal performance
- Thermal shock resistance
Description:
- The super fine cemented carbide makes the tool wear resistance and cutting edge strength perfectly combined, and is suitable for milling super hard materials within HRC65 degrees; The coating BALINIT X, which is specially designed for cutting hard materials, is used to greatly improve the tool wear resistance; Under the condition of ensuring enough chip holding hole diameter, large core diameter is adopted, giving consideration to the rigidity of the tool and good chip removal, and strict and scientific groove type control makes the cutting and chip removal of the tool more stable.
Carbide material introdution
Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
Details |
Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
Coating Classifying and Advantage | |||||
Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
Characteristic
|
Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
Color | Black | Bronze | Bronze and gold | Blue | |
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
Most suitable for carbide cutting tools, turning insert |
- If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Specification | Flute Dia(D) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
φ1*3*d4*50L | 1 | 3 | 4 | 50 |
φ1.5*4*d4*50L | 1.5 | 5 | 4 | 50 |
φ2*5*d4*50L | 2 | 5 | 4 | 50 |
φ2.5*7*d4*50L | 2.5 | 7 | 4 | 50 |
φ3*8*d4*50L | 3 | 8 | 4 | 50 |
φ4*10*d4*50L | 4 | 10 | 4 | 50 |
φ5*13*d6*50L | 5 | 13 | 6 | 50 |
φ6*15*d6*50L | 6 | 15 | 6 | 50 |
φ8*20*d8*60L | 8 | 20 | 8 | 60 |
φ10*25*d10*75L | 10 | 25 | 10 | 75 |
φ12*30*d12*75L | 12 | 30 | 12 | 75 |
φ14*45*d14*100L | 14 | 45 | 14 | 100 |
φ16*45*d16*100L | 16 | 45 | 16 | 100 |
φ18*45*d18*100L | 18 | 45 | 18 | 100 |
φ20*45*d20*100L | 20 | 45 | 20 | 100 |
Instructions:
1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.
Applications:
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and so on. General-purpose operation slotting, rilling, profiling.
