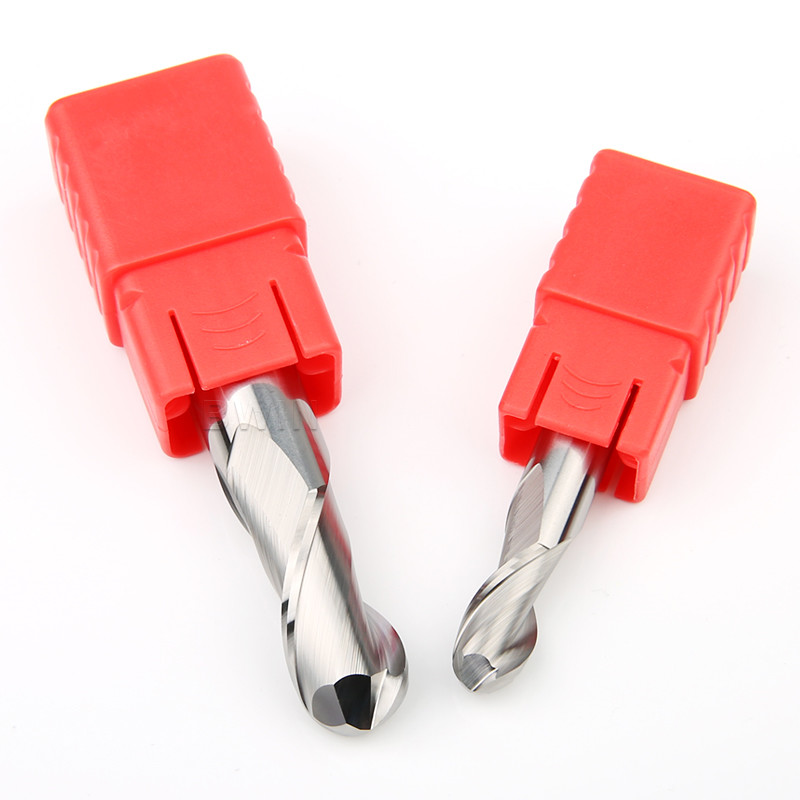

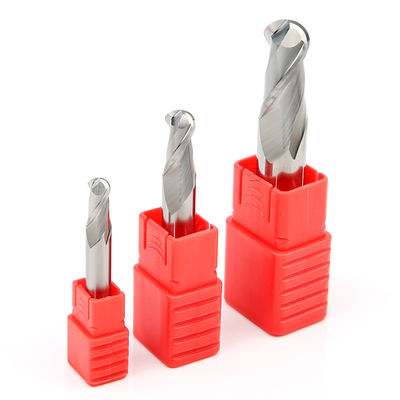

HRC55 Ballnose Endmill 2 Flute Aluminum Ball Nose End Mill For Aluminum Cutting
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | R2*8*d4*50L-2F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | HRC55 Aluminum 2F Ballnose End Mills | Model: | R0.5~R10 Ball Nose Endmills |
|---|---|---|---|
| Material: | Carbide Ball Head Milling Cutters | Workpiece: | Aluminum,copper |
| Coating: | Uncoated | HRC: | HRC55 |
| Feature: | Good Process Performance | Application: | CNC Milling Tools |
| Package: | 1pcs/Plastic Box | Delivery Time: | 6-14 Days |
| High Light: | HRC55 Ballnose Endmill,Aluminum Ball Nose End Mill,Ballnose Endmill For Aluminum Cutting |
||
Product Description
Description
The HRC55 2F aluminum ball nose milling cutter is made of brand new ultra-fine particle bar material, which has high rigidity and wear resistance, providing a strong guarantee for the tool's service life; Adopting high-density coating technology, excellent wear resistance and effective thermal insulation to ensure the ultra-long service life of the cutting tools; The large core diameter design is fast and stable, with extremely sharp edges, greatly enhancing the rigidity and seismic resistance of the cutting tool; Multiple chip removal groove design, precision grinding spiral groove, passivation treatment effectively avoid the risk of sticking and cutting, and improve production efficiency; The universal rounded blade handle design is convenient to use.
Carbide material introdution
| Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
Details |
Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
| Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
|
Characteristic
|
Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Bronze | Bronze and gold | Blue | |
|
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
| Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
| Most suitable for carbide cutting tools, turning insert | |||||
Feature
- Alloy material
- Good resilience
- High smoothness
- Smooth cutting
- Stable processing
Applications of carbide end mill
Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, aluminum alloy, copper alloy, plastic, wood, magnesium alloy, zinc alloy, aluminum parts, etc
Product specifications of carbide end mill
| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| R0.5*2*d4*50L | 0.5 | 2 | 4 | 50 |
| R0.75*3*d4*50L | 0.75 | 3 | 4 | 50 |
| R1*4*d4*50L | 1 | 4 | 4 | 50 |
| R1.25*5*d4*50L | 1.25 | 5 | 4 | 50 |
| R1.5*6*d4*50L | 1.5 | 6 | 4 | 50 |
| R1.75*7*d4*50L | 1.75 | 7 | 4 | 50 |
| R2*8*d4*50L | 2 | 8 | 4 | 50 |
| R2.5*10*d5*50L | 2.5 | 10 | 5 | 50 |
| R3*12*d6*50L | 3 | 12 | 6 | 50 |
| R4*16*d8*60L | 4 | 16 | 8 | 60 |
| R5*20*d10*75L | 5 | 20 | 10 | 75 |
| R6*24*d12*100L | 6 | 24 | 12 | 100 |
| R7*28*d14*150L | 7 | 28 | 14 | 150 |
| R8*32*d16*100L | 8 | 32 | 16 | 100 |
| R9*36*d18*100L | 9 | 36 | 18 | 100 |
| R10*40*d20*100L | 10 | 40 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
Instructions of carbide end mill
- Selection of milling cutters
1. Please choose a suitable milling cutter according to the material and shape of the workpiece.
2. Please refer to our product catalog.
- Cutting conditions
1. Please refer to the cutting conditions reference table.
2. Please adjust the cutting conditions appropriately based on the rigidity of the machine and the fastening status of the workpiece.
- Extension length of milling cutter
1. Try to shorten it as much as possible without affecting the processing.
If the milling cutter extends too long, please adjust the cutting depth and feed rate appropriately.
Advantage
1. Honest merchants, reasonable prices, and guaranteed quality
2. Large inventory, sufficient supply, and high cost-effectiveness
3. Customer service responds promptly and delivers quickly
4. Provide after-sales guarantee, so that you have no worries after sales
