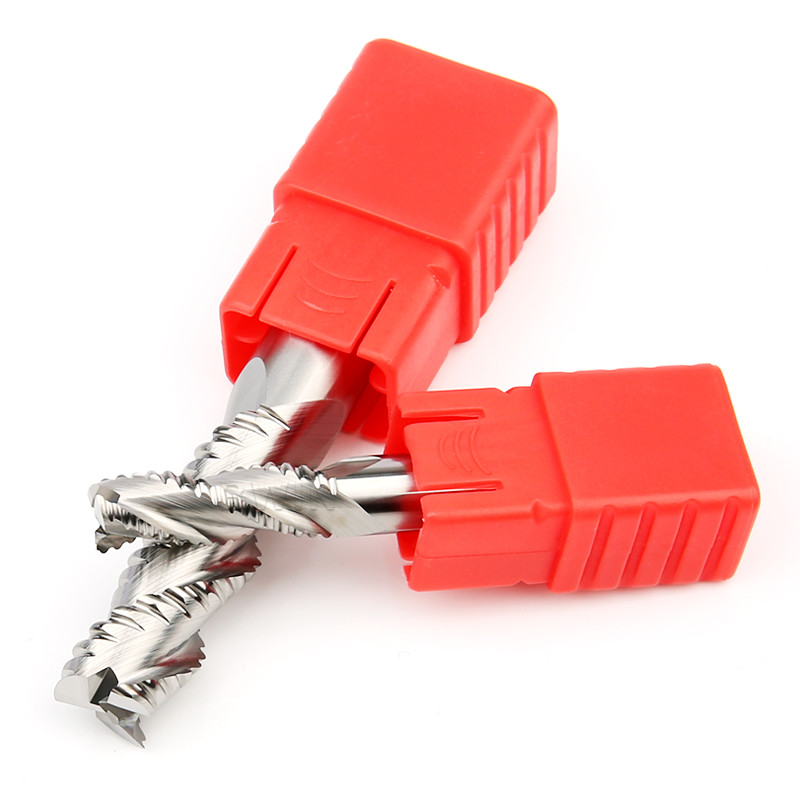

HRC 55 Degree 3 Flute Roughing Finishing End Mill Cutter For Aluminum
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | Φ8*20*d8*60L-3F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pc/Box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original box |
| Delivery Time: | 6-14days |
| Supply Ability: | OEM & ODM |
|
Detail Information |
|||
| Product Name: | 3 Flute Roughing Finishing End Mill | Model: | HRC55 3F Roughing End Mill Cutter |
|---|---|---|---|
| Material: | Carbide Rough Endmill | Number Of Flutes: | 3F |
| Shank Diameter: | D4mm~D20mm | Flute Length: | 50mm~100mm |
| HRC: | HRC55 | Coating: | AITiSiN |
| Workpiece: | Aluminum/Copper | Feature: | Fine Cutting |
| Usage: | Milling | Package: | 1pcs/Box |
| High Light: | Roughing Finishing End Mill Cutter,End Mill Cutter For Aluminum,3 Flute End Mill Cutter |
||
Product Description
Product Description:
The HRC55 3F aluminum rough milling cutter uses ultrafine particle tungsten steel base material, and the hard alloy milling cutter has high hardness and stiffness; The blade adopts nano coating, which has good wear resistance, stable performance, heat resistance, and oxidation resistance; 3 blade design, effectively preventing tool vibration during use, achieving more stable cutting; Single back corner design ensures a sharper blade, smoother chip removal, faster cutting speed, and a wider range of tool applications.
Features:
- Good red hardness
- Durable and wear-resistant
- high speed cutting
- Smooth chip removal
- High smoothness
- Widely used
Technical Parameters:
|
Product Name |
HRC55 3F Aluminum Roughing End Mill |
|---|---|
|
Number of Flutes |
3 Flutes |
|
Shank Diameter |
D4~D20 |
|
Material |
Tungsten Steel Roughing Milling Cutter |
|
Cutting Depth |
3mm |
|
Brand |
BWIN |
|
Helix Angle |
35° |
|
Coating |
AITiSiN |
|
Flute Length |
50mm~100mm |
Product Model
- If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
| Specification |
Flute Dia(D) |
Flute Length (C) |
Shank Dia(D) |
Overall Length(L) |
| Φ4*10*d4*50L | 4 | 10 | 4 | 50 |
| Φ5*13*d5*50L | 5 | 13 | 5 | 50 |
| Φ6*15*d6*50L | 6 | 15 | 6 | 50 |
| Φ8*20*d8*60L | 8 | 20 | 8 | 60 |
| Φ10*25*d10*75L | 10 | 25 | 10 | 75 |
| Φ12*30*d12*75L | 12 | 30 | 12 | 75 |
| Φ8*35*d8*100L | 8 | 35 | 8 | 100 |
| Φ10*40*d10*100L | 10 | 40 | 10 | 100 |
| Φ12*45*d12*100L | 12 | 45 | 12 | 100 |
| Φ14*45*d14*100L | 14 | 45 | 14 | 100 |
| Φ16*45*d16*100L | 16 | 45 | 16 | 100 |
| Φ18*45*d18*100L | 18 | 45 | 18 | 100 |
| Φ20*45*d20*100L | 20 | 45 | 20 | 100 |
Applications:
BWIN flat milling cutter is a professional tool used for square end flat milling cutters. This type of milling cutter is made of hard alloy material and is famous for its high hardness and wear resistance, making it very suitable for industrial use. It has a total length of 100 millimeters, 2 grooves, and a cutting depth of 3 millimeters. It has a range of models from D1 to D20 to choose from, and can be customized to meet your specific needs. The minimum order quantity for BWIN flat end milling cutters is 10 pieces per box, and the price is negotiable. It provides OEM and ODM services to meet your needs. It is also known for its fast delivery, which can be delivered within 6-14 days. With its high-quality materials and reliable performance, BWIN flat end milling cutters are the perfect choice to meet your industrial needs.
Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.
Advantage
BWIN Precision Tools Co., Ltd. was established in 2014, specializing in the technical development and product production of hard alloy cutting tools. It has introduced high-precision tool grinding centers from Switzerland and Germany. Produce integral hard alloy cutting tools for milling and metal processing, and can undertake the design and manufacturing of non-standard cutting tools. Our company uses brands such as "Kenna" and "Sumitomo" as raw materials, as well as domestic hard alloy rods. We use Swiss precision measuring tools and tool detectors to strictly control the production process to ensure the quality of the tools.
Our company has considerable technical strength, strong production capacity, scientific management, and the principle of "survival by quality, development by reputation". We constantly strive to provide customers with better products.
FAQ:
Q1. The surface of the workpiece is glossy, but the unevenness is large
Solution:
(1) Reduce the amount of feed.
(2) Low blade count tools change to high blade count tools to improve surface smoothness.
Q2. The chips are short and thin, but there are sticky chips
Solution:
(1) Increase cutting speed.
(2) Change to wet type (use Cutting fluid) and use it with vortex tube gun to reduce the tool temperature and avoid overheating of the tool.
(3) Perform minor rounding and passivation treatment.
(4) Change from reverse milling to forward milling.
(5) Increase the feed rate or require cutting allowance.
Q3. There are transverse cuts
Solution:
(1) Perform minor rounding and passivation treatment.
(2) Use water-insoluble Cutting fluid.
(3) Change from forward milling to reverse milling.
