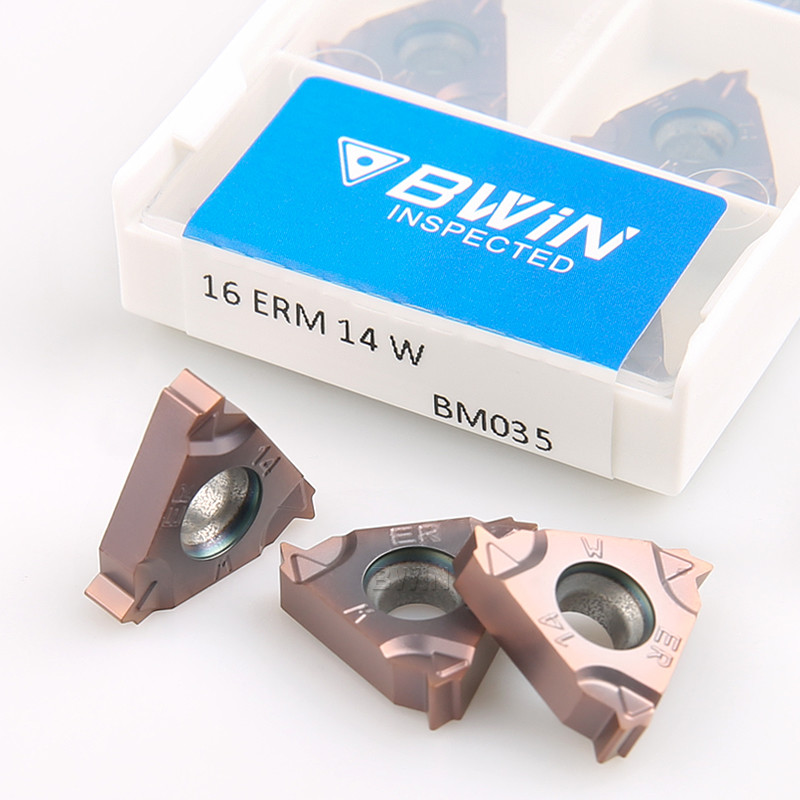

55 Degree Internally External Threading Insert 16ERM 16IRM 14W 11W Thread Turning Tools
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | 16ERM 14W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | 55° Internally External Thread Insert | Material: | Threading Turning Tools |
|---|---|---|---|
| Workpiece: | Stainless Steel | Usage: | Threading |
| Color: | Fuchsia | Coating: | PVD |
| Hardness: | HRC40-HRC60 | Feature: | Strong Impact Resistance |
| Application: | Threading Cutting | Package: | 10pcs/Box |
| High Light: | PVD Coating Threading Insert,16ERM Thread Turning Tools,16IRM Thread Turning Tools |
||
Product Description
55 ° Internally External Thread Insert 16ERM 16IRM 14W 11W Turning Tools
Quick Detail:
- High toughness
-
Low cutting resistance
-
High durability
-
Sharp and durable
-
High production efficiency
Description:
-
The threading insert is made of fine particle original powder, imported material, high hardness and precision. Compared with the traditional CVD coating of steel parts, the new coating process can give the blade more comprehensive strength and wear resistance; The unique chip breaking groove is designed to remove chips smoothly. The chip breaking groove is not easy to get stuck after forming iron chips, and the cutting is smooth and not easy to stick to the tool, thus improving the service life of the tool.
Specifications:
| Brand | BWIN |
| Model | 16ERM 14W/16IRM 11W/11ERM 14W/11IRM 11W |
| Color | Fuchsia Coating |
| Workpiece | Stainless steel |
| Type | Carbide Threaded Insert |
| Material | Tungsten Carbide Threading Insert |
| Processing Type | Medium Cutting |
| Feature | High toughness |
| Low cutting resistance | |
| High durability | |
| Sharp and durable | |
| High production efficiency | |
| Standard | ISO |
| Quantity | 10pcs/box |
| Weight | 0.015kg |
| Package | Plastic Box |
| Customized Support | OEM, ODM |
Lead Time:
| antity(pieces) | 1 - 3000 | >3000 |
| Lead time (days) | 7 | To be negotiated |
Notice:
- The carbide threading insert shall not be collided or dropped on the ground and must be handled with care.
- Before installing the carbide threading insert, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
- After installation, it is necessary to confirm whether the central hole of the carbide threading insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
- When using, do not exceed the specified high speed
- When the ccarbide threading insert is not used, hang the blade vertically on the dry shelf.
Applications:
Our carbide threading insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
1. Rear cutter face wear: (This is a common practical form)
Influence: the workpiece size gradually changes or the surface light intensity decreases
Cause: The linear speed is too high, reaching the service life of the tool
Measures: Adjust the processing parameters, such as reducing the linear speed and using a blade with higher wear resistance
2. Blade breakage: (bad actual effect form)
Effect: sudden change of workpiece size or surface smoothness, resulting in burrs on the spark surface
Cause: Improper parameter setting, improper tool face material selection, poor workpiece rigidity, unstable blade clamping Measures: check whether the parameter setting is reasonable, and select the corresponding tool according to the workpiece material
3. Serious fracture: (very bad actual effect form)
Effect: sudden and unexpected occurrence, resulting in scrapping of tool handle materials or defective and scrapped workpieces
Cause: The processing parameters are set incorrectly, and the vibrating tool workpiece or blade is not installed in place
Measures: set reasonable parameters, reduce the feed rate and chip, select the corresponding processing blade, and strengthen the rigidity of the workpiece and blade
4. Chips:
Effect: the size of the workpiece is inconsistent, the surface finish is poor, and the workpiece surface is attached with fluff or burrs. Cause: the cutting speed is too low, the feed is too low, and the blade is not sharp enough
Measures: improve the cutting speed, and use blades with higher sharpness for feed rate
