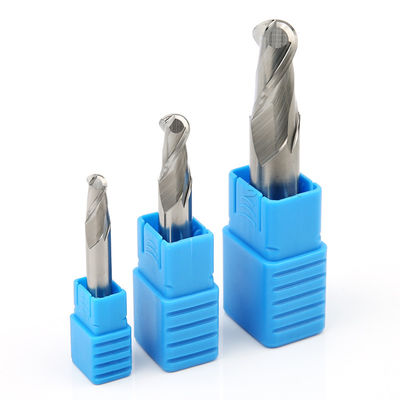

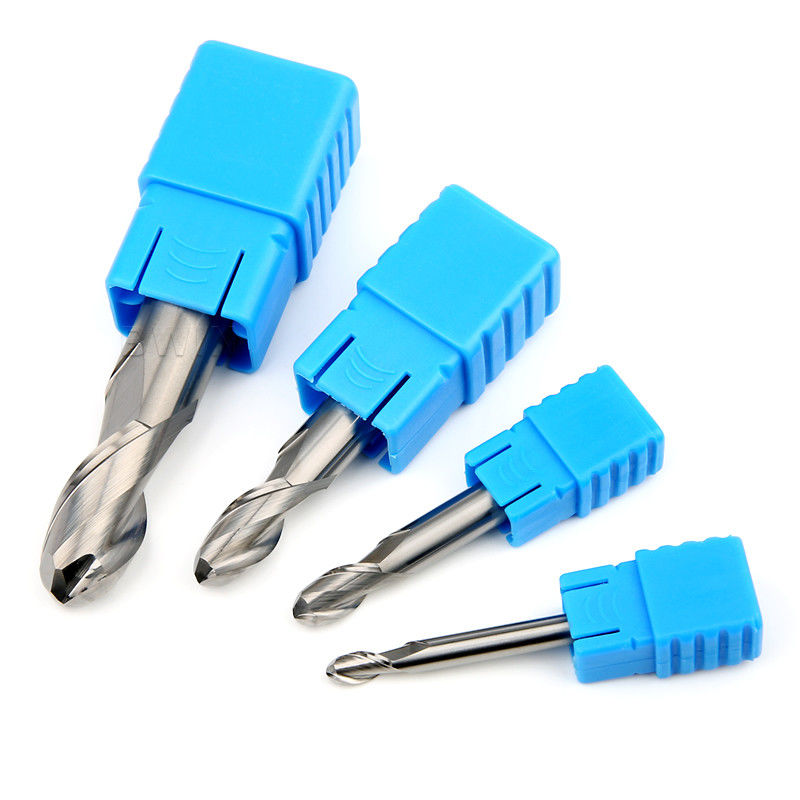

HRC45 Aluminum 2 Flutes Carbide Ball Nose End Mill High Finish Milling Cutter
Product Details:
Place of Origin: | China |
Brand Name: | BWIN |
Model Number: | R2*8*d4*50L-2F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs/box |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic box |
Delivery Time: | 7 work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1-10000pcs 7days |
Detail Information |
|||
Product Name: | HRC45 2F Ball Nose End Mills For Alu | Model: | R0.5~R10 Ballnose Endmill |
---|---|---|---|
Material: | Carbide Ballnose Milling Cutters | Workpiece: | Cast Iron, Alloy Steel, Carbon Steel, Etc |
Coating: | AlTiN | HRC: | HRC45 |
Feature: | High Stability | Application: | CNC Milling Tools |
Package: | 1pcs/Plastic Box | Delivery Time: | 6-14 Days |
Highlight: | Carbide Ball Nose End Mill,High Finish Ball Nose End Mill,Aluminum Ball Nose End Mill |
Product Description
Description
The HRC45 2F aluminum ball nose milling cutter is made of brand new ultra-fine particle bar material, which has high rigidity and wear resistance, providing a strong guarantee for the tool's service life; Adopting high-density coating technology, excellent wear resistance and effective thermal insulation to ensure the ultra-long service life of the cutting tools; The large core diameter design is fast and stable, with extremely sharp edges, greatly enhancing the rigidity and seismic resistance of the cutting tool; Multiple chip removal groove design, precision grinding spiral groove, passivation treatment effectively avoid the risk of sticking and cutting, and improve production efficiency; The universal rounded blade handle design is convenient to use.
Carbide material introdution
Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
Details |
Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
Coating Classifying and Advantage | |||||
Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
Characteristic
|
Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
Color | Black | Bronze | Bronze and gold | Blue | |
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
Most suitable for carbide cutting tools, turning insert |
Feature
- Alloy material
- Good resilience
- High smoothness
- Smooth cutting
- Stable processing
Applications of carbide end mill
Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, aluminum alloy, copper alloy, plastic, wood, magnesium alloy, zinc alloy, aluminum parts, etc
Product specifications of carbide end mill
Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
R0.5*2*d4*50L | 0.5 | 2 | 4 | 50 |
R0.75*3*d4*50L | 0.75 | 3 | 4 | 50 |
R1*4*d4*50L | 1 | 4 | 4 | 50 |
R1.25*5*d4*50L | 1.25 | 5 | 4 | 50 |
R1.5*6*d4*50L | 1.5 | 6 | 4 | 50 |
R1.75*7*d4*50L | 1.75 | 7 | 4 | 50 |
R2*8*d4*50L | 2 | 8 | 4 | 50 |
R2.5*10*d5*50L | 2.5 | 10 | 5 | 50 |
R3*12*d6*50L | 3 | 12 | 6 | 50 |
R4*16*d8*60L | 4 | 16 | 8 | 60 |
R5*20*d10*75L | 5 | 20 | 10 | 75 |
R6*24*d12*100L | 6 | 24 | 12 | 100 |
R7*28*d14*150L | 7 | 28 | 14 | 150 |
R8*32*d16*100L | 8 | 32 | 16 | 100 |
R9*36*d18*100L | 9 | 36 | 18 | 100 |
R10*40*d20*100L | 10 | 40 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
Instructions of carbide end mill
1. Handle with care to avoid impact damage.
2. When loading and unloading milling cutters, it is advisable to use a cloth to protect them from injury to hands or damage to the cutting edge due to falling
3. During milling, the milling cutter should be fully separated from the working object before starting the machine to avoid damaging the cutter due to impact on the working object
4. The distance between the cutting edge of the milling cutter and the collet should be as short as possible to reduce the vibration of the milling cutter. When selecting the length of the cutting tool, it should be avoided to be too long
Advantage
1. Source manufacturer
2. Imported grinding machines and testing equipment
3. Professional technical team
4. Intelligent CNC workshop
5. Complete specifications and sufficient supply of goods
