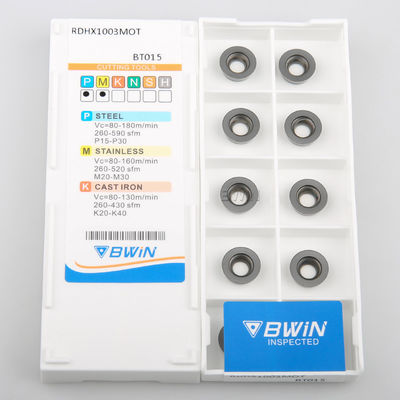

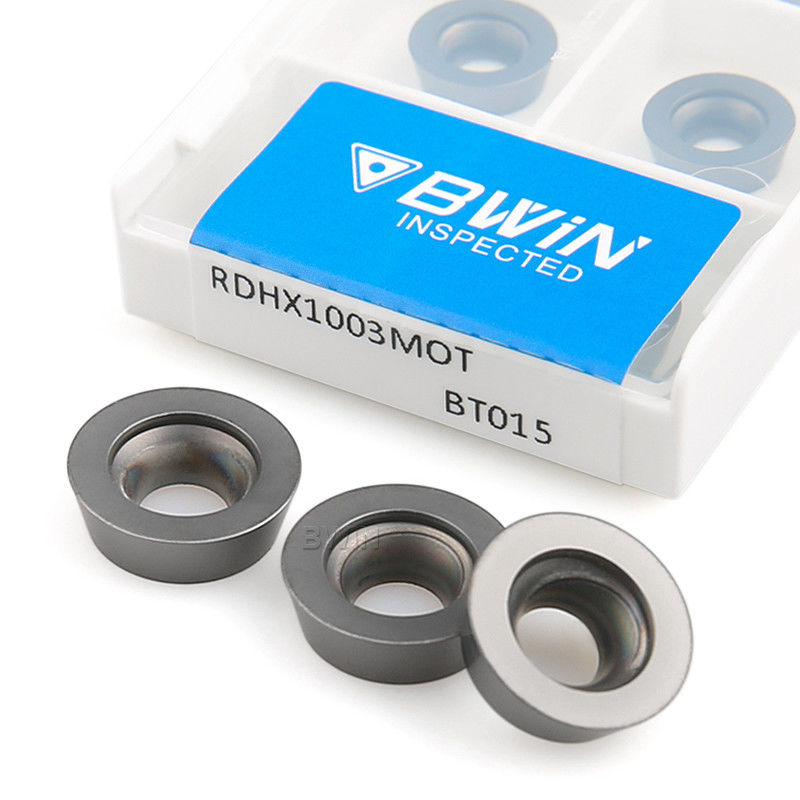

Rdhx 1003 12t3 Mot Face Milling Cutter Insert Rounding Cast Iron
Product Details:
| Place of Origin: | China |
| Brand Name: | BWIN |
| Model Number: | Rdhx12t3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs/box |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1-10000pcs 7days |
|
Detail Information |
|||
| Product Name: | Custom Rdhx Carbide Face Milling Cutter Insert | Material: | Tungsten Face Milling Cutter Insert |
|---|---|---|---|
| Workpiece: | Steel/Cast Iron | Usage: | Milling Machine |
| Color: | Black | Coating: | PVD CVD |
| Hardness: | HRC40-60 | Feature: | Resistance To Deformation |
| Application: | Lathe Tool | Package: | 10pcs/Box |
| High Light: | Milling Cutter Insert Rdhx 1003,Milling Cutter Insert Rounding Cast Iron,Face Mill Insert Rdhx 1003 |
||
Product Description
Custom Rdhx 1003 12t3 Mot Carbide Face Milling Cutter Insert Rounding Cnc Tool Cast Iron
Quick Detail:
- Excellent substrate
- Wear resistant and durable
- Sharp and durable
- Smooth cutting
- Good process performance
- Low friction coefficient
Description:
- RDHX milling carbide insert is made of high-quality tungsten steel alloy, which is wear-resistant and durable overall, with smooth and polished surface and effective corrosion resistance; Unique coating process, fine and smooth without drip marks, the coating is more wear-resistant, and the processing is more stable; High edge strength, low surface friction, low cutting resistance, high temperature resistance, thermal shock resistance, oxidation resistance.
Specifications:
| Brand | BWIN |
| Model | RDHX1003MOT RDHX12T3MOT |
| Color | Black |
| Workpiece | Steel/Cast iron |
| Type | CNC Milling Tool |
| Material | Tungsten Face Milling Insert |
| Processing Type | Medium Cutting |
| Feature | Excellent substrate |
| Wear resistant and durable | |
| Sharp and durable | |
| Smooth cutting | |
|
Good process performance |
|
| Standard | ISO |
| Quantity | 10pcs/box |
| Weight | 0.015kg |
| Package | Plastic Box |
| Customized Support | OEM, ODM |
Lead Time:
| antity(pieces) | 1 - 3000 | >3000 |
| Lead time (days) | 7 | To be negotiated |
Notice:
- The milling carbide insert shall not be collided or dropped on the ground and must be handled with care.
- Before installing the milling carbide insert, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
- After installation, it is necessary to confirm whether the central hole of the milling carbide insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
- When using, do not exceed the specified high speed
- When the milling carbide insert is not used, hang the blade vertically on the dry shelf.
Applications:
Our milling carbide insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:
FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
